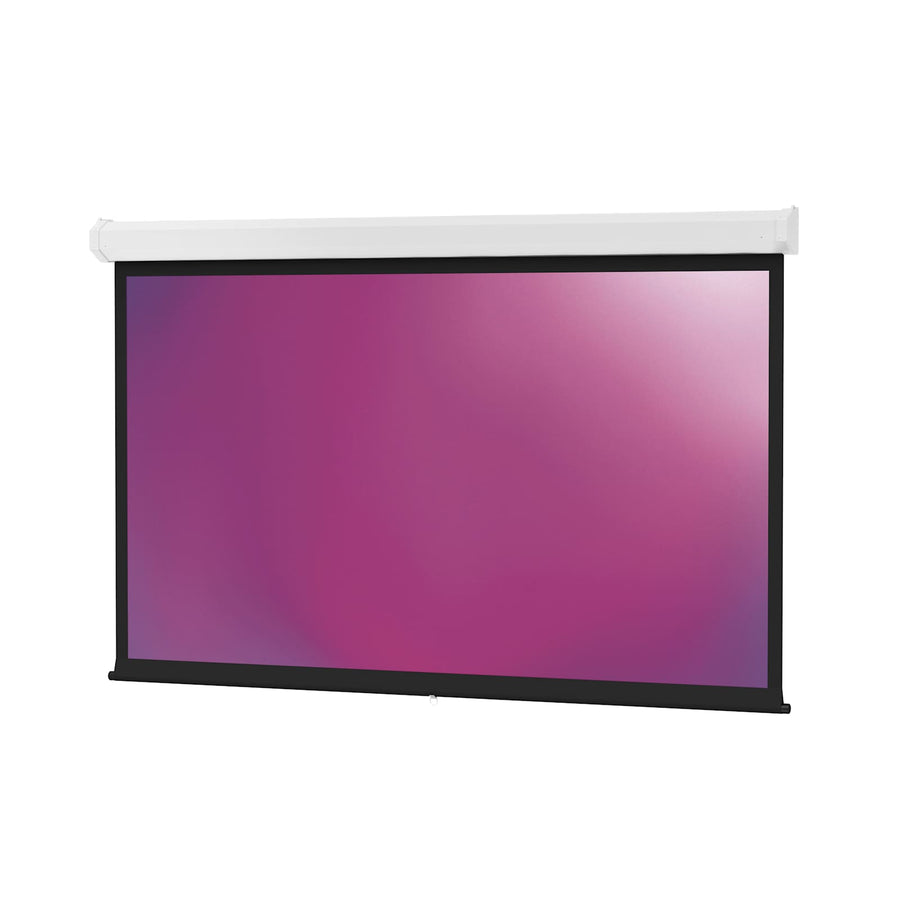

Da-Lite Model C, 78" x 139" with High Contrast Matte White - 93230
Manual 159" diagonal projection screen for ceiling or wall mounting with High Contrast Matte White surface
The Da-Lite Model C 93230 is a manual projection screen designed for larger rooms requiring a 78" x 139" surface. This Model C series unit features a High Contrast Matte White non-tensioned surface, optimized for front projection in HDTV (16:9) formats. For smooth operation, the assembly utilizes heavy-duty springs combined with nylon bushings and permanently lubricated steel ball bearings. This specific SKU is a manual screen and does not include the Controlled Screen Return (CSR) feature found in the CSR version of the Model C. For installation, the screen can be ceiling or wall mounted. Optional floating mount brackets (such as 77027 or 77028) can be used to allow for left or right alignment with wall or ceiling studs. This product is TAA compliant and manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Screen Diagonal | 159 in (403.9 cm) |
| Screen Height | 78 in (198.1 cm) |
| Shipping Weight | 69 lbs (31.3 kg) |
| Size | 78" x 139" or 159" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Manual |
| Surface | High Contrast Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it

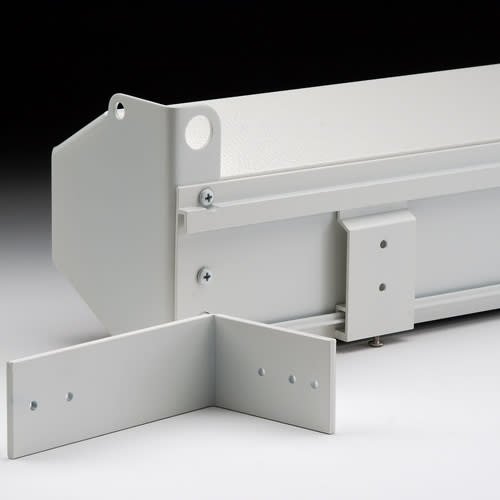

Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Ceiling Trim Kit - 96384
96384$332.80
Da-Lite Pull Rod - 74689
74689$14.40
Da-Lite Mounting and Extension Brackets White No. 23 Brackets
40933$56.00
Da-Lite Mounting and Extension Brackets White No. 6 Brackets
40932$21.60
Da-Lite Mounting and Extension Brackets White No. 11 Brackets
40957$44.80

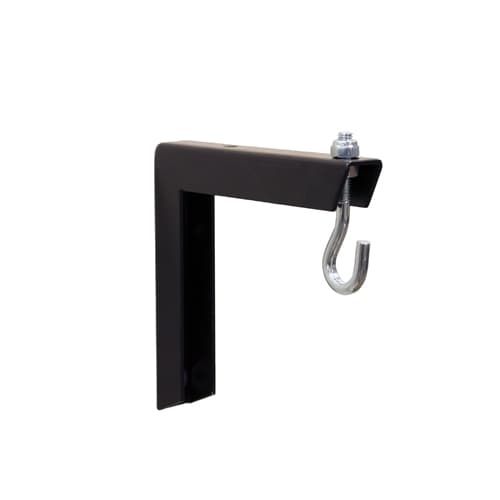

Da-Lite Mounting and Extension Brackets Black No. 6 Brackets
98035$21.60
Da-Lite Mounting and Extension Brackets Black No. 11 Brackets
98036$44.80
Da-Lite Mounting and Extension Brackets Black No. 23 Brackets
98037$56.00
Questions about this part
Will this screen fit a 16:9 HDTV aspect ratio?
Yes, this 93230 model features a 16:9 HDTV screen format with a 78" x 139" dimension.
What is required to mount this screen to a stud?
You can use optional floating mount brackets, such as the Da-Lite 77027 or 77028, which allow the installer to align the screen left or right with the studs.
Does this model include the Controlled Screen Return feature?
No, this manual Model C SKU does not feature Controlled Screen Return. For quiet and smooth return to the case, you must select a Model C with CSR.
Is this screen suitable for front projection?
Yes, this model is designed specifically for front projection applications using a High Contrast Matte White surface.
Can I install this on a wall or just the ceiling?
The Model C is designed for both ceiling and wall applications.
