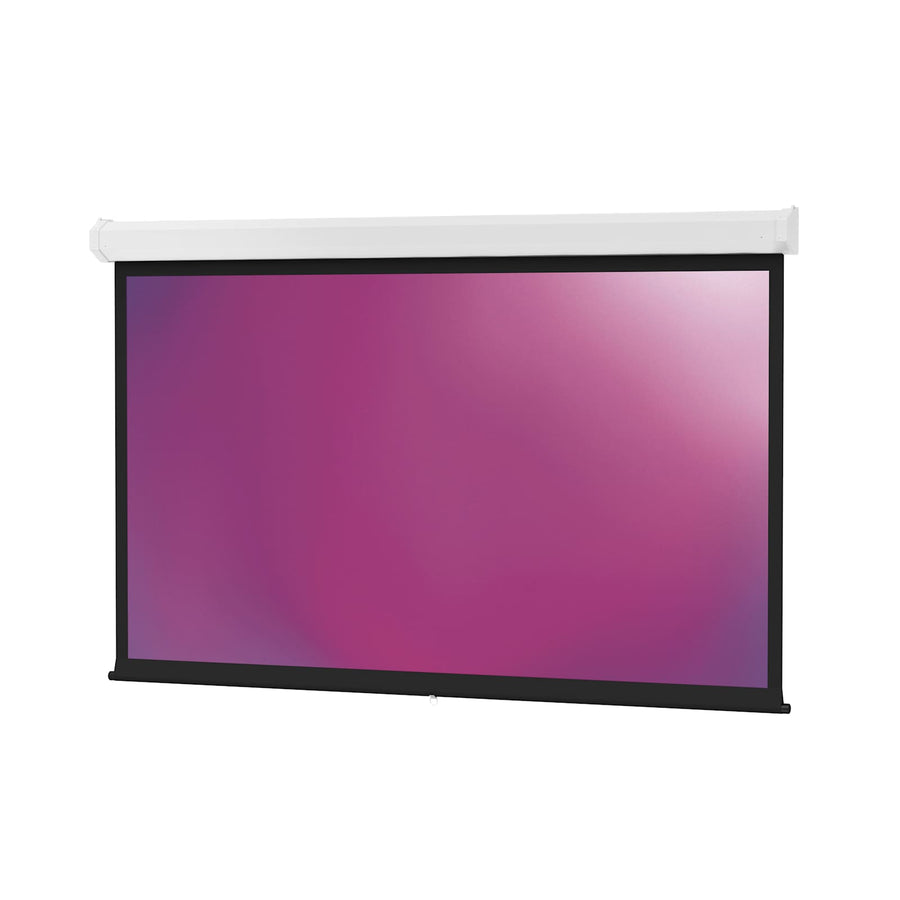

Da-Lite Model C, 69" x 110" with Matte White - 36445
Manual projection screen with Matte White surface, 69" x 110" (130" diagonal) for front projection
The Da-Lite Model C 36445 is a manual projection screen designed for larger rooms requiring reliable front projection. This 69" x 110" (130" diagonal) screen utilizes a Wide 16:10 aspect ratio and features a non-tensioned Matte White surface for standard resolution viewing. For smooth and consistent operation, the housing incorporates heavy-duty spring assembly combined with nylon bushings and permanently lubricated steel ball bearings. This specific model is designed for either wall or ceiling mounting. Unlike the Model C with CSR, this version does not include Controlled Screen Return. Installers can choose to align optional floating mount brackets to the left or right of the stud for customized installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Screen Diagonal | 130 in (330.2 cm) |
| Screen Height | 69 in (175.3 cm) |
| Shipping Weight | 62 lbs (28.1 kg) |
| Size | 69" x 110" or 130" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Manual |
| Surface | Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Pull Rod - 74689
74689$14.40
Da-Lite Ceiling Trim Kit - 96383
96383$308.00
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Mounting and Extension Brackets White No. 23 Brackets
40933$56.00
Da-Lite Mounting and Extension Brackets White No. 6 Brackets
40932$21.60
Da-Lite Mounting and Extension Brackets White No. 11 Brackets
40957$44.80
Da-Lite Mounting and Extension Brackets Black No. 6 Brackets
98035$21.60
Da-Lite Mounting and Extension Brackets Black No. 11 Brackets
98036$44.80
Da-Lite Mounting and Extension Brackets Black No. 23 Brackets
98037$56.00
Questions about this part
Will the Da-Lite 36445 fit my projection setup?
This Model C screen is designed for front projection using a 16:10 Wide aspect ratio. The surface is a non-tensioned Matte White suitable for standard resolution applications.
How do I mount the Model C 36445 in a ceiling or wall?
The 36445 can be used for both ceiling and wall applications. For stud installation, you can use optional floating mount brackets, which can be aligned to either the left or right side.
Does this screen include a pull cord?
Yes, this Model C screen comes equipped with a pull cord for manual operation.
What is the difference between the Model C and the Model C with CSR?
The standard Model C does not feature Controlled Screen Return. If your application requires a quiet and smooth return to the case, you should look for the Model C with CSR.
What documentation is available for installation and submittals?
Technical documentation includes the Model C Installation and Connections PDF, a Model C Specification Sheet, and 3D BIM models for planning.
