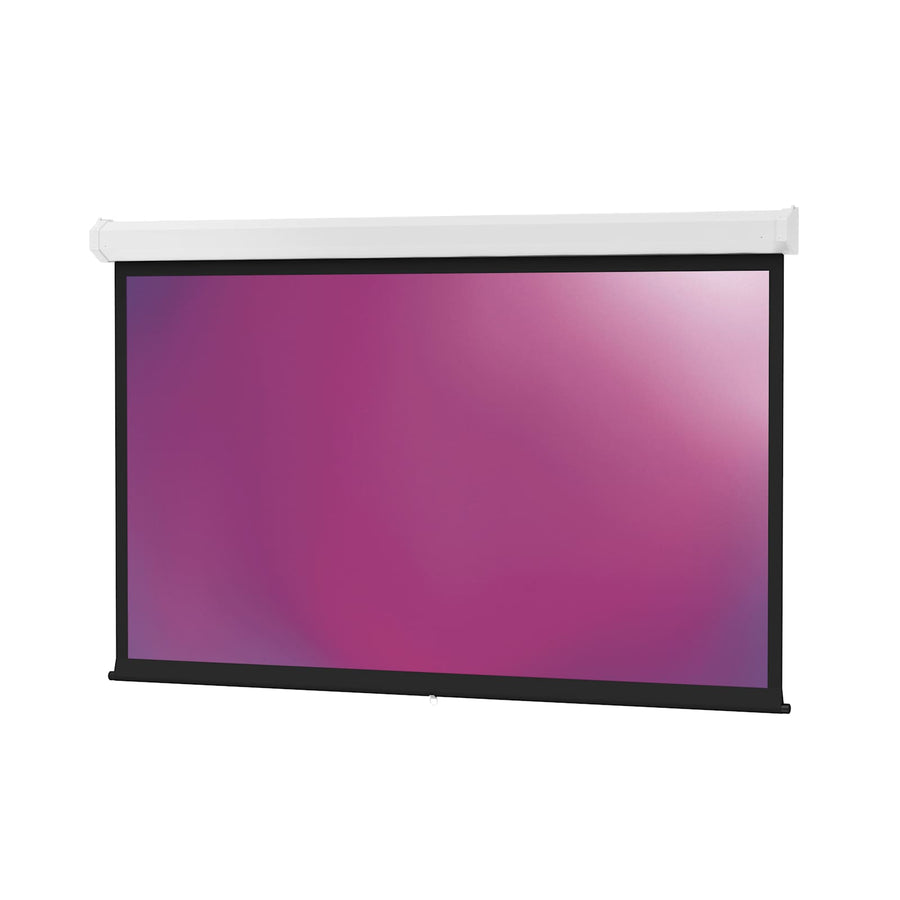

Da-Lite Model C, 60" x 80" with High Contrast Matte White - 93223
Manual 100-inch projection screen with 60" x 80" aspect ratio and High Contrast Matte White surface for front projection
The Da-Lite 93223 Model C is a manual projection screen designed for larger rooms that require reliable, everyday operation. Featuring a 60" x 80" format, this 100-inch diagonal screen is optimized for 4:3 video projection and utilizes a High Contrast Matte White, non-tensioned surface to deliver standard resolution imagery. This unit is engineered with heavy-duty spring assembly and permanently lubricated steel ball bearings combined with nylon bushings to ensure smooth manual deployment. This specific SKU is a manual screen; for applications requiring the Controlled Screen Return (CSR) feature for quieter operation, please look for the Model C with CSR. This TAA-compliant screen can be installed using either wall or ceiling mounting applications. For custom installation requirements, optional floating mount brackets can be aligned to either the left or right side of the case.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Screen Diagonal | 100 in (254 cm) |
| Screen Height | 60 in (152.4 cm) |
| Shipping Weight | 47 lbs (21.3 kg) |
| Size | 60" x 80" or 100" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Manual |
| Surface | High Contrast Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Ceiling Trim Kit - 96382
96382$280.80
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Pull Rod - 74689
74689$14.40
Da-Lite Mounting and Extension Brackets White No. 23 Brackets
40933$56.00
Da-Lite Mounting and Extension Brackets White No. 6 Brackets
40932$21.60
Da-Lite Mounting and Extension Brackets White No. 11 Brackets
40957$44.80
Da-Lite Mounting and Extension Brackets Black No. 6 Brackets
98035$21.60
Da-Lite Mounting and Extension Brackets Black No. 11 Brackets
98036$44.80
Da-Lite Mounting and Extension Brackets Black No. 23 Brackets
98037$56.00
Questions about this part
Will this screen work for my 4:3 video projection setup?
Yes, the 93223 is specifically configured with a 4:3 aspect ratio in a 60" x 80" format, making it suitable for standard video projection.
What is the difference between the Model C and the Model C with CSR?
The Model C features a heavy-duty spring assembly for smooth operation, while the Model C with CSR includes the Controlled Screen Return feature for quieter, more controlled retraction.
Can I mount this screen on a ceiling or a wall?
The Model C is designed for both ceiling and wall applications. You can further customize the install with Da-Lite floating mounting brackets (such as SKU 77027) which allow for left or right alignment.
Is this screen TAA compliant?
Yes, this product is TAA compliant and is manufactured in the US.
Which mounting hardware do I need for installation?
In addition to the screen, you may require Da-Lite accessories like the 96382 Ceiling Trim Kit or various Mounting and Extension Brackets depending on your specific stud spacing and orientation.
