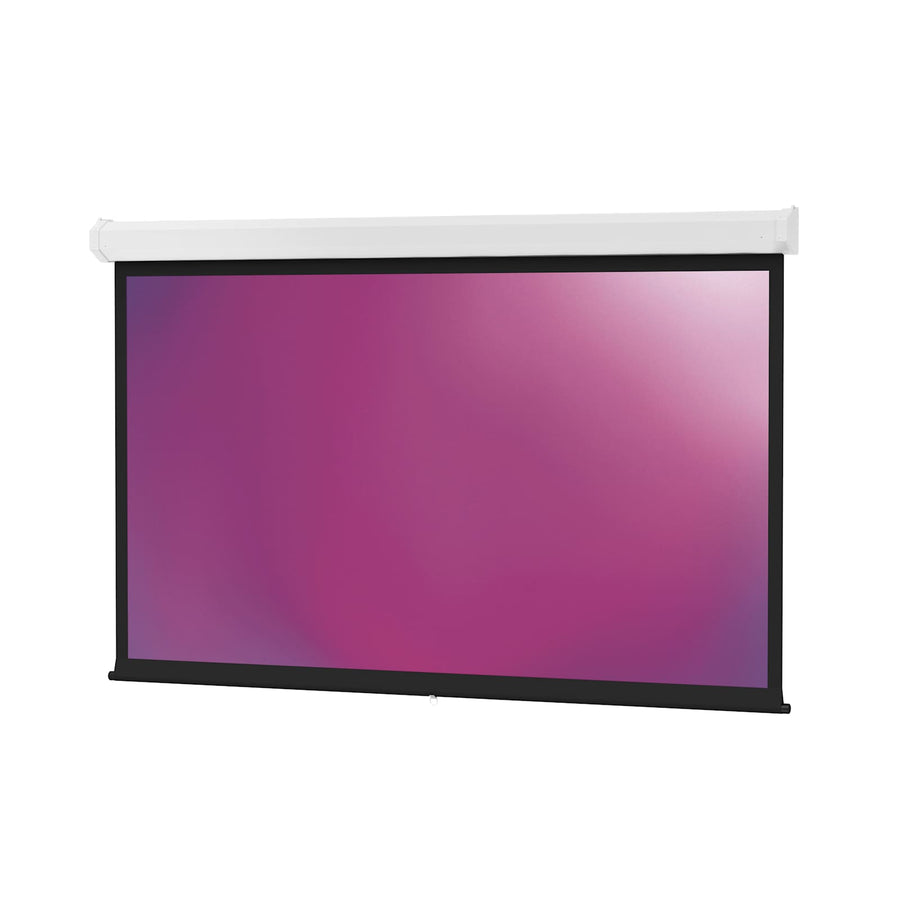

Da-Lite Model C, 58" x 104" with High Contrast Matte White - 93228
Manual 58" x 104" projection screen with High Contrast Matte White surface for ceiling or wall mounting
The Da-Lite Model C 93228 is a manual projection screen designed for larger rooms requiring a 58" x 104" (119" diagonal) format. This unit features a High Contrast Matte White non-tensioned surface, which is optimized for front projection applications. For smooth operation, the internal mechanism utilizes permanently lubricated steel ball bearings combined with nylon bushings and a heavy-duty spring assembly. This specific Model C configuration does not include the Controlled Screen Return (CSR) feature. For installation, the unit can be ceiling or wall mounted. Installers can utilize optional floating mount brackets (such as SKU 77027 or 77028) to allow for left or right alignment with wall or ceiling studs. This TAA compliant screen is finished in a standard white powder-coated material.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Screen Diagonal | 119 in (302.3 cm) |
| Screen Height | 58 in (147.3 cm) |
| Shipping Weight | 59 lbs (26.8 kg) |
| Size | 58" x 104" or 119" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Manual |
| Surface | High Contrast Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Ceiling Trim Kit - 96383
96383$308.00
Da-Lite Pull Rod - 74689
74689$14.40
Da-Lite Mounting and Extension Brackets White No. 23 Brackets
40933$56.00
Da-Lite Mounting and Extension Brackets White No. 6 Brackets
40932$21.60
Da-Lite Mounting and Extension Brackets White No. 11 Brackets
40957$44.80
Da-Lite Mounting and Extension Brackets Black No. 6 Brackets
98035$21.60
Da-Lite Mounting and Extension Brackets Black No. 11 Brackets
98036$44.80
Da-Lite Mounting and Extension Brackets Black No. 23 Brackets
98037$56.00
Questions about this part
Will this Da-Lite Model C screen fit my projection setup?
This 93228 model is a front projection screen with a 16:9 HDTV format, specifically sized at 58" x 104" with a 119" diagonal.
Can I mount this screen on a wall or a ceiling?
Yes, the Model C is designed for both ceiling and wall applications. You can use floating mount brackets (SKUs 77027 or 77028) to align the screen with your studs.
Does this Model C screen include the Controlled Screen Return?
No, this specific SKU is the standard Model C; if you require the Controlled Screen Return (CSR) for quieter operation, you must select a Model C with CSR.
What additional hardware is needed for installation?
Depending on your mounting surface, you may need Da-Lite floating mounting brackets or specific mounting/extension brackets like the No. 6, 11, or 23 variants.
What is the purpose of the included pull cord?
The pull cord is included to facilitate the manual operation of the spring-loaded screen housing.
