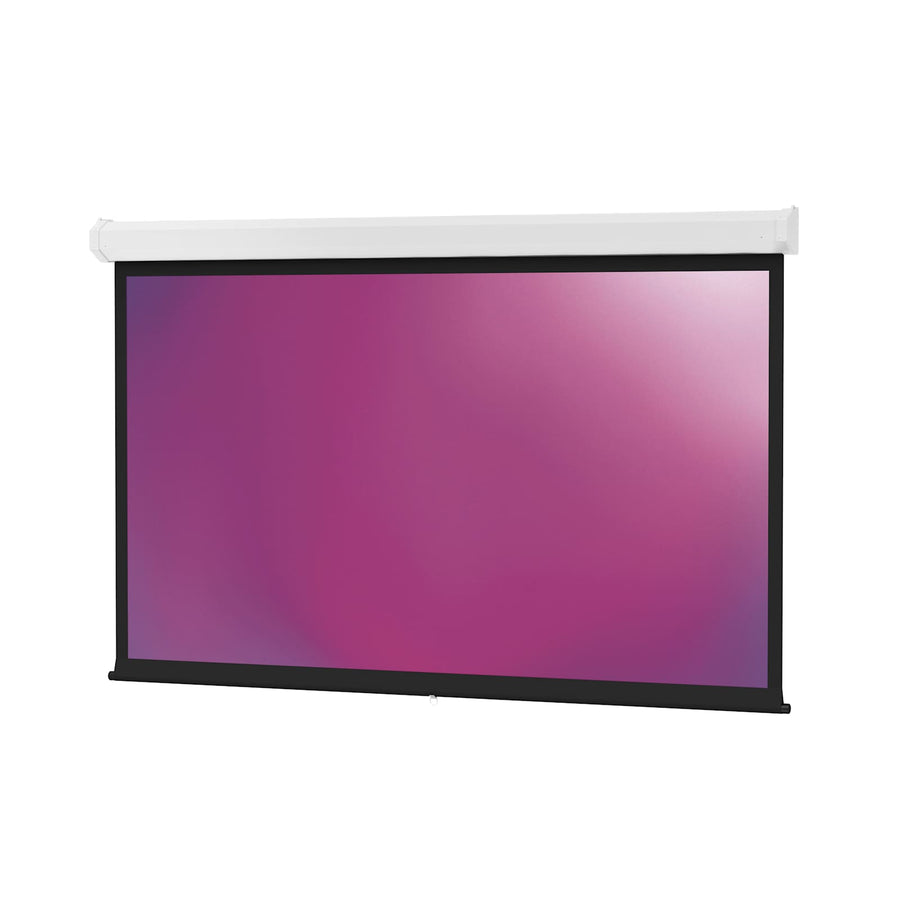

Da-Lite Model C, 57.5" x 92" with High Contrast Matte White - 70301
Manual 16:10 projection screen measuring 57.5" x 92" with a High Contrast Matte White surface for front projection applications
The Da-Lite 70301 is a manual projection screen designed for larger rooms requiring ceiling or wall mounting. This 109 in (276.9 cm) diagonal screen features a 16:10 wide aspect ratio and a High Contrast Matte White non-tensioned surface. It is built for smooth operation using a heavy-duty spring assembly paired with nylon bushings and permanently lubricated steel ball bearings. This specific Model C configuration does not include the Controlled Screen Return (CSR) feature found on other models in the series. For installation, optional floating mount brackets (SKU 77027 or 77028) allow for left or right alignment on wall or ceiling studs. This TAA compliant unit is intended for front projection in professional environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Screen Diagonal | 109 in (276.9 cm) |
| Screen Height | 57.5 in (146.1 cm) |
| Shipping Weight | 51 lbs (23.1 kg) |
| Size | 57.5" x 92" or 109" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Manual |
| Surface | High Contrast Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Ceiling Trim Kit - 96382
96382$280.80
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Pull Rod - 74689
74689$14.40
Da-Lite Mounting and Extension Brackets White No. 23 Brackets
40933$56.00
Da-Lite Mounting and Extension Brackets White No. 6 Brackets
40932$21.60
Da-Lite Mounting and Extension Brackets White No. 11 Brackets
40957$44.80
Da-Lite Mounting and Extension Brackets Black No. 6 Brackets
98035$21.60
Da-Lite Mounting and Extension Brackets Black No. 11 Brackets
98036$44.80
Da-Lite Mounting and Extension Brackets Black No. 23 Brackets
98037$56.00
Questions about this part
Does this screen support ceiling or wall installation?
Yes, the Model C 70301 is designed for both ceiling and wall applications. You can use optional floating mounting brackets, such as SKU 77027, to align the installation left or right on studs.
What is the difference between the Model C and the Model C with CSR?
The 70301 Model C relies on a heavy-duty spring assembly for manual operation but does not include the Controlled Screen Return (CSR) feature found on the CSR version.
What accessories are needed for installation?
Depending on your mounting requirements, you may need Da-Lite floating mounting brackets (SKU 77027 or 77028) or a ceiling trim kit (SKU 96382).
What type of projection does this surface require?
This screen is designed for front projection using a High Contrast Matte White non-tensioned surface.
Is this screen TAA compliant?
Yes, the Da-Lite 70301 is TAA compliant and is manufactured in the US.
