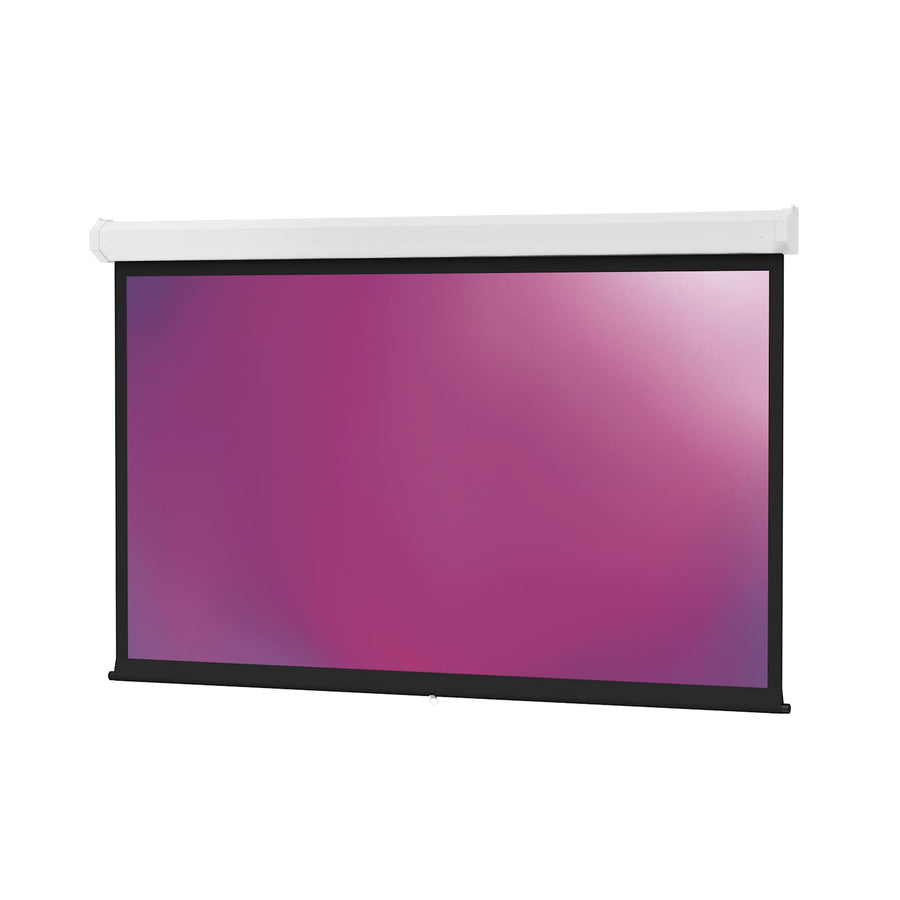

Da-Lite Model C, 54" x 96" with Matte White - 94364
Manual 110" diagonal projector screen with Matte White surface for ceiling or wall installation
The Da-Lite 94364 is a manual projection screen designed for front projection in larger rooms. This 54" x 96" model features a Matte White non-tensioned surface and is optimized for the HDTV (16:9) screen format. For smooth operation, the Model C utilizes heavy-duty spring assemblies combined with nylon bushings and permanently lubricated steel ball bearings. This unit is suitable for both ceiling and wall mounting applications. For installers requiring specific mounting configurations, optional floating mount brackets can be aligned to either the left or right side. This specific SKU is a manual version and does not include the Controlled Screen Return (CSR) feature found on the Model C with CSR. It is TAA compliant and manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Screen Diagonal | 110 in (279.4 cm) |
| Screen Height | 54 in (137.2 cm) |
| Shipping Weight | 51 lbs (23.1 kg) |
| Size | 54" x 96" or 110" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Manual |
| Surface | Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Ceiling Trim Kit - 96382
96382$280.80
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Pull Rod - 74689
74689$14.40
Da-Lite Mounting and Extension Brackets White No. 23 Brackets
40933$56.00
Da-Lite Mounting and Extension Brackets White No. 6 Brackets
40932$21.60
Da-Lite Mounting and Extension Brackets White No. 11 Brackets
40957$44.80
Da-Lite Mounting and Extension Brackets Black No. 6 Brackets
98035$21.60
Da-Lite Mounting and Extension Brackets Black No. 11 Brackets
98036$44.80
Da-Lite Mounting and Extension Brackets Black No. 23 Brackets
98037$56.00
Questions about this part
Can this screen be mounted on a ceiling or a wall?
Yes, the 94364 is designed for both ceiling and wall applications. You can use optional floating mount brackets to facilitate installation on studs.
What is the difference between this and the Model C with CSR?
This 94364 model is the manual version. The Model C with CSR includes a Controlled Screen Return feature for a quieter and smoother return to the case.
Does this screen include a pull cord for operation?
Yes, this model includes a pull cord for manual operation of the screen assembly.
Is this screen TAA compliant for government contracts?
Yes, the Da-Lite 94364 is TAA compliant and is of US origin.
What accessories are needed for installation?
Depending on your setup, you may need Da-Lite floating mounting brackets (such as part 77027) or specific ceiling trim kits like part 96382.
