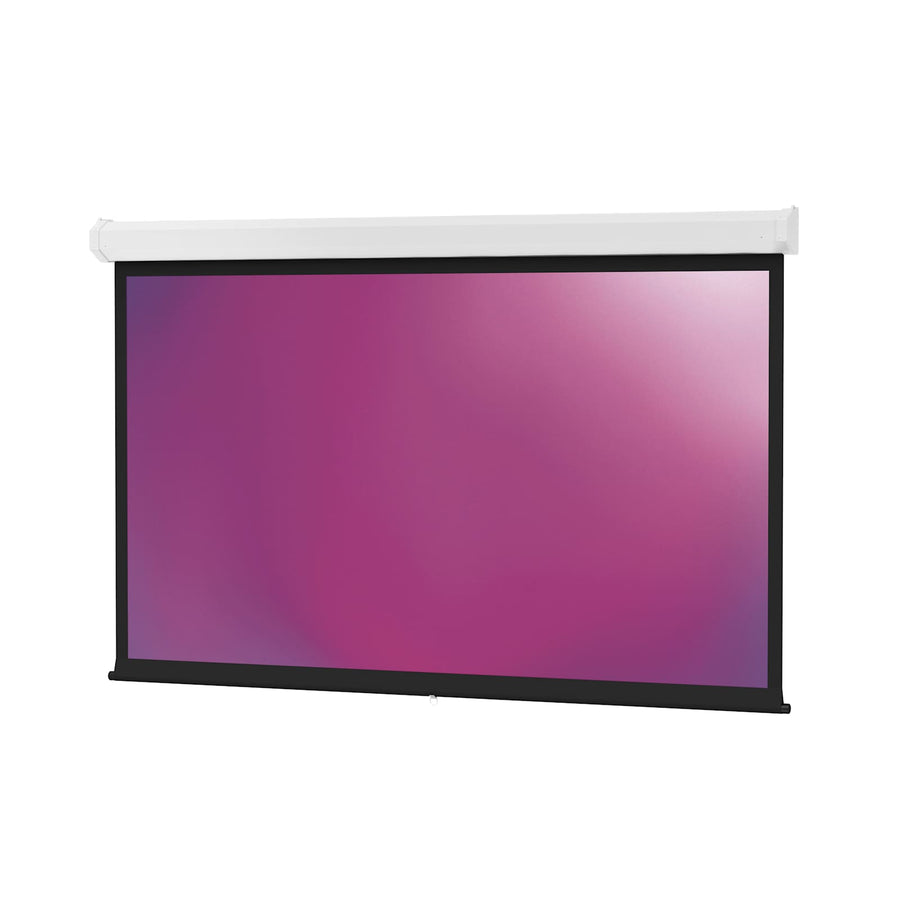

Da-Lite Model C, 54" x 96" with High Contrast Matte White - 94365
Manual 110" diagonal manual projection screen with High Contrast Matte White surface for front projection
The Da-Lite Model C 94365 is a manual projection screen designed for larger rooms where ceiling or wall mounting is required. This 54 x 96 inch (110 in diagonal) screen utilizes a High Contrast Matte White, non-tensioned surface, making it suitable for front projection applications in 16:9 HDTV formats. The mechanism features permanently lubricated steel ball bearings paired with nylon bushings and a heavy-duty spring assembly to ensure smooth operation during manual deployment. This specific model is TAA compliant and features a standard white powder-coated finish. For installations requiring a more controlled, quiet return to the case, the Model C is also available with the Controlled Screen Return (CSR) feature.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Screen Diagonal | 110 in (279.4 cm) |
| Screen Height | 54 in (137.2 cm) |
| Shipping Weight | 51 lbs (23.1 kg) |
| Size | 54" x 96" or 110" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Manual |
| Surface | High Contrast Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Ceiling Trim Kit - 96382
96382$280.80
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Pull Rod - 74689
74689$14.40
Da-Lite Mounting and Extension Brackets White No. 23 Brackets
40933$56.00
Da-Lite Mounting and Extension Brackets White No. 6 Brackets
40932$21.60
Da-Lite Mounting and Extension Brackets White No. 11 Brackets
40957$44.80
Da-Lite Mounting and Extension Brackets Black No. 6 Brackets
98035$21.60
Da-Lite Mounting and Extension Brackets Black No. 11 Brackets
98036$44.80
Da-Lite Mounting and Extension Brackets Black No. 23 Brackets
98037$56.00
Questions about this part
Will this screen fit my 16:9 display setup?
Yes, this Model C screen is configured with a 16:9 HDTV screen format and a 54 x 96 in surface size.
What is required for a wall or ceiling installation?
Optional floating mount brackets, such as the Da-Lite 77027, can be used for wall or ceiling stud installation and can be aligned left or right.
How does this model differ from the Model C with CSR?
The standard 94365 model uses a heavy-duty spring assembly for operation but does not include the Controlled Screen Return (CSR) feature for quiet return to the case.
What additional items are needed for installation?
Depending on your mounting requirement, you may need Da-Lite Mounting and Extension Brackets, such as the 40932 or 40933, or the Da-Lite 96382 Ceiling Trim Kit.
Is this screen suitable for front projection?
Yes, the High Contrast Matte White surface is specifically designed for front projection applications.
