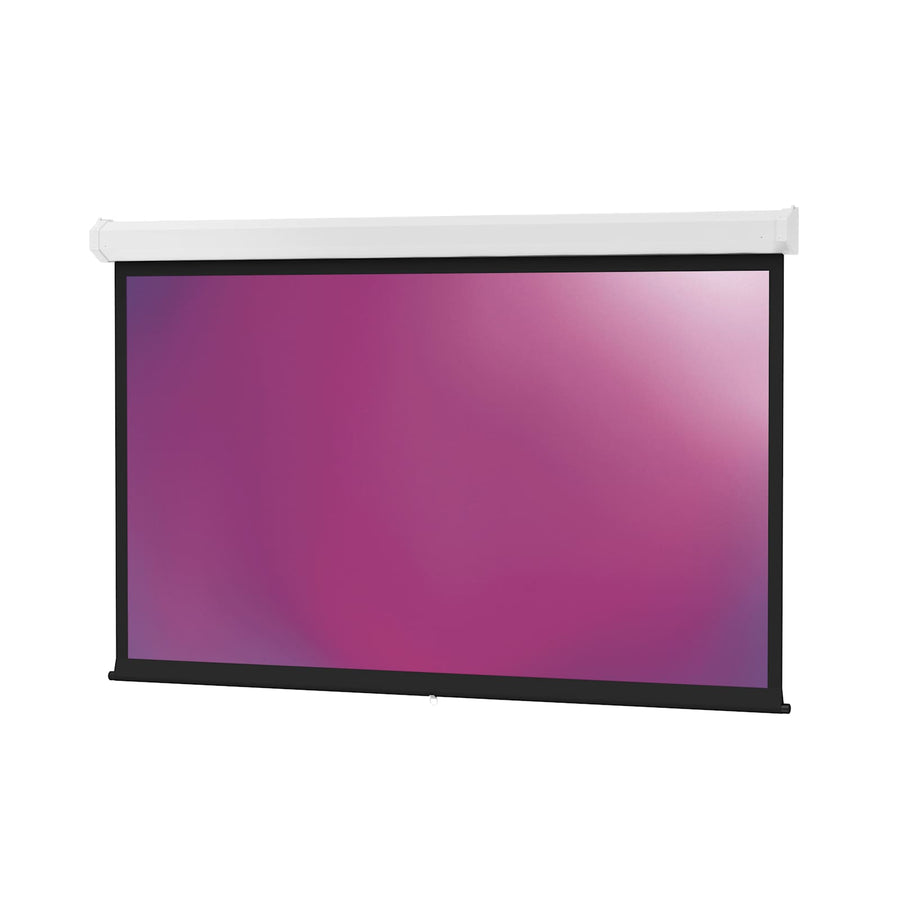

Da-Lite Model C, 50" x 67" with High Contrast Matte White - 93222
Manual 50" x 67" projection screen with High Contrast Matte White surface, designed for ceiling or wall mounting
The Da-Lite 93222 is a manual projection screen designed for larger rooms requiring a reliable, professional-grade viewing surface. This Model C series screen measures 50" x 67" with an 84" diagonal and is optimized for front projection in a 4:3 video format. It features a High Contrast Matte White non-tensioned surface, which provides standard resolution performance for various projection environments. For installation versatility, this unit can be ceiling or wall mounted using optional floating mount brackets that can be aligned to the left or right of the installation site. The mechanism utilizes permanently lubricated steel ball bearings combined with nylon bushings and a heavy-duty spring assembly to ensure smooth operation. This specific Model C SKU does not include the Controlled Screen Return (CSR) feature found in the CSR version of the Model C; it is intended for users who do not require a quiet, assisted return to the housing. The assembly is TAA compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Screen Diagonal | 84 in (213.4 cm) |
| Screen Height | 50 in (127 cm) |
| Shipping Weight | 31 lbs (14.1 kg) |
| Size | 50" x 67" or 84" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Manual |
| Surface | High Contrast Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Ceiling Trim Kit - 96382
96382$280.80
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Pull Rod - 74689
74689$14.40
Da-Lite Mounting and Extension Brackets White No. 23 Brackets
40933$56.00
Da-Lite Mounting and Extension Brackets White No. 6 Brackets
40932$21.60
Da-Lite Mounting and Extension Brackets White No. 11 Brackets
40957$44.80
Da-Lite Mounting and Extension Brackets Black No. 6 Brackets
98035$21.60
Da-Lite Mounting and Extension Brackets Black No. 11 Brackets
98036$44.80
Da-Lite Mounting and Extension Brackets Black No. 23 Brackets
98037$56.00
Questions about this part
Will this screen fit a 4:3 video format?
Yes, the 93222 is specifically designed for 4:3 video aspect ratios with a 50" x 67" surface area.
What mounting options are available for the Model C 93222?
The screen can be mounted on a ceiling or a wall. For stud installation, you can use Da-Lite floating mounting brackets (SKU 77027 or 77028).
Does this screen include the Controlled Screen Return (CSR) feature?
No, this specific Model C SKU relies on a heavy-duty spring assembly for operation and does not feature the Controlled Screen Return found on the CSR models.
Is the Da-Lite 93222 TAA compliant?
Yes, this product is TAA compliant and is manufactured in the US.
What is the difference between the standard Model C and the CSR model?
The standard Model C, like the 93222, uses a manual spring assembly, whereas the Model C with CSR is designed for a quieter and smoother return to the case.
