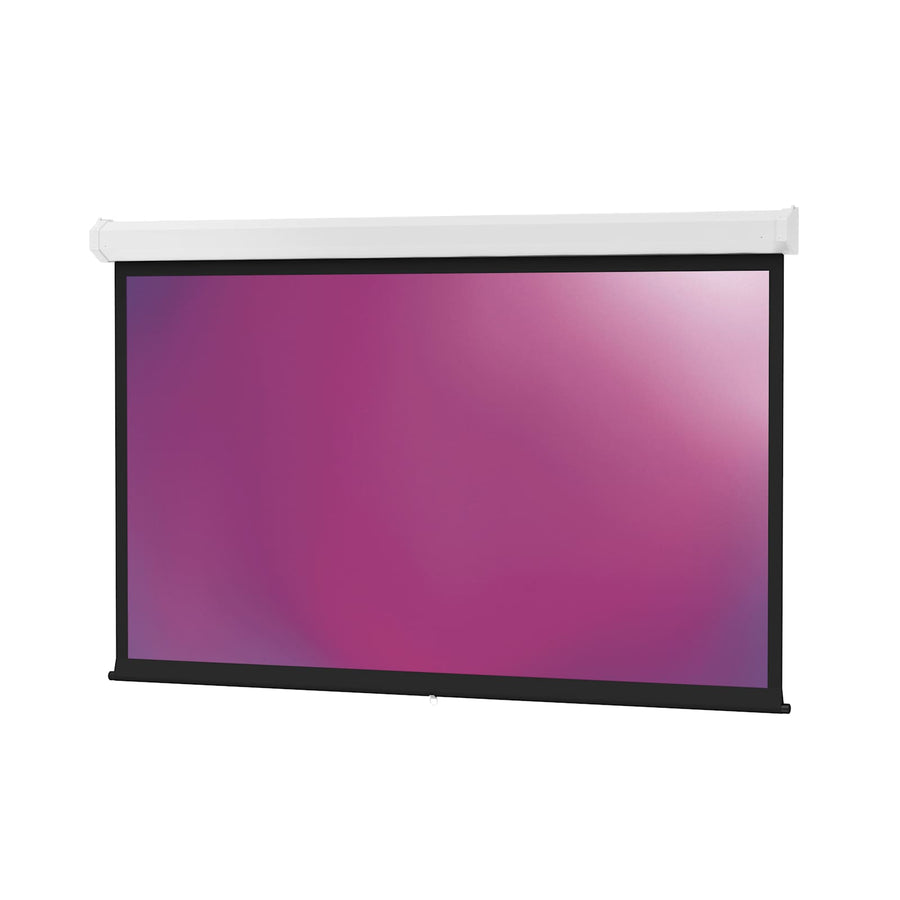

Da-Lite Model C, 45" x 80" with High Contrast Matte White - 93226
Manual 45" x 80" projection screen with High Contrast Matte White surface, designed for ceiling or wall installation
The Da-Lite 93226 Model C is a manual projection screen measuring 45" x 80" (92 in diagonal) designed for front projection applications in larger rooms. This screen features a High Contrast Matte White non-tensioned surface in a 16:9 HDTV format. It is engineered for smooth operation using permanently lubricated steel ball bearings paired with nylon bushings and a heavy-duty spring assembly. For installers requiring specific mounting configurations, Da-Lite offers optional floating mount brackets that can be aligned either left or right for wall or ceiling stud installation. This specific SKU is the standard version without the Controlled Screen Return (CSR) feature found in the Model C CSR series. This TAA compliant product is manufactured in the US and is available with a standard white powder-coated finish.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Screen Diagonal | 92 in (233.7 cm) |
| Screen Height | 45 in (114.3 cm) |
| Shipping Weight | 45 lbs (20.4 kg) |
| Size | 45" x 80" or 92" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Manual |
| Surface | High Contrast Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Ceiling Trim Kit - 96382
96382$280.80
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Pull Rod - 74689
74689$14.40
Da-Lite Mounting and Extension Brackets White No. 23 Brackets
40933$56.00
Da-Lite Mounting and Extension Brackets White No. 6 Brackets
40932$21.60
Da-Lite Mounting and Extension Brackets White No. 11 Brackets
40957$44.80
Da-Lite Mounting and Extension Brackets Black No. 6 Brackets
98035$21.60
Da-Lite Mounting and Extension Brackets Black No. 11 Brackets
98036$44.80
Da-Lite Mounting and Extension Brackets Black No. 23 Brackets
98037$56.00
Questions about this part
Will the Da-Lite 93226 fit a 16:9 HDTV setup?
Yes, this Model C screen is specifically designed with a 16:9 HDTV format to support standard high-definition wide-screen content.
What is the difference between the Model C and the Model C with CSR?
The 93226 is a standard manual model, whereas the Model C with CSR (Controlled Screen Return) includes a feature for a quiet and smooth return to the case.
What mounting accessories are required for installation?
You can use Da-Lite floating mounting brackets (SKU 77027 or 77028) and various mounting and extension brackets, such as No. 6 or No. 11, depending on your specific setup.
How is the screen surface maintained?
This model features a non-tensioned High Contrast Matte White surface designed for front projection applications.
Can I mount this screen on a ceiling or a wall?
The Model C is designed for both ceiling and wall applications, and the floating mount brackets allow for left or right alignment during stud installation.
