Da-Lite Model C, 43" x 57" with Matte White - 97213
Manual projection screen for 4:3 video, 43" x 57" dimensions with Matte White surface

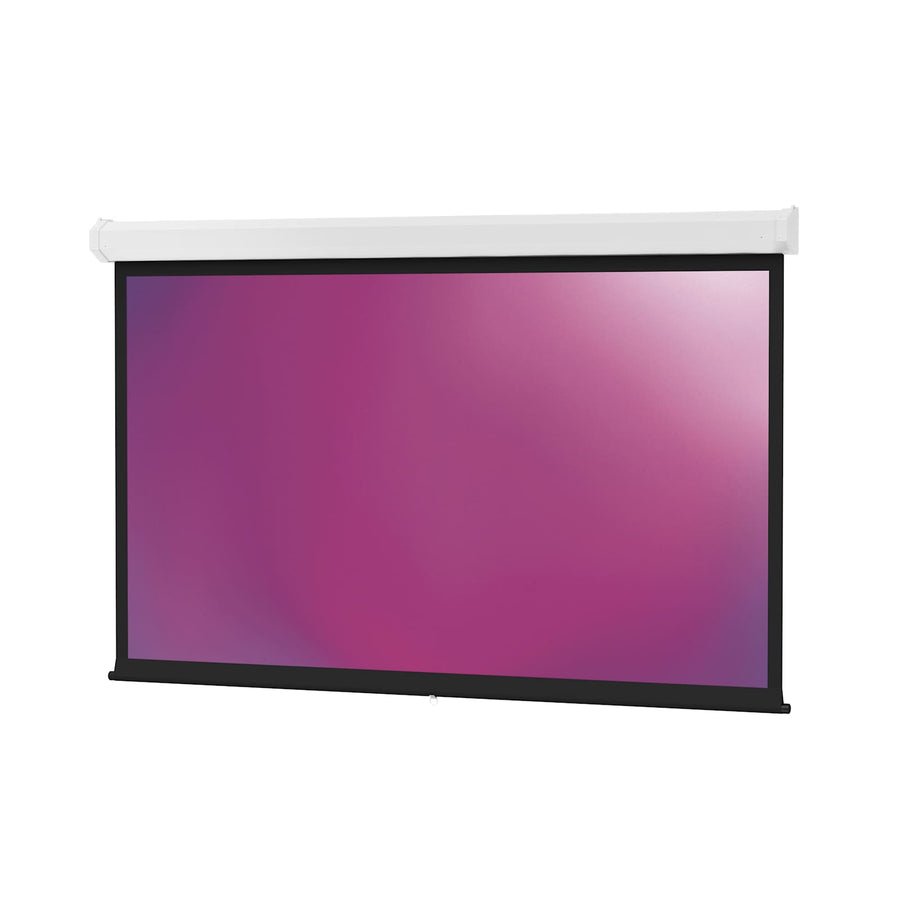

The Da-Lite 97213 is a manual projection screen designed for front projection in larger rooms. This Model C series unit features a 43" x 57" size, providing a 72 in (182.9 cm) diagonal viewing area. The screen uses a Matte White non-tensioned surface optimized for standard resolution video content in a 4:3 format. For smooth operation, the housing utilizes permanently lubricated steel ball bearings paired with nylon bushings and a heavy-duty spring assembly. This specific model is a manual version and does not include the Controlled Screen Return feature found in other Model C variants. Installation is versatile, as it can be ceiling or wall mounted. For professional submittals, installers can refer to the Model C Specification Sheet or the 3D BIM models provided in the technical resources.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Screen Diagonal | 72 in (182.9 cm) |
| Screen Height | 43 in (109.2 cm) |
| Shipping Weight | 23 lbs (10.4 kg) |
| Size | 43" x 57" or 72" diagonal |
| Application | CeilingWall |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Manual |
| Surface | Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Floating Mounting Bracket White
77027$106.40
Da-Lite Ceiling Trim Kit - 96382
96382$280.80
Da-Lite Floating Mounting Bracket Black
77028$106.40
Da-Lite Pull Rod - 74689
74689$14.40
Da-Lite Mounting and Extension Brackets White No. 23 Brackets
40933$56.00
Da-Lite Mounting and Extension Brackets White No. 6 Brackets
40932$21.60
Da-Lite Mounting and Extension Brackets White No. 11 Brackets
40957$44.80
Da-Lite Mounting and Extension Brackets Black No. 6 Brackets
98035$21.60
Da-Lite Mounting and Extension Brackets Black No. 11 Brackets
98036$44.80
Da-Lite Mounting and Extension Brackets Black No. 23 Brackets
98037$56.00
Questions about this part
Will the Da-Lite 97213 fit my video projection setup?
Yes, this screen is designed for front projection using a 4:3 video format on a Matte White surface.
Can I mount the 97213 on a wall or the ceiling?
The Model C series supports both wall and ceiling applications to suit your room configuration.
Does this screen include a pull cord?
Yes, this SKU comes equipped with a pull cord for manual operation.
Is the Da-Lite 97213 TAA compliant?
Yes, this product is TAA compliant and is manufactured in the US.
What is the difference between the 97213 and the Model C with CSR?
The 97213 is the standard manual version; the Model C with CSR includes a feature for a controlled, quiet screen return to the case.
