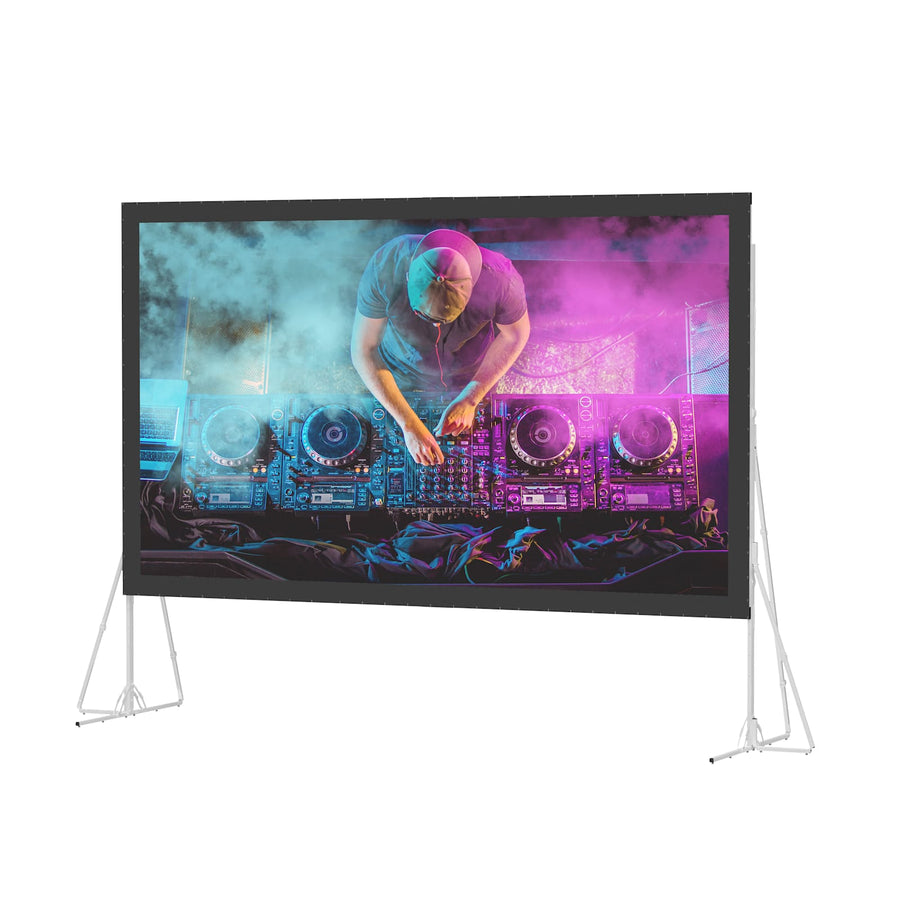

Da-Lite Heavy Duty Fast-Fold Deluxe Screen System, 90" x 160" with HD Progressive ReView 09 - 99814
90" x 160" portable rear projection screen system with HD Progressive ReView 0.9 surface and heavy-duty aluminum frame
The Da-Lite 99814 Heavy Duty Fast-Fold Deluxe Screen System is a portable rear projection solution engineered specifically for high-traffic rental and staging environments. This system utilizes a robust frame and leg assembly constructed from 3 ½” x 1 ¼” thick aluminum tubing to ensure durability during frequent transport and setup. The 90" x 160" (184" diagonal) screen features the HD Progressive ReView 0.9 surface, providing high-resolution imagery for large venue applications. To facilitate rapid deployment and teardown in professional settings, the frame is equipped with integrated easy-release latches. The surface includes a standard black-backed material to ensure superior image opacity and quality. This TAA compliant system is designed for efficiency, including a wheeled carrying case for mobility. For a more professional stage-front aesthetic, integrators can pair this unit with a Drapery Presentation Kit.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 184 in (467.4 cm) |
| Screen Height | 90 in (228.6 cm) |
| Shipping Weight | 170 lbs (77.1 kg) |
| Size | 90" x 160" or 184" diagonal |
| Application | Portable |
| Federal Ops Country of Origin | US |
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
All other specifications 5
| Screen Surface Features | High Resolution |
| Screen Type | Portable |
| Special Features | Large Venue |
| Surface | HD Progressive ReView 0.9 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 90" x 160" Gray Drapes - HD Dlx
36597GR$3,419.20
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 90" x 160" Black Drapes - HD Dlx
36597$3,419.20
Da-Lite Heavy Duty Fast-Fold Deluxe Repair Kit
36974$620.80
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 90" x 160" with Da-Tex - 99822
99822$2,093.60
Da-Lite Fast-Fold Skirt, 90" x 160" Gray Skirt
36780GR$1,556.80
Da-Lite Fast-Fold Skirt, 90" x 160" Black Skirt
36780$1,556.80
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 90" x 160" with HD Progressive ReView 0.9 - 99838
99838$2,093.60
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 90" x 160" with HD Rental - 34238
34238$1,364.00
Questions about this part
What is the purpose of the Heavy Duty Fast-Fold Deluxe series?
The Heavy Duty Fast-Fold Deluxe series is built for rental and staging environments, featuring a thicker 3 ½” x 1 ¼” aluminum frame for increased durability compared to standard models.
What surface is included with the 99814 SKU?
This specific model comes with the HD Progressive ReView 0.9 surface, which is designed for high-resolution rear projection.
Can I add decorative elements to this screen setup?
Yes, you can achieve a professional stage-front aesthetic by using the Da-Lite Drapery Presentation Kit, which is compatible with this system.
Is this screen TAA compliant?
Yes, the Da-Lite 99814 is TAA compliant and is manufactured in the US.
What accessories are available to customize the appearance of this screen?
You can add a skirt or a Drapery Presentation Kit in gray (SKU 36597GR) or black (SKU 36597) to complete the professional look.
