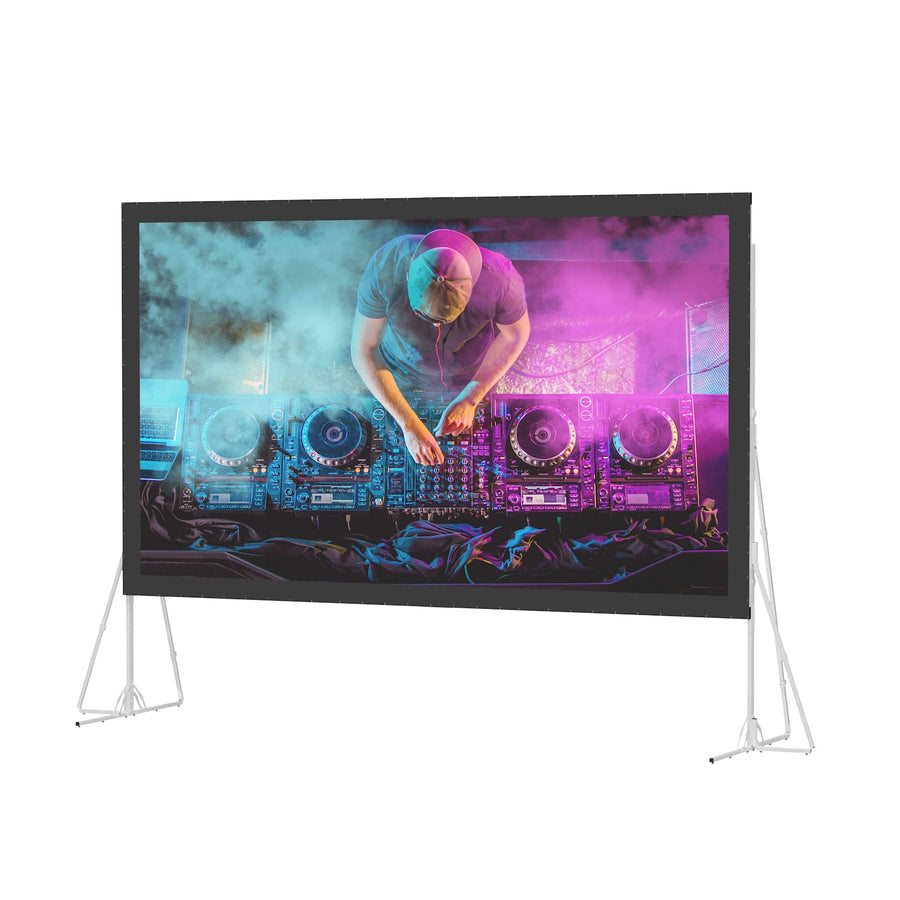

Da-Lite Heavy Duty Fast-Fold Deluxe Screen System, 162" x 288" with HD Progressive ReView 09 - 92154
Heavy Duty rear projection screen for large venue rental and staging, measuring 162" x 288" with HD Progressive ReView 0.9 surface
The Da-Lite 92154 is a Heavy Duty Fast-Fold® Deluxe Screen System designed specifically for the rigorous demands of rental and staging environments. This portable rear projection system utilizes a robust frame and legs constructed from 3 ½” x 1 ¼” thick aluminum tubing to ensure durability during frequent transport and assembly in large venues. The screen measures 162" x 288" (340" diagonal) and features an HD Progressive ReView 0.9 surface for high-resolution imagery. The frame includes easy release latches to facilitate efficient setup and teardown for installers. For professional stage aesthetics, this system is compatible with the Da-Lite Drapery Presentation Kit (SKU 36607 or 36607GR). This TAA compliant solution is built for high-resolution, seamless viewing in large-scale applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 340 in (863.6 cm) |
| Screen Height | 162 in (411.5 cm) |
| Shipping Weight | 219 lbs (99.3 kg) |
| Size | 162" x 288" or 340" diagonal |
| Application | Portable |
| Federal Ops Country of Origin | US |
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
All other specifications 5
| Screen Surface Features | High Resolution |
| Screen Type | Portable |
| Special Features | Large Venue |
| Surface | HD Progressive ReView 0.9 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 162" x 288" Black Drapes - HD Dlx
36607$5,223.20
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 162" x 288" Gray Drapes - HD Dlx
36607GR$5,223.20
Da-Lite Heavy Duty Fast-Fold Deluxe Repair Kit
36974$620.80
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 162" x 288" with HD Progressive ReView 0.9 - 87326
87326$6,090.40
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 162" x 288" with Da-Tex - 87302
87302$6,090.40
Da-Lite Fast-Fold Skirt, 162" x 288" Gray Skirt
36790GR$2,311.20
Da-Lite Fast-Fold Skirt, 162" x 288" Black Skirt
36790$2,311.20
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 162" x 288" with HD Rental - 34248
34248$3,968.00
Questions about this part
Is this Da-Lite 92154 screen suitable for rear projection?
Yes, this system is designed for rear projection using the HD Progressive ReView 0.9 surface to provide high-resolution imagery.
What do I need to buy to achieve a professional stage look?
To achieve a professional stage-front aesthetic, you can add a Da-Lite Drapery Presentation Kit, such as the black (SKU 36607) or gray (SKU 36607GR) options.
How is this screen transported and set up?
The system is a portable solution that includes a carrying case with wheels and features easy release latches on the frame for efficient assembly in the field.
Can I replace the screen surface if it gets damaged during rental?
Yes, replacement surfaces for the HD Fast-Fold Deluxe are available, including the HD Progressive ReView 0.9 (SKU 87326) or Da-Tex (SKU 87302) options.
Is the 92154 screen TAA compliant?
Yes, this specific model is TAA compliant and is of US origin, making it suitable for federal operations.
