Da-Lite Heavy Duty Fast-Fold Deluxe Screen System, 144" x 256" with HD Progressive ReView 09 - 99816N
Large venue rear projection screen, 144" x 256" format, featuring HD Progressive ReView 0.9 surface for high-resolution imagery

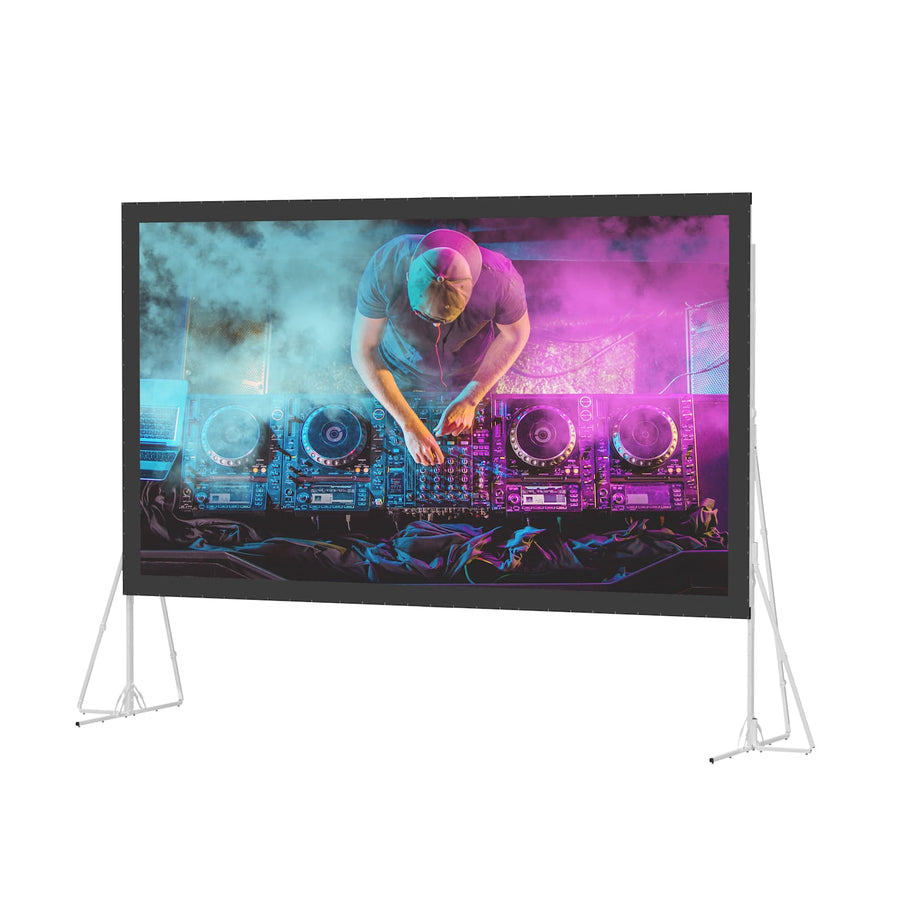

The Da-Lite 99816N is a Heavy Duty Fast-Fold Deluxe Screen System designed specifically for demanding rental and staging environments. This portable, large venue solution measures 144" x 256" (294" diagonal) and utilizes a specialized HD Progressive ReView 0.9 surface for high-resolution rear projection. The frame is constructed from robust 3 ½” x 1 ¼” thick aluminum tubing, providing a durable architecture capable of withstanding frequent transport. For efficient setup and teardown in the field, the frame incorporates easy release latches. The screen features a standard black-backed foldable material to ensure superior image quality and opacity. This TAA compliant system is built for professional deployment where rapid assembly and high-fidelity visual performance are required.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 294 in (746.8 cm) |
| Screen Height | 144 in (365.8 cm) |
| Shipping Weight | 240 lbs (108.9 kg) |
| Size | 144" x 256" or 294" diagonal |
| Application | Portable |
| Federal Ops Country of Origin | US |
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
All other specifications 6
| Screen Options | No Case and No Legs |
| Screen Surface Features | High Resolution |
| Screen Type | Portable |
| Special Features | Large Venue |
| Surface | HD Progressive ReView 0.9 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 144" x 256" Gray Drapes - HD Dlx
36605GR$4,895.20
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 144" x 256" Black Drapes - HD Dlx
36605$4,895.20
Da-Lite Heavy Duty Fast-Fold Deluxe Repair Kit
36974$620.80
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 144" x 256" with Da-Tex - 99824
99824$4,933.60
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 144" x 256" with HD Progressive ReView 0.9 - 99840
99840$4,933.60
Da-Lite Fast-Fold Skirt, 144" x 256" Gray Skirt
36788GR$2,180.80
Da-Lite Fast-Fold Skirt, 144" x 256" Black Skirt
36788$2,180.80
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 144" x 256" with HD Rental - 34246
34246$3,165.60
Questions about this part
What is the purpose of the HD Progressive ReView 0.9 surface on the 99816N?
The HD Progressive ReView 0.9 is a high-resolution surface designed specifically for rear projection applications in large venue settings.
Is this screen suitable for rental and staging use?
Yes, the 99816N is part of the Heavy Duty Fast-Fold Deluxe series, built with a thicker 3 ½” x 1 ¼” aluminum frame for durability in rental environments.
What accessories are compatible with this 144" x 256" screen?
You can enhance the aesthetic with the Da-Lite 36605 Black or 36605GR Gray Drapery Presentation Kits, or add a 36788 Black or 36788GR Gray skirt.
