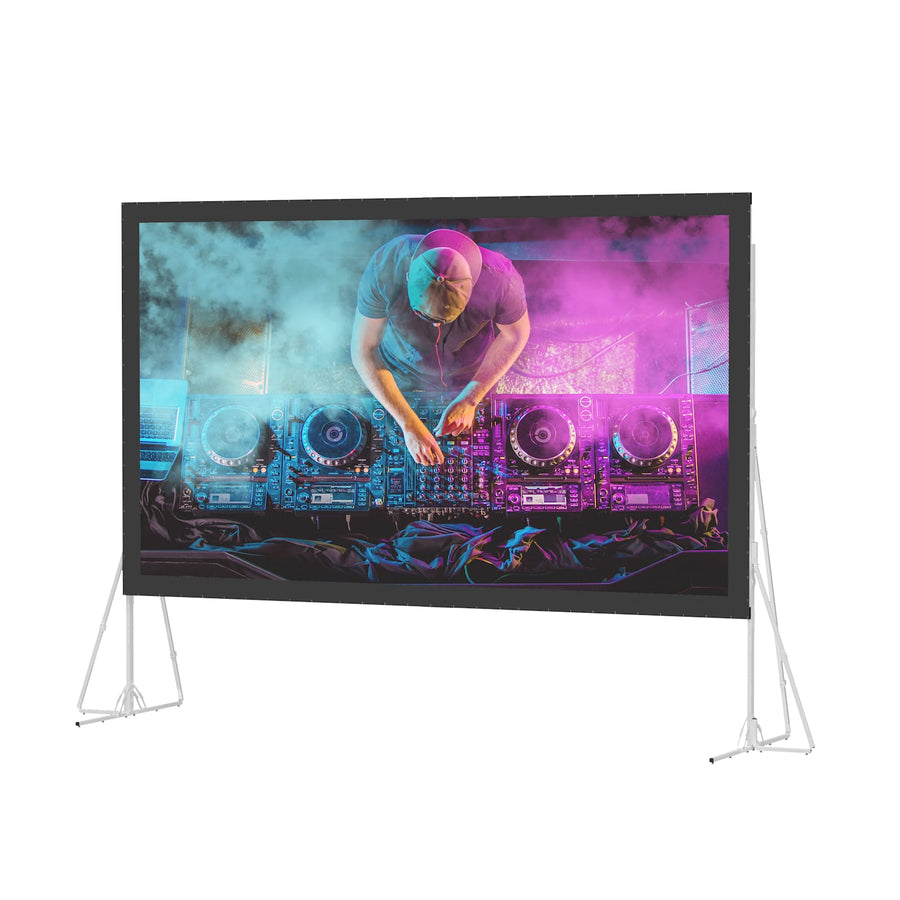

Da-Lite Heavy Duty Fast-Fold Deluxe Screen System, 135" x 240" with HD Progressive ReView 09 - 92151
Heavy duty portable rear projection screen with 135" x 240" dimensions and HD Progressive ReView 0.9 surface
The Da-Lite 92151 is a professional-grade, portable Heavy Duty Fast-Fold Deluxe Screen System designed for high-demand rental and staging environments. This 135" x 240" system, which provides a 275 in (698.5 cm) diagonal, is built for large venue applications where durability is critical. The frame and legs are constructed from heavy 3 ½” x 1 ¼” thick aluminum tubing, ensuring a stable structure for large-scale presentations. This rear projection screen features the HD Progressive ReView 0.9 surface, which utilizes a black-backed foldable material to provide high resolution and superior image opacity. For efficient logistics, the system is equipped with easy-release latches for rapid setup and teardown in the field, and it includes a wheeled carrying case for transport. This TAA compliant system is an ideal solution for professional installers managing temporary large-format viewing environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 275 in (698.5 cm) |
| Screen Height | 135 in (342.9 cm) |
| Shipping Weight | 226 lbs (102.5 kg) |
| Size | 135" x 240" or 275" diagonal |
| Application | Portable |
| Federal Ops Country of Origin | US |
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
All other specifications 5
| Screen Surface Features | High Resolution |
| Screen Type | Portable |
| Special Features | Large Venue |
| Surface | HD Progressive ReView 0.9 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 135" x 240" Gray Drapes - HD Dlx
36603GR$4,799.20
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 135" x 240" Black Drapes - HD Dlx
36603$4,799.20
Da-Lite Heavy Duty Fast-Fold Deluxe Repair Kit
36974$620.80
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 135" x 240" with HD Progressive ReView 0.9 - 87325
87325$4,341.60
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 135" x 240" with Da-Tex - 87301
87301$4,341.60
Da-Lite Fast-Fold Skirt, 135" x 240" Gray Skirt
36786GR$2,099.20
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 135" x 240" with HD Rental - 34244
34244$2,828.00
Da-Lite Fast-Fold Skirt, 135" x 240" Black Skirt
36786$2,099.20
Questions about this part
Is the Da-Lite 92151 suitable for rear projection?
Yes, this system is specifically designed for rear projection using the HD Progressive ReView 0.9 surface.
What accessories are available for this 135" x 240" screen?
You can add professional aesthetics with Drapery Presentation Kits (SKUs 36603GR or 36603) or a Fast-Fold Skirt (SKUs 36786GR or 36786).
Does this screen come with a transport solution?
The system includes a carrying case equipped with wheels to facilitate movement in staging environments.
Can I replace the screen surface if it gets damaged?
Yes, replacement surfaces for this 135" x 240" frame are available, including the HD Progressive ReView 0.9 (SKU 87325) and Da-Tex (SKU 87301) options.
What is the difference between the 92151 and the standard Fast-Fold?
The Heavy Duty Deluxe version utilizes thicker 3 ½” x 1 ¼” aluminum tubing and a more robust frame for increased durability in rental and staging use.
