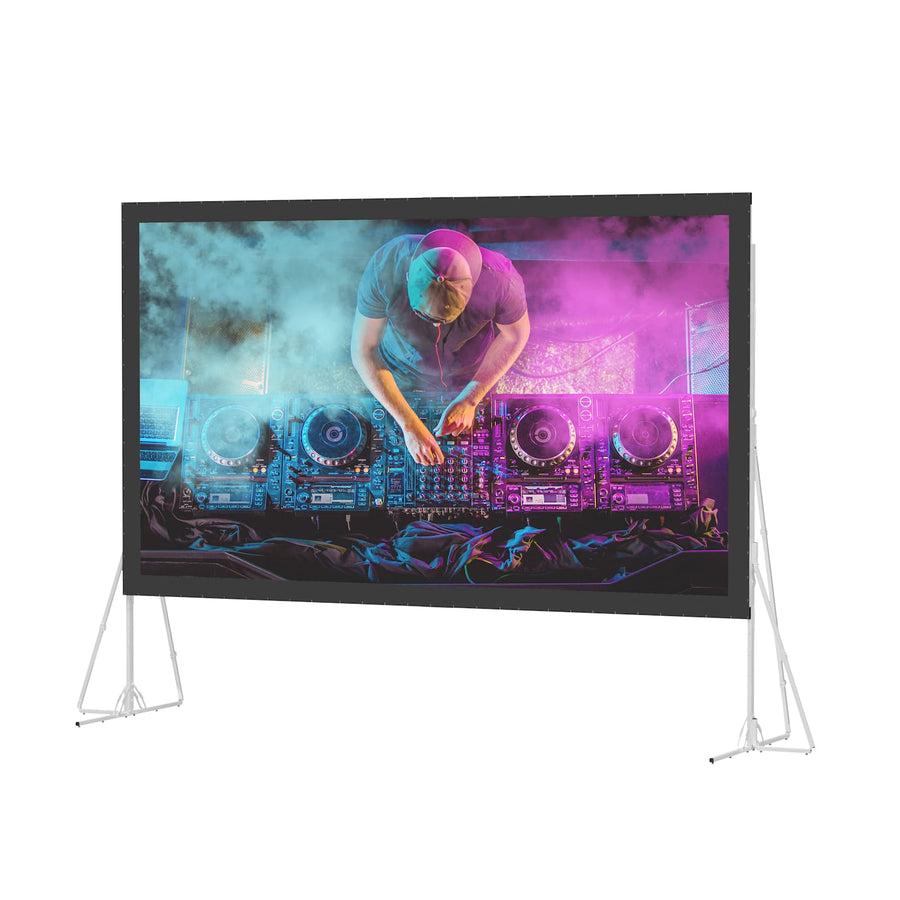

Da-Lite Heavy Duty Fast-Fold Deluxe Screen System, 135" x 216" with HD Rental - 38338N
Portable 135" x 216" front projection screen with HD Rental surface, designed for high-durability rental and staging environments
The Da-Lite 38338N is a Heavy Duty Fast-Fold Deluxe Screen System designed specifically for demanding rental and staging environments. This portable projection system features a robust frame and leg construction made from 3 ½” x 1 ¼” thick aluminum tubing, providing the durability required for frequent transport and assembly. The 135" x 216" (255" diagonal) screen uses a Wide (16:10) format and comes equipped with an HD Rental surface. This high-resolution surface is designed for front projection in large venues. To facilitate rapid deployment, the frame utilizes easy release latches for efficient setup and teardown. For a professional aesthetic, this unit can be paired with a Drapery Presentation Kit. This specific SKU is the version without a case and without legs, intended as a core component of a larger modular system.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 255 in (647.7 cm) |
| Screen Height | 135 in (342.9 cm) |
| Shipping Dimensions | 78" x 11" x 17" (198.1 x 27.9 x 43.2 cm) |
| Shipping Weight | 147 lbs (66.7 kg) |
| Size | 135" x 216" or 255" diagonal |
| Application | Portable |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
All other specifications 9
| Screen Format | Wide (16:10) |
| Screen Options | No Case and No Legs |
| Screen Surface Features | High Resolution |
| Screen Type | Portable |
| Special Features | Large Venue |
| Surface | HD Rental |
| TAA Compliant | Yes |
| UPC | 717068764378 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 135" x 216" Gray Drapes - HD Dlx
14649GR
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 135" x 216" Black Drapes - HD Dlx
14649$4,033.60
Da-Lite Heavy Duty Fast-Fold Deluxe Repair Kit
36974$620.80
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 135" x 216" with Da-Tex - 38373
38373$3,528.00
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 135" x 216" with HD Rental - 38366
38366
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 135" x 216" with HD Progressive ReView 0.9 - 38380
38380
Da-Lite Fast-Fold Skirt, 135" x 216" Black Skirt
14666$1,981.60
Da-Lite Fast-Fold Skirt, 135" x 216" Gray Skirt
14666GR
Questions about this part
What is the screen size for the 38338N?
This screen measures 135" x 216", which provides a 255" diagonal in a Wide (16:10) format.
Is the 38338N compatible with drapery kits?
Yes, you can achieve a professional stage-front look by adding a Da-Lite Drapery Presentation Kit, such as part number 14649 for black drapes.
What surface is used on the 38338N?
The 38338N is equipped with an HD Rental surface, which is optimized for high-resolution front projection in large venue environments.
What accessories are needed for a complete setup?
This SKU is the screen only and does not include a case or legs. You may need to purchase a carrying case with wheels or compatible legs to complete your kit.
Which document should I use for installation instructions?
For assembly and usage, refer to the Heavy-Duty Fast-Fold Deluxe Instructions PDF provided in the documentation tab.
