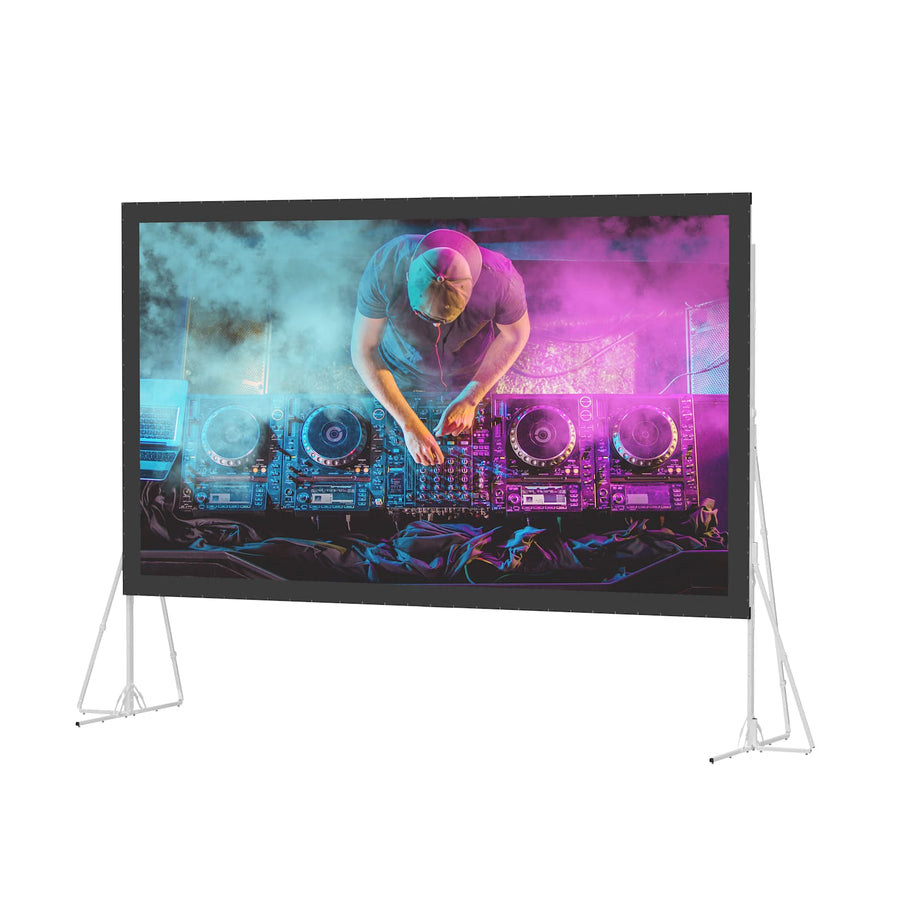

Da-Lite Heavy Duty Fast-Fold Deluxe Screen System, 120" x 192" with DaTex - 38344N
Portable 120" x 192" heavy duty screen system with Da-Tex surface and 16:10 aspect ratio
The Da-Lite 38344N Heavy Duty Fast-Fold Deluxe Screen System is a portable solution specifically engineered for high-demand rental and staging environments. This 120" x 192" system features a wide 16:10 aspect ratio and is designed for large venue applications where durability and rapid deployment are critical. The frame and legs are constructed from 3 ½” x 1 ¼” thick aluminum tubing to provide a more robust and stable structure than standard portable models. For efficient setup and teardown in the field, the frame incorporates easy-release latches. The screen utilizes a Da-Tex surface with standard resolution, featuring black-backed material to ensure superior image quality through increased opacity. This TAA compliant system is manufactured in the US and is built to withstand frequent transport. Please note this specific SKU is configured with no case and no legs included.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 245 in (622.3 cm) |
| Screen Height | 120 in (304.8 cm) |
| Shipping Dimensions | 78" x 11" x 17" (198.1 x 27.9 x 43.2 cm) |
| Shipping Weight | 185 lbs (83.9 kg) |
| Size | 120" x 192" or 226" diagonal |
| Application | Portable |
| Federal Ops Country of Origin | US |
| Screen Format | Wide (16:10) |
All other specifications 8
| Screen Options | No Case and No Legs |
| Screen Surface Features | Standard Resolution |
| Screen Type | Portable |
| Special Features | Large Venue |
| Surface | Da-Tex |
| TAA Compliant | Yes |
| UPC | 717068764330 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 120" x 192" Gray Drapes - HD Dlx
14648GR
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 120" x 192" Black Drapes - HD Dlx
14648$3,492.80
Da-Lite Heavy Duty Fast-Fold Deluxe Repair Kit
36974$620.80
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 120" x 192" with Da-Tex - 38372
38372$2,381.60
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 120" x 192" with HD Rental - 38365
38365$1,848.00
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 120" x 192" with HD Progressive ReView 0.9 - 38379
38379$2,381.60
Da-Lite Fast-Fold Skirt, 120" x 192" Gray Skirt
14662GR
Da-Lite Fast-Fold Skirt, 120" x 192" Black Skirt
14662$1,867.20
Questions about this part
What is the screen size and aspect ratio for the 38344N?
The 38344N has a screen size of 120" x 192" (226" diagonal) and uses a Wide 16:10 aspect ratio.
Does this screen system include a carrying case or legs?
This specific SKU is listed with the screen options of 'No Case and No Legs'.
What accessories are compatible with the 38344N screen?
You can enhance this system with Drapery Presentation Kits (such as SKU 14648 or 14648GR) and skirts (SKU 14662 or 14662GR).
Is this screen suitable for outdoor use?
This is a portable indoor system; please refer to the 'Not for Outdoor Use' warning documentation in the resources tab.
Where can I find replacement parts or service documentation for this system?
The product resources include a Fast-Fold Deluxe Replacement Parts List and the Heavy Duty Fast-Fold Deluxe Instructions.
