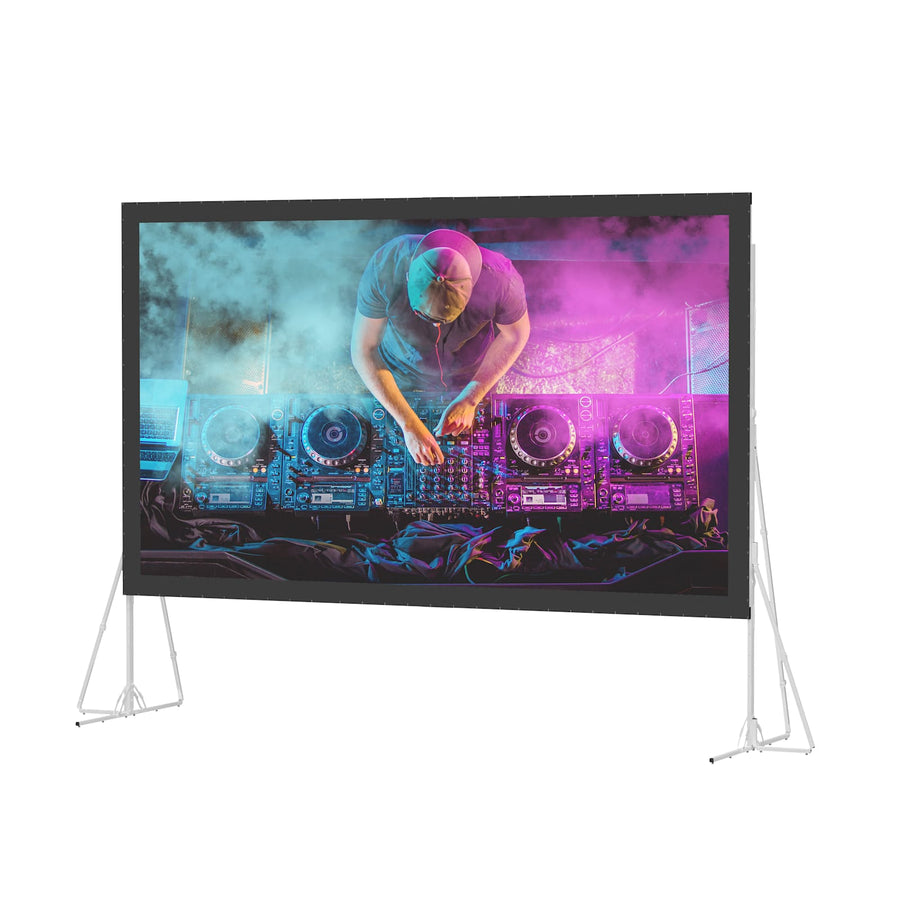

Da-Lite Heavy Duty Fast-Fold Deluxe Screen System, 100" x 160" with HD Progressive ReView 09 - 38350
Portable 100" x 160" rear projection screen with HD Progressive ReView 0.9 surface and heavy-duty aluminum frame
The Da-Lite 38350 is a heavy-duty, portable screen system designed specifically for demanding rental and staging environments. Featuring a robust frame and legs constructed from 3 ½” x 1 ¼” thick aluminum tubing, this system provides a more durable alternative to standard portable screens. This 100" x 160" (189" diagonal) wide format (16:10) system utilizes an HD Progressive ReView 0.9 surface, which is a high-resolution, black-backed material designed to ensure superior image quality and total opacity during rear projection. For efficient deployment, the frame includes integrated easy-release latches to accelerate setup and teardown in large venue applications. This TAA compliant system is built to withstand the rigors of frequent transport and professional event use.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 189 in (480.1 cm) |
| Screen Height | 100 in (254 cm) |
| Shipping Weight | 175 lbs (79.4 kg) |
| Size | 100" x 160" or 189" diagonal |
| Application | Portable |
| Federal Ops Country of Origin | US |
| Projection Type | Rear Projection |
| Screen Format | Wide (16:10) |
All other specifications 5
| Screen Surface Features | High Resolution |
| Screen Type | Portable |
| Special Features | Large Venue |
| Surface | HD Progressive ReView 0.9 |
| Certifications | TAA |
Resources
You'll need these with it

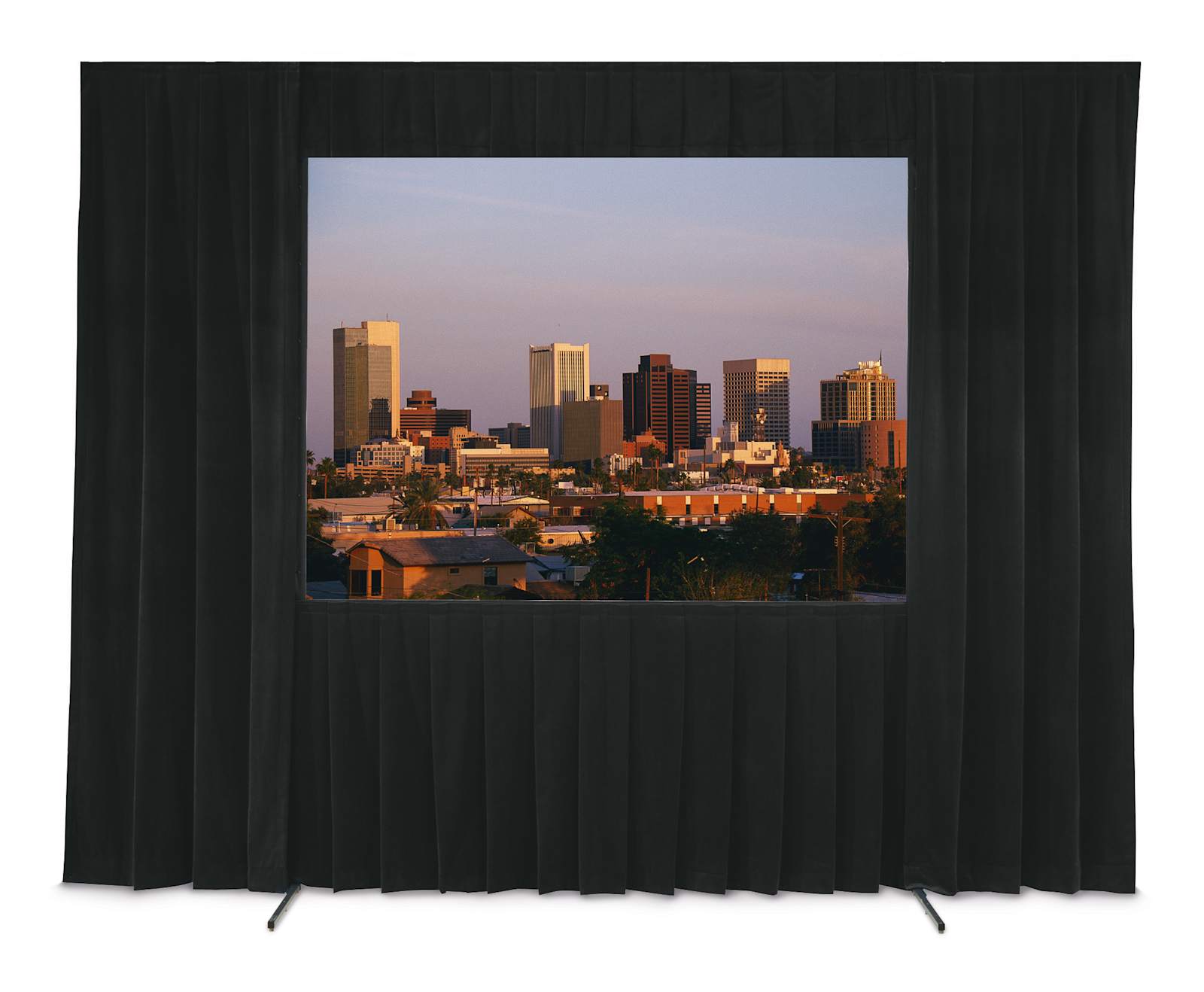

Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 100" x 160" Gray Drapes - HD Dlx
14647GR
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 100" x 160" Black Drapes - HD Dlx
14647$3,419.20
Da-Lite Fast-Fold Skirt, 100" x 160" Black Skirt
14658$1,556.80
Da-Lite Heavy Duty Fast-Fold Deluxe Repair Kit
36974$620.80
Da-Lite Fast-Fold Skirt, 100" x 160" Gray Skirt
14658GR
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 100" x 160" with HD Progressive ReView 0.9 - 38378
38378$2,093.60
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 100" x 160" with Da-Tex - 38371
38371
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 100" x 160" with HD Rental - 38364
38364$1,364.00
Questions about this part
Will this screen work for my rear projection setup?
Yes, the 38350 is specifically designed for rear projection using an HD Progressive ReView 0.9 surface with black backing for high opacity.
What accessories are compatible with this screen system?
You can enhance the professional aesthetic with a Drapery Presentation Kit (SKUs 14647 or 14647GR) or a matching skirt (SKUs 14658 or 14658GR).
Is this screen TAA compliant?
Yes, this product is TAA compliant, making it suitable for various government and federal installation projects.
How is the frame assembled and serviced?
The frame uses easy release latches for quick assembly; for long-term maintenance, Da-Lite offers a dedicated Repair Kit (SKU 36974).
Can I purchase replacement surfaces for this model?
Yes, replacement surfaces are available for this system, including Da-Tex (SKU 38371) and HD Rental (SKU 38364) options.
