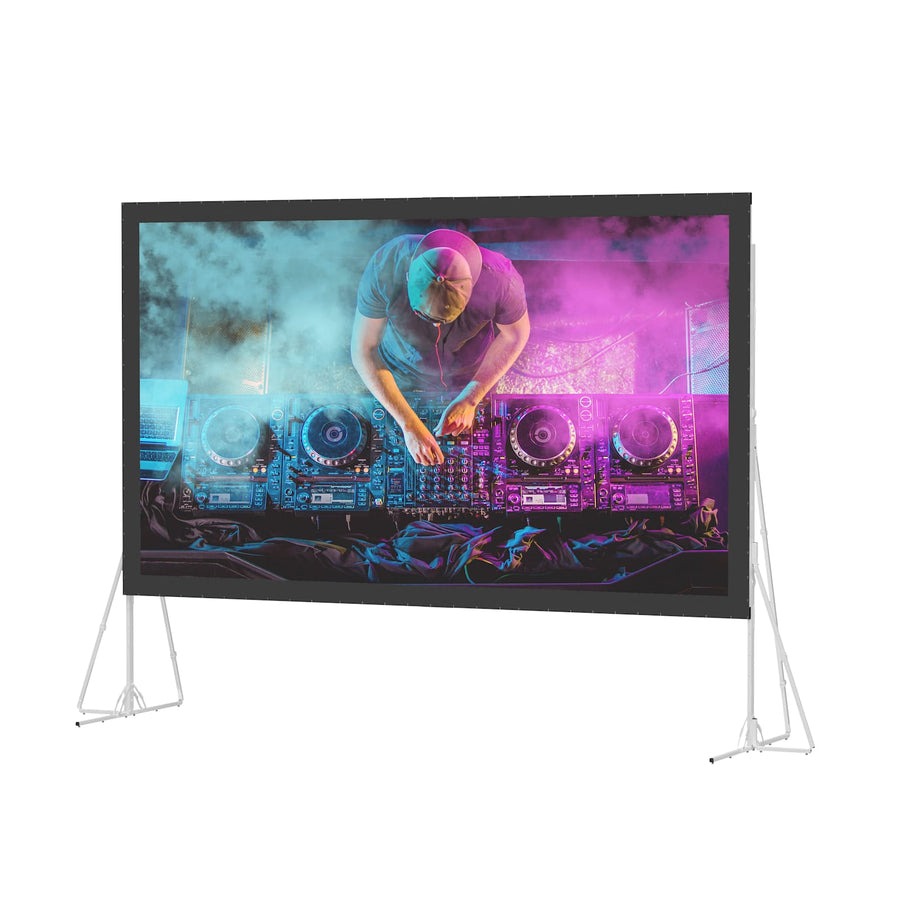

Da-Lite Heavy Duty Fast-Fold Deluxe Screen System, 100" x 160" with DaTex - 38343N
Heavy duty portable 100" x 160" screen system for rental and staging, featuring a Da-Tex surface and 189" diagonal
The Da-Lite 38343N Heavy Duty Fast-Fold Deluxe Screen System is engineered specifically for high-demand rental and staging environments. This portable screen features a robust frame constructed from 3 ½” x 1 ¼” thick aluminum tubing, providing a durable solution for large venue applications. The 100" x 160" wide format (16:10) utilizes a Da-Tex surface, which is a standard resolution, black-backed material designed for superior image quality and high opacity. For efficient operation in the field, the frame includes easy-release latches to streamline setup and teardown procedures. This TAA compliant system is designed for large-scale use and is highly portable. Note that this specific SKU is the screen only; it does not include a case or legs. For a complete professional stage-front aesthetic, installers can add a Drapery Presentation Kit.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 189 in (480.1 cm) |
| Screen Height | 100 in (254 cm) |
| Shipping Dimensions | 68" x 17" x 11" (172.7 x 43.2 x 27.9 cm) |
| Shipping Weight | 170 lbs (77.1 kg) |
| Size | 100" x 160" or 189" diagonal |
| Application | Portable |
| Federal Ops Country of Origin | US |
| Screen Format | Wide (16:10) |
All other specifications 8
| Screen Options | No Case and No Legs |
| Screen Surface Features | Standard Resolution |
| Screen Type | Portable |
| Special Features | Large Venue |
| Surface | Da-Tex |
| TAA Compliant | Yes |
| UPC | 717068763999 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 100" x 160" Gray Drapes - HD Dlx
14647GR
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 100" x 160" Black Drapes - HD Dlx
14647$3,419.20
Da-Lite Fast-Fold Skirt, 100" x 160" Black Skirt
14658$1,556.80
Da-Lite Heavy Duty Fast-Fold Deluxe Repair Kit
36974$620.80
Da-Lite Fast-Fold Skirt, 100" x 160" Gray Skirt
14658GR
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 100" x 160" with HD Progressive ReView 0.9 - 38378
38378$2,093.60
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 100" x 160" with Da-Tex - 38371
38371
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 100" x 160" with HD Rental - 38364
38364$1,364.00
Questions about this part
This SKU is for the screen surface and frame only and does not include a carrying case or legs.
This SKU is for the screen surface and frame only and does not include a carrying case or legs.
What accessories are needed to complete the stage setup?
To complete the installation, you can add the Da-Lite Fast-Fold Skirt (SKU 14658) or a Drapery Presentation Kit (SKU 14647 or 14647GR).
Can the Da-Lite 38343N be used for professional stage presentations?
Yes, you can achieve a professional aesthetic by adding a Drapery Presentation Kit, such as the Da-Lite 14647 (Black Drapes) or 14647GR (Gray Drapes).
Is the Da-Lite 38343N TAA compliant?
Yes, this product is TAA compliant and is made in the US.
What is the difference between Da-Tex and other Da-Lite surfaces?
The Da-Tex surface used here is a standard resolution, black-backed material; other options available for this frame include HD Progressive ReView 0.9 (SKU 38378) or HD Rental (SKU 38364).
