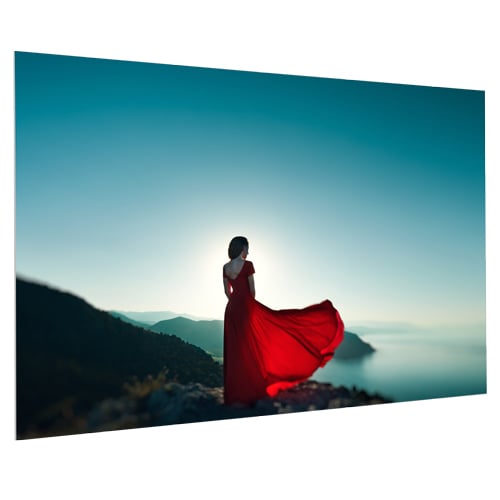

Da-Lite FullVision, 94.5" x 168" - HD Progressive 1.3
Fixed frame projection screen with 94.5" x 168" dimensions and HD Progressive 1.3 surface
The Da-Lite FullVision FC13H94.5X168 is a border-less fixed frame projection screen designed for front projection applications. This 193 in (490.2 cm) diagonal screen utilizes an HD Progressive 1.3 surface, which is engineered to maximize the capabilities of 4K and Ultra HD projectors. The surface is wrapped around a low-profile aluminum frame that measures 8 cm wide and 3 cm deep, with the material secured to the rear via Velcro®. This border-less design ensures the entire surface area is available for projection, allowing the screen to blend into the room's environment when not in use. The assembly features an innovative corner design for rapid installation and a lightweight structure for wall mounting. While this unit is configured for wall application, the brackets can be rotated to allow for ceiling installation, and free-standing configurations are available upon request.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Screen Diagonal | 193 in (490.2 cm) |
| Shipping Weight | 91 lbs (41.3 kg) |
| Size | 94.5" x 168" or 193" diagonal |
| Application | Wall |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Fixed Frame |
| Surface | HD Progressive 1.3 |
Resources
Questions about this part
What is the best use for the Da-Lite FC13H94.5X168 surface?
The HD Progressive 1.3 surface is specifically designed to maximize the resolution of 4K and Ultra HD projectors for high-resolution video and data projection.
Can this FullVision screen be mounted on a ceiling?
Yes, the included mounting brackets can be rotated to facilitate a ceiling installation instead of a standard wall mount.
How is the screen surface attached to the frame?
The projection surface is wrapped around the 8 cm wide aluminum frame and is secured to the rear using Velcro®.
Is this screen suitable for government projects requiring compliance?
Yes, this model is TAA compliant, making it suitable for various professional and institutional installations.
Can I get a different size than 94.5" x 168"?
The FullVision series offers custom sizing for projects requiring dimensions up to 400 cm in height and 600 cm in width.
