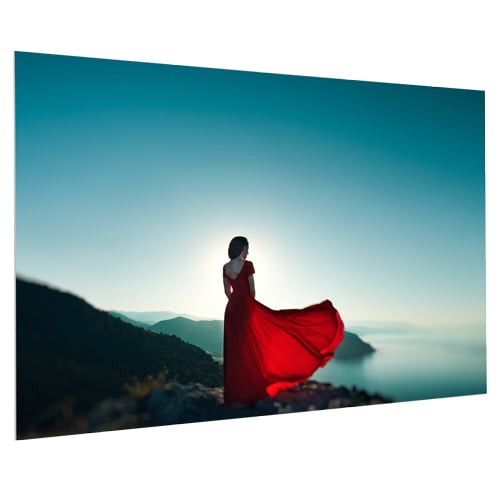

Da-Lite FullVision, 94.5" x 168" - HD Progressive 1.1 Contrast
Fixed frame projection screen with 94.5" x 168" dimensions and HD Progressive 1.1 Contrast surface
The Da-Lite FullVision FC11C94.5X168 is a border-less fixed frame projection screen designed for front projection applications. This 94.5" x 168" (193 in diagonal) screen features the HD Progressive 1.1 Contrast surface, a high-resolution technology specifically engineered to maximize the performance of 4K and Ultra HD projectors. The screen is built with a low-profile aluminum frame that is 8 cm wide and 3 cm deep. The projection surface is wrapped around this frame and secured to the rear using Velcro®. Designed for a clean look, the frame is mounted close to the wall for an inconspicuous installation and includes supplied mounting brackets. While this unit is configured for wall application, it can be rotated for ceiling installation or used in a free-standing configuration upon request.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Screen Diagonal | 193 in (490.2 cm) |
| Shipping Weight | 91 lbs (41.3 kg) |
| Size | 94.5" x 168" or 193" diagonal |
| Application | Wall |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Fixed Frame |
| Surface | HD Progressive 1.1 Contrast |
Resources
Questions about this part
Will the FullVision FC11C94.5X168 fit my projector setup?
This model is a front projection screen with a 16:9 HDTV format. The HD Progressive 1.1 Contrast surface is specifically designed to support high-resolution 4K and Ultra HD projection technology.
How is the FullVision screen mounted to the wall?
The unit is a wall application screen that mounts close to the wall for an inconspicuous profile. It includes supplied mounting brackets for installation and features an innovative corner design for fast assembly.
Can I install this Da-Lite screen on a ceiling?
Yes, the FullVision series allows for ceiling installation by rotating the mounting brackets. Free-standing installation options are also available upon request.
What is the difference between this and other FullVision surfaces?
This specific SKU features the HD Progressive 1.1 Contrast surface. The FullVision series is also available with other surfaces, such as HD Progressive 1.0 or 1.3, and Parallax Stratos 1.0.
Which documents are available for submittals and installation?
Technical installers can access the FullVision Instruction Manual for assembly, the Specification Sheet for dimensions, or CAD and BIM models for integration planning.
