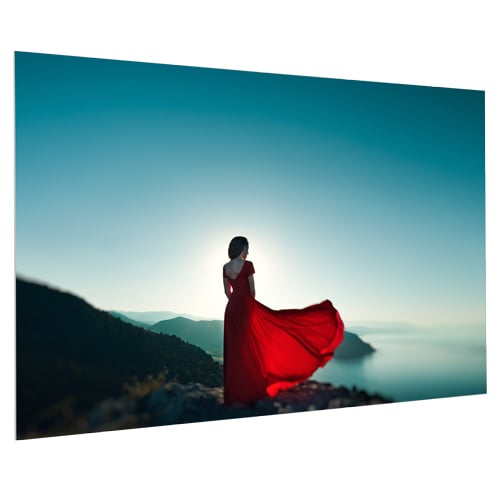

Da-Lite FullVision, 87" x 139" - Parallax Stratos 1.0
Fixed frame projection screen, 87" x 139" with Parallax Stratos 1.0 Ambient Light Rejecting surface
The Da-Lite FC10A87X139 is a border-less fixed frame projection screen designed for seamless visual integration into professional environments. This 87" x 139" screen, which features a 164" diagonal, utilizes the Parallax Stratos 1.0 surface to provide Ambient Light Rejecting (ALR) and high-resolution capabilities for front projection. The projection surface is wrapped around an aluminum frame that measures 8 cm wide and 3 cm deep, secured to the rear via Velcro®. Designed for a low-profile installation close to the wall, this TAA compliant screen uses included mounting brackets for a streamlined appearance. While this model is optimized for wall application, ceiling mounting is possible by rotating the brackets, and free-standing options are available upon request. The FullVision series ensures a completely flat, seamless viewing area suitable for high-definition video and data projection.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 164 in (416.6 cm) |
| Shipping Dimensions | 151" x 12.5" x 5.5" (383.5 x 31.8 x 14 cm) |
| Shipping Weight | 70 lbs (31.8 kg) |
| Size | 87" x 139" or 164" diagonal |
| Application | Wall |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
All other specifications 5
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Fixed Frame |
| Surface | Parallax Stratos 1.0 |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
Questions about this part
What type of surface is used on the FC10A87X139?
This screen features the Parallax Stratos 1.0 surface, which is an Ambient Light Rejecting (ALR) and High Resolution material.
Can this screen be mounted on a ceiling?
Yes, ceiling installation is possible by rotating the included mounting brackets; free-standing installation can be provided upon request.
Is the FC10A87X139 TAA compliant?
Yes, this product is TAA compliant and meets the necessary standards for federal operations.
What is the aspect ratio of this screen?
The FullVision FC10A87X139 uses a Wide (16:10) screen format.
What does the FullVision series offer for custom projects?
The FullVision series supports custom sizes up to 400 cm in height and 600 cm in width.
