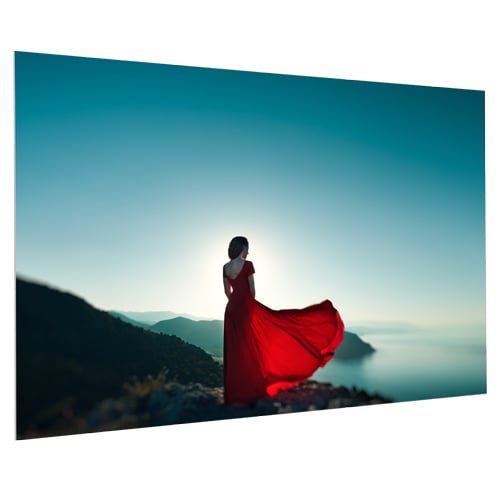

Da-Lite FullVision, 87" x 139" - HD Progressive 1.1 Contrast
87" x 139" fixed frame projection screen with HD Progressive 1.1 Contrast surface and borderless design
The Da-Lite FC11C87X139 is a FullVision series fixed frame projection screen designed for high-resolution front projection. Featuring a 164 in (416.6 cm) diagonal, this 87" x 139" wide (16:10) format screen uses an HD Progressive 1.1 Contrast surface specifically engineered for 4K and Ultra HD content. The borderless design allows for the use of the entire surface area, making it an inconspicuous addition to modern environments. The projection surface is wrapped around an aluminum frame that measures 8 cm wide and 3 cm deep, secured to the rear via Velcro®. This lightweight, low-profile frame is mounted close to the wall using the supplied mounting brackets for a clean installation. The FullVision system is easy to assemble thanks to an innovative corner design, and the surface remains exceptionally flat and seamless across the entire viewing area.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 164 in (416.6 cm) |
| Shipping Dimensions | 151" x 12.5" x 5.5" (383.5 x 31.8 x 14 cm) |
| Shipping Weight | 70 lbs (31.8 kg) |
| Size | 87" x 139" or 164" diagonal |
| Application | Wall |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
All other specifications 5
| Screen Surface Features | High Resolution |
| Screen Type | Fixed Frame |
| Surface | HD Progressive 1.1 Contrast |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
Questions about this part
What is the compatible surface for the FC11C87X139?
This specific model features the HD Progressive 1.1 Contrast surface, which is designed to maximize the resolution of 4K and Ultra HD projectors.
How is the FullVision screen mounted?
This is a wall application screen that uses supplied mounting brackets for a low-profile installation close to the wall. It can also be ceiling mounted by rotating the brackets.
Is this screen TAA compliant?
Yes, the FC11C87X139 is TAA compliant and has a Federal Ops Country of Origin of the US.
Can this screen be used for custom sizes?
The FullVision series supports custom sizes up to 600 cm in width and 400 cm in height.
Where can I find installation instructions for this screen?
The FullVision Instruction Manual (PDF) provides guidance on the assembly and installation of the frame and surface.
