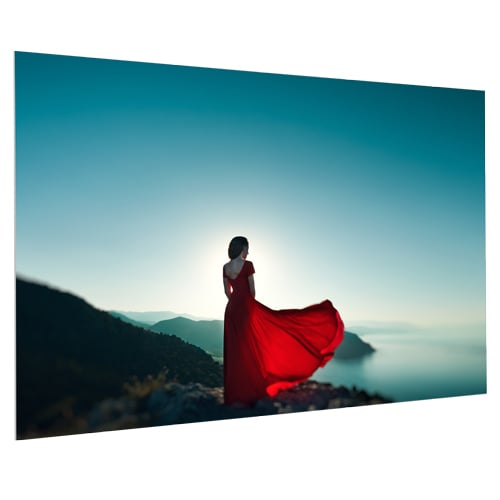

Da-Lite FullVision, 78" x 139" - HD Progressive 1.3
Borderless fixed frame projection screen, 78" x 139" size, featuring an HD Progressive 1.3 surface for high-resolution video.
The Da-Lite FC13H78X139 is a borderless fixed frame projection screen designed to maximize usable viewing area by eliminating edges. This 78" x 139" screen, featuring a 159 in (403.9 cm) diagonal, utilizes an HD Progressive 1.3 surface specifically engineered to support 4K and Ultra HD projection technology. The aluminum frame measures 8 cm wide and 3 cm deep, with the screen surface wrapped around the frame and secured to the rear using Velcro®. This low-profile design is intended for wall application, allowing the screen to sit close to the wall for an inconspicuous appearance when not in use. The frame is easy to assemble due to an innovative corner design and includes mounting brackets for installation. While this model is designed for wall mounting, ceiling installation is possible by rotating the included brackets, and free-standing options are available upon request.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 159 in (403.9 cm) |
| Shipping Dimensions | 151" x 12.5" x 5.5" (383.5 x 31.8 x 14 cm) |
| Shipping Weight | 67 lbs (30.4 kg) |
| Size | 78" x 139" or 159" diagonal |
| Application | Wall |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
All other specifications 5
| Screen Surface Features | High Resolution |
| Screen Type | Fixed Frame |
| Surface | HD Progressive 1.3 |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
Questions about this part
Is the Da-Lite FC13H78X139 compatible with 4K content?
Yes, the HD Progressive 1.3 surface is designed to maximize the technology of projectors, making it suitable for 4K and Ultra HD video projection.
Can this FullVision screen be installed on a ceiling?
Yes, you can install this model on a ceiling by rotating the supplied mounting brackets.
What are the mounting requirements for the FullVision series?
This series is a wall-mounted, low-profile system that installs close to the wall using the supplied mounting brackets.
How is the screen surface attached to the aluminum frame?
The projection surface is wrapped around the 8 cm wide frame and is attached to the rear of the screen with Velcro®.
Where can I find the CAD models or installation manual for the FC13H78X139?
FullVision CAD models, BIM files, and the instruction manual are available in the Resources tab for your submittals.
