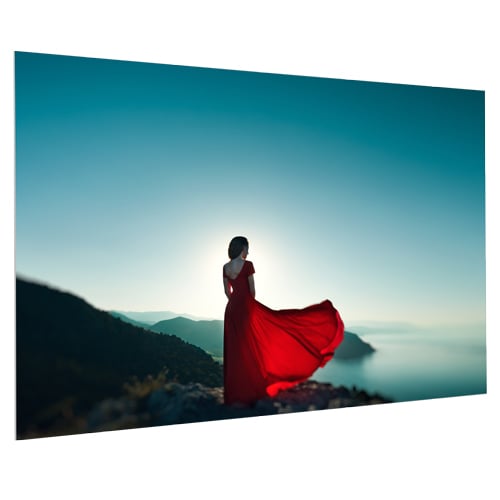

Da-Lite FullVision, 58" x 104" - HD Progressive 1.0
Borderless fixed frame projection screen, 58" x 104" (119" diagonal), featuring HD Progressive 1.0 surface for high-resolution front projection
The Da-Lite FullVision FC10H58X104 is a border-less fixed frame projection screen designed to maximize the available viewing area. This 58" x 104" (119" diagonal) screen features the HD Progressive 1.0 surface, a high-resolution technology engineered to support the requirements of 4K and Ultra HD projection. The surface is wrapped around an aluminum frame that measures 8 cm wide and 3 cm deep, secured to the rear of the screen using Velcro®. This low-profile, lightweight design is intended for wall mounting using the supplied brackets to create an inconspicuous installation. For installers needing specific submittals, the FullVision Instruction Manual and Product Information Sheet are available for review. This TAA compliant screen is optimized for front projection in environments where a seamless, exceptionally flat surface is required for data or video.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 119 in (302.3 cm) |
| Shipping Dimensions | 113" x 8" x 9" (2870.2 x 203.2 x 228.6 mm) |
| Shipping Weight | 38 lbs (17.2 kg) |
| Size | 58" x 104" or 119" diagonal |
| Application | Wall |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
All other specifications 5
| Screen Surface Features | High Resolution |
| Screen Type | Fixed Frame |
| Surface | HD Progressive 1.0 |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
Questions about this part
Will the FC10H58X104 work with my 4K projector?
Yes, the HD Progressive 1.0 surface is specifically designed to maximize the technology of 4K and Ultra HD projectors.
How do I mount the FullVision FC10H58X104?
This model is designed for wall application using the included mounting brackets, though ceiling installation is possible by rotating the brackets.
What is the difference between the HD Progressive 1.0 and 1.1 surfaces?
This SKU features the HD Progressive 1.0 surface; prior to January 31, 2025, this series was manufactured using the HD Progressive 1.1 surface.
Can this screen be installed in a non-wall configuration?
While typically wall-mounted, free-standing installation is an option available upon request.
Where can I find technical drawings for submittals?
FullVision CAD and BIM models are available for download to assist with project integration and submittal packages.
