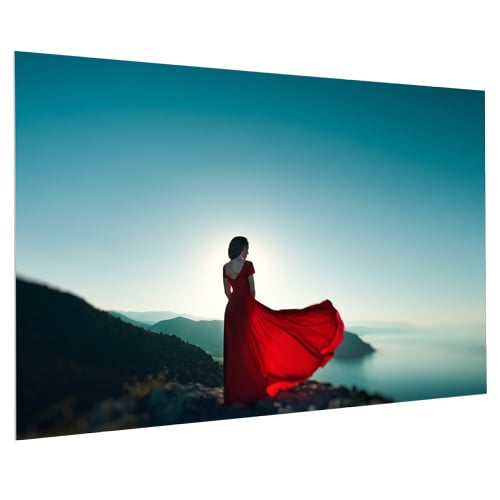

Da-Lite FullVision, 52" x 92" - HD Progressive 1.3
Fixed frame projection screen for 52" x 92" displays, featuring a border-less HD Progressive 1.3 surface
The Da-Lite FC13H52X92 is a border-less, fixed frame projection screen designed to maximize usable viewing area by eliminating traditional borders. This 52" x 92" (106" diagonal) screen is engineered for front projection in environments where a low-profile, modern aesthetic is required. The HD Progressive 1.3 surface is specifically designed to support 4K and Ultra HD projection technology, providing a seamless and exceptionally flat surface for high-resolution data and video. The screen utilizes an aluminum frame measuring 8 cm wide and 3 cm deep, with the surface wrapped around the edge and secured to the rear with Velcro®. This unit is TAA compliant and is primarily intended for wall applications, though it can be ceiling-mounted by rotating the included brackets. For professional submittals, the FullVision Instruction Manual and Product Information Sheet provide technical installation guidance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 106 in (269.2 cm) |
| Shipping Dimensions | 100" x 12.5" x 5.5" (254 x 31.8 x 14 cm) |
| Shipping Weight | 38 lbs (17.2 kg) |
| Size | 52" x 92" or 106" diagonal |
| Application | Wall |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
All other specifications 5
| Screen Surface Features | High Resolution |
| Screen Type | Fixed Frame |
| Surface | HD Progressive 1.3 |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
Questions about this part
Will the Da-Lite FC13H52X92 work for 4K projection?
Yes, this model features the HD Progressive 1.3 surface, which is designed to maximize the performance of 4K and Ultra HD projectors.
How is the FullVision screen mounted to a wall?
The screen is mounted close to the wall using the supplied mounting brackets for an inconspicuous, low-profile installation.
Can this screen be installed on a ceiling?
Ceiling installation is possible by rotating the included mounting brackets to accommodate the orientation.
Is this screen TAA compliant for government contracts?
Yes, this product is TAA compliant and is manufactured in the US.
Where can I find the installation instructions for the FC13H52X92?
The FullVision Instruction Manual is available as a PDF document for detailed assembly and installation guidance.
