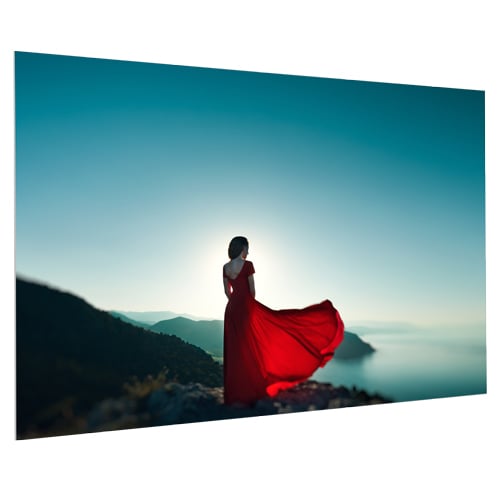

Da-Lite FullVision, 45" x 80" - HD Progressive 1.0
Borderless fixed frame projection screen, 45" x 80" with HD Progressive 1.0 surface and TAA compliance
The Da-Lite FullVision FC10H45X80 is a borderless fixed frame projection screen designed for front projection applications. Measuring 45" x 80" with a 92 in (233.7 cm) diagonal, this 16:9 HDTV format screen features the HD Progressive 1.0 surface, which is engineered to maximize high-resolution 4K and Ultra HD projection technology. The aluminum frame is low-profile, measuring 8 cm wide and 3 cm deep, and is designed for inconspicuous wall mounting using the included mounting brackets. The projection surface is wrapped around the frame and secured to the rear using Velcro®. This TAA compliant, US-made screen provides a seamless, exceptionally flat viewing area for data and video projection. While primarily designed for wall application, this series can be ceiling mounted by rotating the brackets or configured for free-standing use upon request.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 92 in (233.7 cm) |
| Shipping Dimensions | 92.5" x 12.5" x 5.5" (234.9 x 31.8 x 14 cm) |
| Shipping Weight | 34 lbs (15.4 kg) |
| Size | 45" x 80" or 92" diagonal |
| Application | Wall |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
All other specifications 5
| Screen Surface Features | High Resolution |
| Screen Type | Fixed Frame |
| Surface | HD Progressive 1.0 |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
Questions about this part
Will the Da-Lite FC10H45X80 fit my 4K projector?
Yes, the HD Progressive 1.0 surface is specifically designed to maximize the capabilities of 4K and Ultra HD projectors.
How do I install the FullVision FC10H45X80 on a wall?
The screen is mounted close to the wall using the supplied mounting brackets for a low-profile, inconspicuous installation.
Can this screen be used with a ceiling mount?
Yes, ceiling installation is possible by rotating the mounting brackets to suit your configuration.
Is the FC10H45X80 TAA compliant for government projects?
Yes, this model is TAA compliant and is manufactured in the US.
What is the difference between the 1.0 and 1.1 surfaces?
This SKU features the HD Progressive 1.0 surface; previous versions of this product utilized the HD Progressive 1.1 surface until 1/31/25.
