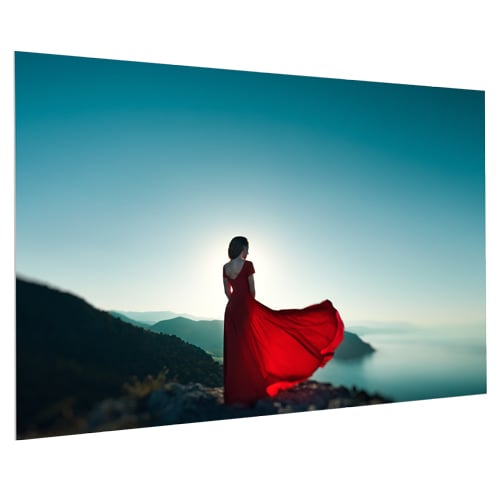

Da-Lite FullVision, 120" x 192" - HD Progressive 1.0
120" x 192" fixed frame screen with HD Progressive 1.0 surface for 226" diagonal front projection
The Da-Lite FullVision FC10H120X192 is a border-less fixed frame projection screen designed for high-resolution front projection applications. This 120" x 192" (226" diagonal) screen features an HD Progressive 1.0 surface, which is engineered to maximize the visual capabilities of 4K and Ultra HD projectors. The surface is wrapped around an aluminum frame that measures 3 cm deep and 8 cm wide, and is secured to the rear of the screen using Velcro®. This low-profile, border-less design allows the screen to blend into its environment when not in use. The frame is lightweight and mounted close to the wall using the supplied mounting brackets for an inconspicuous installation. For installers requiring flexibility, the brackets can be rotated to allow for ceiling installation, though free-standing installation is available upon request. This TAA compliant screen provides a seamless, exceptionally flat viewing area for all types of video and data projection.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 226 in (574 cm) |
| Shipping Dimensions | 147" x 12.5" x 5.5" (373.4 x 31.8 x 14 cm) |
| Shipping Weight | 109 lbs (49.4 kg) |
| Size | 120" x 192" or 226" diagonal |
| Application | Wall |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
All other specifications 5
| Screen Surface Features | High Resolution |
| Screen Type | Fixed Frame |
| Surface | HD Progressive 1.0 |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
Questions about this part
Will the Da-Lite FC10H120X192 work with my 4K projector?
Yes, the HD Progressive 1.0 surface is specifically designed to maximize the performance of 4K and Ultra HD projection technology.
Can this FullVision screen be installed on a ceiling?
Yes, ceiling installation is possible by rotating the mounting brackets provided with the unit.
What are the mounting requirements for the FullVision series?
This is a wall-mounted fixed frame screen that uses supplied mounting brackets to sit close to the wall for a low-profile look.
Is this screen TAA compliant for government projects?
Yes, this product is TAA compliant and is manufactured in the US.
Where can I find the installation manual for the FullVision?
The FullVision Instruction Manual is available as a PDF in the Resources tab to assist with the assembly and mounting process.
