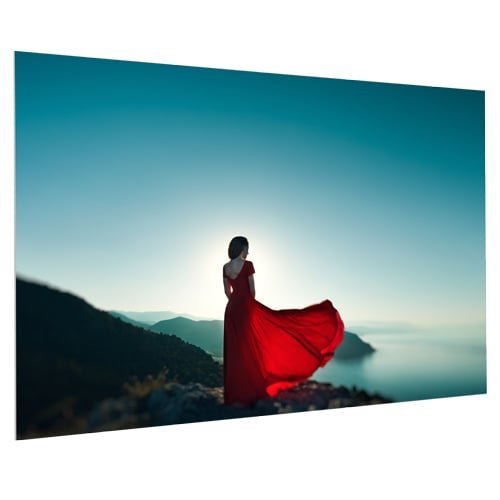

Da-Lite FullVision, 110" x 176" - Parallax Stratos 1.0
Fixed frame projection screen, 110" x 176", featuring Parallax Stratos 1.0 Ambient Light Rejecting surface for high-resolution front projection
The Da-Lite FullVision FC10A110X176 is a border-less fixed frame projection screen designed to maximize the usable viewing area. This 110" x 176" (208" diagonal) screen is optimized for front projection in environments requiring high-resolution output. It features a Parallax Stratos 1.0 surface, which provides Ambient Light Rejecting (ALR) capabilities to enhance image contrast. The lightweight aluminum frame is 8 cm wide and 3 cm deep, with the surface wrapped around the edge and secured to the rear via Velcro®. This low-profile design allows for a clean, inconspicuous wall mount. For submittals, installers can utilize the FullVision Instruction Manual or the provided CAD and BIM models. This model is TAA compliant and manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 208 in (528.3 cm) |
| Shipping Dimensions | 134.5" x 12.5" x 5.5" (341.6 x 31.8 x 14 cm) |
| Shipping Weight | 95 lbs (43.1 kg) |
| Size | 110" x 176" or 208" diagonal |
| Application | Wall |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
All other specifications 5
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Fixed Frame |
| Surface | Parallax Stratos 1.0 |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
Questions about this part
Will the FullVision FC10A110X176 fit my projection setup?
This specific SKU is a 110" x 176" fixed frame screen with a 16:10 Wide aspect ratio, featuring a Parallax Stratos 1.0 surface for front projection.
What is required for mounting the FullVision screen?
The screen is designed for wall application using supplied mounting brackets for a low-profile installation, though ceiling mounting is possible by rotating the brackets.
What makes the Parallax Stratos 1.0 surface unique?
The Parallax Stratos 1.0 surface provides Ambient Light Rejecting (ALR) properties and is designed for high-resolution, seamless projection within the viewing area.
Is this screen suitable for high-resolution 4K or Ultra HD projectors?
Yes, the FullVision series is designed to support high-resolution projection, and this model features the Parallax Stratos 1.0 surface.
Which documents should I use for a project submittal?
Installers can use the FullVision Specification Sheet, the FullVision Product Information Sheet, or the FullVision CSI 3-Part Specifications for technical submittals.
