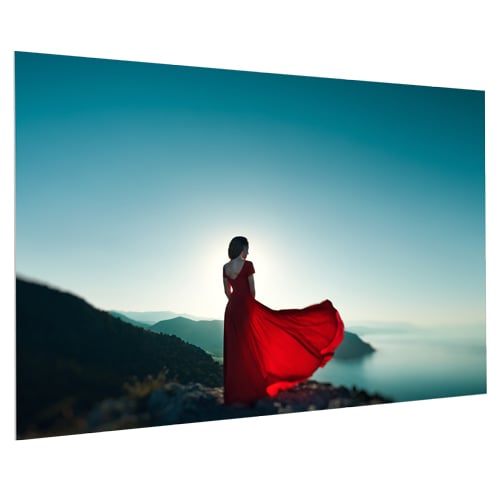

Da-Lite FullVision, 110" x 176" - HD Progressive 1.3
Fixed frame projection screen, 110" x 176" with HD Progressive 1.3 surface for high-resolution 4K and Ultra HD projection
The Da-Lite FullVision FC13H110X176 is a borderless fixed frame projection screen designed to maximize the visible viewing area. This 110" x 176" (208" diagonal) screen features an HD Progressive 1.3 surface, which is engineered to handle high-resolution 4K and Ultra HD projection content. The surface is wrapped around a lightweight aluminum frame that measures 8 cm wide and 3 cm deep, with the material secured to the rear of the frame using Velcro®. This low-profile design allows for an inconspicuous installation close to the wall. The screen is TAA compliant and is built with an innovative corner design to facilitate fast assembly. Because the surface is exceptionally flat and seamless within the viewing area, it is suitable for all types of data and video projection. While this unit is configured for wall application, it can be adapted for ceiling installation by rotating the brackets or used as a free-standing screen upon request.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 208 in (528.3 cm) |
| Shipping Dimensions | 134.5" x 12.5" x 5.5" (341.6 x 31.8 x 14 cm) |
| Shipping Weight | 95 lbs (43.1 kg) |
| Size | 110" x 176" or 208" diagonal |
| Application | Wall |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
All other specifications 5
| Screen Surface Features | High Resolution |
| Screen Type | Fixed Frame |
| Surface | HD Progressive 1.3 |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
Questions about this part
Is the Da-Lite FC13H110X176 compatible with 4K projection?
Yes, the HD Progressive 1.3 surface is specifically designed to maximize the performance of 4K and Ultra HD projectors.
Can this screen be mounted on a ceiling?
Ceiling installation is possible by rotating the provided mounting brackets to suit your installation requirements.
What are the dimensions of the screen frame?
This model has a 110" x 176" size (208" diagonal) and features an aluminum frame that is 8 cm wide and 3 cm deep.
How is the screen surface attached to the frame?
The projection surface is wrapped around the aluminum frame and is secured to the rear of the screen using Velcro®.
What documentation is available for submittals?
You can access the FullVision Instruction Manual, Product Information Sheet, and CAD/BIM models in the Resources tab.
