Da-Lite FullVision, 110" x 176" - HD Progressive 1.0
Borderless fixed frame projection screen for 110" x 176" displays, featuring HD Progressive 1.0 surface for high-resolution front projection

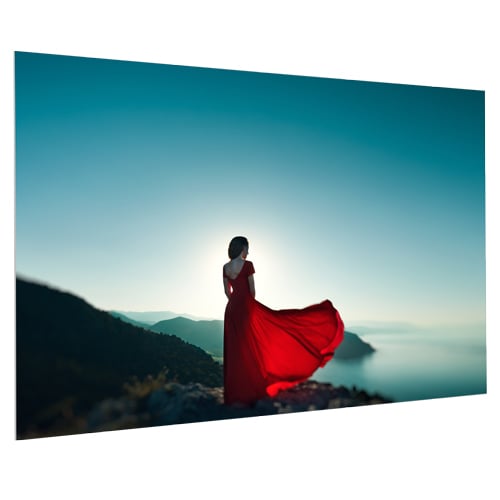

The Da-Lite FC10H110X176 is a borderless, fixed frame projection screen designed to maximize the usable viewing area by eliminating traditional screen edges. This 110" x 176" (208" diagonal) screen features the HD Progressive 1.0 surface, a high-resolution technology optimized for 4K and Ultra HD projection performance. The screen is constructed with an aluminum frame that is 8 cm wide and 3 cm deep, and the surface is wrapped around the frame and secured to the rear using Velcro®. Designed for a low-profile installation, this wall-mounted screen sits close to the wall for an inconspicuous presence when not in use. The assembly process is simplified by an innovative corner design and includes mounting brackets for installation. For high-end video and data projection, this seamless and exceptionally flat surface ensures consistent image quality across the entire viewing area.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 208 in (528.3 cm) |
| Shipping Dimensions | 134.5" x 12.5" x 5.5" (341.6 x 31.8 x 14 cm) |
| Shipping Weight | 95 lbs (43.1 kg) |
| Size | 110" x 176" or 208" diagonal |
| Application | Wall |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
All other specifications 5
| Screen Surface Features | High Resolution |
| Screen Type | Fixed Frame |
| Surface | HD Progressive 1.0 |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
Questions about this part
Is the Da-Lite FC10H110X176 suitable for 4K projection?
Yes, the HD Progressive 1.0 surface is specifically designed to maximize the capabilities of 4K and Ultra HD projectors.
How is the screen surface attached to the aluminum frame?
The projection surface is wrapped around the 8 cm x 3 cm aluminum frame and is secured to the rear of the screen using Velcro®.
Can this FullVision screen be installed on a ceiling?
Yes, ceiling installation is possible by rotating the mounting brackets; free-standing installation is also available upon request.
What is the total viewing area of this screen?
This model provides a 110" x 176" viewing area, which results in a 208" diagonal measurement.
What documentation is available for submittals?
You can access the FullVision Instruction Manual, the Product Information Sheet, and CAD/BIM models through the Resources tab for technical submittals.
