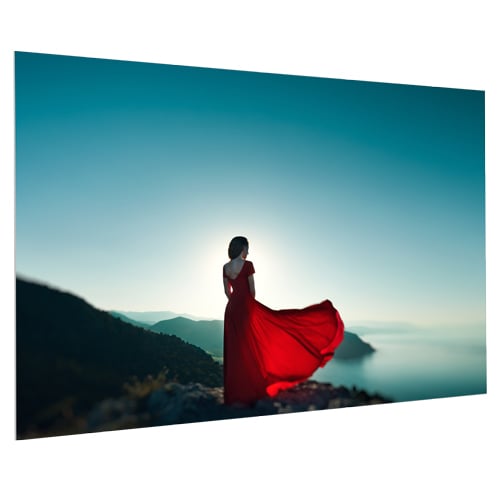

Da-Lite FullVision, 108" x 192" - HD Progressive 1.3
Border-less fixed frame screen with HD Progressive 1.3 surface for 108" x 192" front projection applications
The Da-Lite FullVision FC13H108X192 is a border-less fixed frame projection screen designed for high-resolution front projection. This 108" x 192" screen provides a seamless viewing area, allowing the entire surface to be utilized for content. It features the HD Progressive 1.3 surface, which is engineered to maximize the performance of 4K and Ultra HD projectors. The surface is wrapped around a lightweight aluminum frame measuring 8 cm wide and 3 cm deep, and it is secured to the rear of the frame using Velcro®. This low-profile design allows for an inconspicuous wall installation using the included mounting brackets. While this model is designed for wall applications, the brackets can be rotated to allow for ceiling installation. For free-standing setups, please contact us regarding optional requirements. The frame is engineered with an innovative corner design to ensure rapid assembly and an exceptionally flat surface for all types of video and data projection.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 220 in (558.8 cm) |
| Shipping Dimensions | 147" x 12.5" x 5.5" (373.4 x 31.8 x 14 cm) |
| Shipping Weight | 104 lbs (47.2 kg) |
| Size | 108" x 192" or 220" diagonal |
| Application | Wall |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
All other specifications 5
| Screen Surface Features | High Resolution |
| Screen Type | Fixed Frame |
| Surface | HD Progressive 1.3 |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
Questions about this part
Can the Da-Lite FullVision FC13H108X192 be ceiling mounted?
Yes, the included mounting brackets can be rotated to allow for ceiling installation rather than the standard wall application.
What is the surface type on this 108" x 192" FullVision screen?
This SKU features the HD Progressive 1.3 surface, which is specifically designed to maximize the technology of 4K and Ultra HD projectors.
How do I install the projection surface to the frame?
The projection surface is wrapped around the 8 cm wide aluminum frame and is attached to the rear using Velcro®.
Is this screen TAA compliant for federal projects?
Yes, the FC13H108X192 is TAA compliant and is manufactured in the United States.
Which installation documents are available for submittals?
Installers can access the FullVision Instruction Manual for installation details or the FullVision Specification Sheet for technical data.
