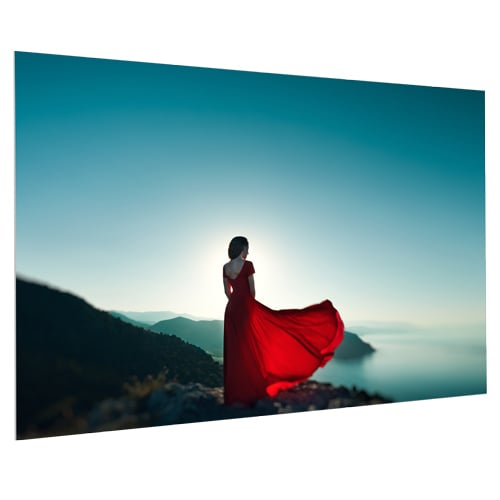

Da-Lite FullVision, 100" x 160" - Parallax Stratos 1.0
Fixed frame projection screen, 100" x 160" size, featuring Parallax Stratos 1.0 Ambient Light Rejecting surface
The Da-Lite FullVision FC10A100X160 is a border-less fixed frame projection screen designed for front projection applications where the entire surface must be utilized for the image. This 100" x 160" (189" diagonal) screen features a Wide 16:10 format and is equipped with a Parallax Stratos 1.0 surface, which provides Ambient Light Rejecting (ALR) and High Resolution capabilities. The aluminum frame is 8 cm wide and 3 cm deep, with the screen surface wrapped around the frame and secured via Velcro® to the rear. This low-profile system is mounted close to the wall for an inconspicuous installation, though it can also be ceiling-mounted by rotating the brackets or free-standing upon request. The FullVision series is TAA compliant and is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 189 in (480.1 cm) |
| Shipping Dimensions | 122" x 12.5" x 5.5" (309.9 x 31.8 x 14 cm) |
| Shipping Weight | 82 lbs (37.2 kg) |
| Size | 100" x 160" or 189" diagonal |
| Application | Wall |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
All other specifications 5
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Fixed Frame |
| Surface | Parallax Stratos 1.0 |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
Questions about this part
Will the Da-Lite FullVision FC10A100X160 fit my projection setup?
This model is a 100" x 160" Wide (16:10) screen designed specifically for front projection and utilizes the Parallax Stratos 1.0 Ambient Light Rejecting surface.
Can this screen be installed on a ceiling?
Yes, ceiling installation is possible by rotating the included mounting brackets, though it is primarily designed for wall application.
Is this screen suitable for 4K or Ultra HD content?
Yes, the Parallax Stratos 1.0 surface is designed to be seamless within the viewing area and is exceptionally flat for high-resolution video projection.
What is the difference between this and other FullVision surfaces?
This SKU features the Parallax Stratos 1.0 surface, which is one of several options including HD Progressive 1.0, 1.1 Contrast, and 1.3.
Which documents are available for submittals?
You can access the FullVision Instruction Manual, Specification Sheet, and CAD/BIM models through the Resources tab for installation and planning.
