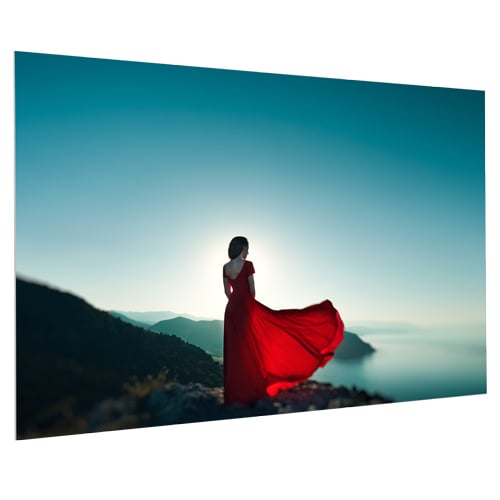

Da-Lite FullVision, 100" x 160" - HD Progressive 1.0
Fixed frame projection screen with a borderless HD Progressive 1.0 surface, measuring 100" x 160" (189" diagonal)
The Da-Lite FullVision FC10H100X160 is a borderless fixed frame projection screen that maximizes the usable viewing area by eliminating the traditional outer frame obstruction. This 100" x 160" (189" diagonal) screen utilizes an HD Progressive 1.0 surface, a high-resolution technology specifically designed to enhance 4K and Ultra HD projection performance. The lightweight aluminum frame features a 8 cm wide by 3 cm deep profile, which is wrapped with the projection surface and secured to the rear of the frame using Velcro®. Designed for an inconspicuous wall installation, the screen sits close to the mounting surface via supplied brackets. For technical submittals, installers can reference the FullVision Instruction Manual or the provided CAD and BIM models. This TAA compliant, US-made solution is available in a wide aspect ratio of 16:10 for versatile data and video projection applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 189 in (480.1 cm) |
| Shipping Dimensions | 122" x 12.5" x 5.5" (309.9 x 31.8 x 14 cm) |
| Shipping Weight | 82 lbs (37.2 kg) |
| Size | 100" x 160" or 189" diagonal |
| Application | Wall |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
All other specifications 5
| Screen Surface Features | High Resolution |
| Screen Type | Fixed Frame |
| Surface | HD Progressive 1.0 |
| TAA Compliant | Yes |
| Certifications | TAA |
Resources
Questions about this part
Will the FullVision FC10H100X160 work with 4K projectors?
Yes. The HD Progressive 1.0 surface is specifically engineered to maximize the visual technology of 4K and Ultra HD projectors.
How do I mount this fixed frame screen?
The unit is designed for wall mounting using the supplied brackets for a low-profile installation. Ceiling mounting is possible by rotating the brackets, and free-standing options are available upon request.
What are the dimensions of the FullVision 100" x 160" screen?
The screen measures 100" x 160" with an 189" diagonal. The aluminum frame itself is 8 cm wide and 3 cm deep.
Is the FullVision series TAA compliant?
Yes, this model is TAA compliant and is manufactured in the USA.
Where can I find CAD or BIM models for this screen?
Technical files, including FullVision CAD Models and FullVision Series BIM Models, are available in the Resources tab for system integration.
