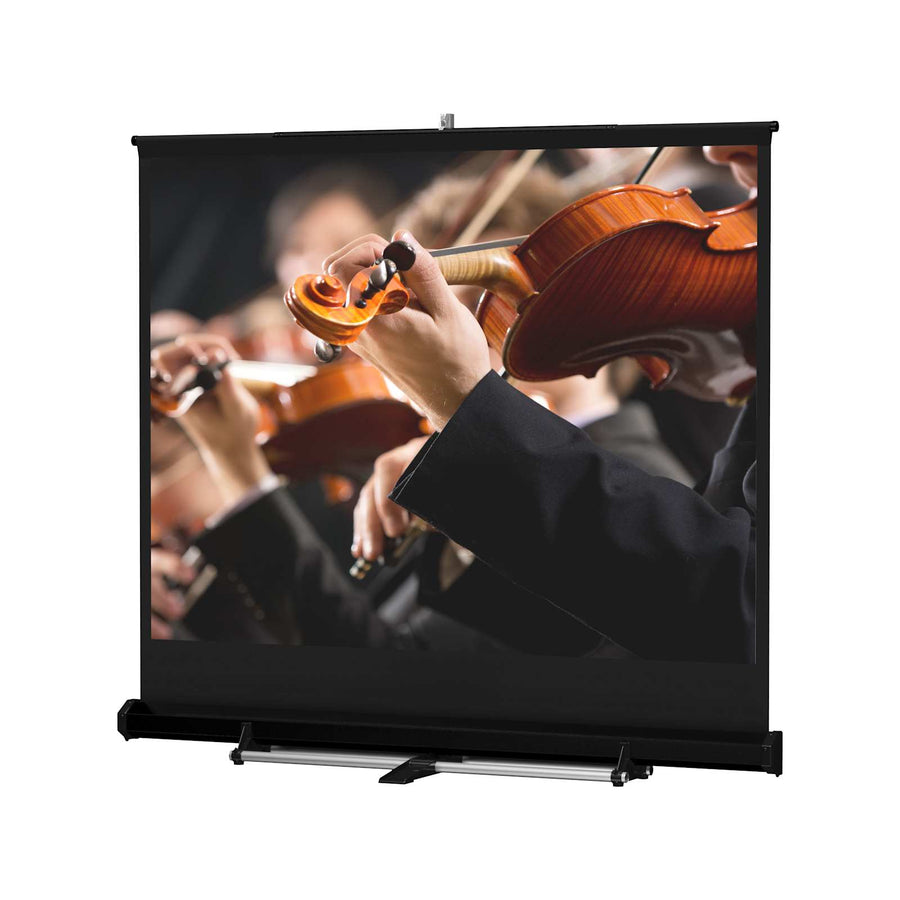

Da-Lite Floor Model C, 69" x 92" with Matte White - 98040
Portable 120 in (304.8 cm) diagonal projection screen with Matte White surface and 69 in (175.3 cm) height
The Da-Lite 98040 is a portable Floor Model C projection screen designed for rapid deployment in rental, stage, and hospitality environments. This 120 in (304.8 cm) diagonal unit features a 69 in (175.3 cm) x 92 in (233.7 cm) screen size with a 4:3 video format. It utilizes a non-tensioned Matte White surface, which provides a seamless appearance for front projection applications up to 10' high. This specific SKU features a black case style and is TAA compliant. Because this is a portable floor model, it requires the Da-Lite Floor Stand (SKU 40959), which is sold separately, for stable upright use. The screen pulls up from the case using a reduced spring tension system, making it easier to raise and lower during setup and teardown.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 120 in (304.8 cm) |
| Screen Height | 69 in (175.3 cm) |
| Shipping Weight | 49 lbs (22.2 kg) |
| Size | 69" x 92" or 120" diagonal |
| Application | Portable |
| Case Style | Black |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
All other specifications 5
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Portable |
| Surface | Matte White (non-tensioned) |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is required to use the Da-Lite 98040 as a floor stand?
The Da-Lite Floor Stand (SKU 40959) is required for floor use but is sold separately from this screen.
Will this screen work for front projection?
Yes, the 98040 is designed for front projection on a non-tensioned Matte White surface.
Is the Da-Lite 98040 TAA compliant?
Yes, this model is TAA compliant and is manufactured in the US.
What dimensions are the 120 inch diagonal screen?
This screen has a 69 in (175.3 cm) height and a 92 in (233.7 cm) width for a total 120 in (304.8 cm) diagonal.
Which documents are available for submittals?
You can access the Floor Model C Specification Sheet, Installation Manual, and CSI 3-Part Specifications in the Resources tab.
