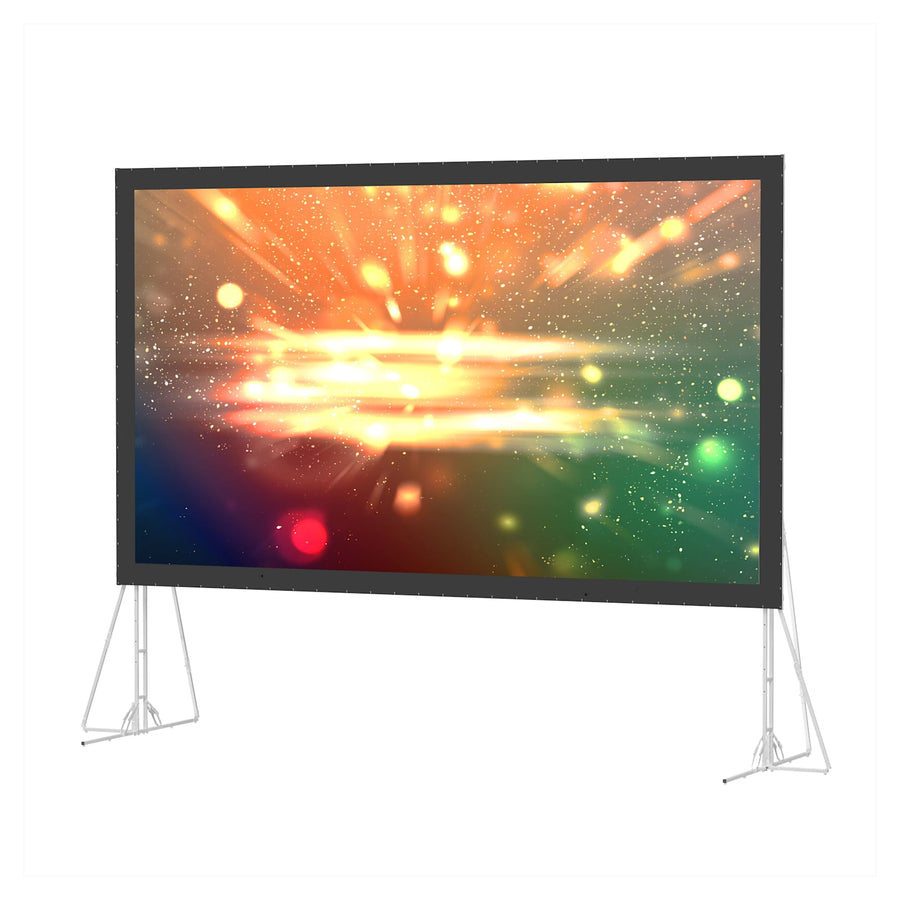

Da-Lite Fast-Fold Truss Frame Screens, 180" x 318" with HD Progressive ReView 09 - 99865
180" x 318" rear projection truss frame screen with HD Progressive ReView 0.9 surface for large venue staging
The Da-Lite 99865 is a professional-grade Fast-Fold Truss Frame Screen designed for high-demand rental and staging environments. Measuring 180" x 318" (367" diagonal), this large venue solution utilizes 1” welded aluminum tubing to create a rugged 6” x 1” truss frame and legs. This configuration allows for efficient, tool-free assembly and teardown using Speedy Cranks. This specific model features an HD Progressive ReView 0.9 surface, which is optimized for high-resolution rear projection. For versatile installation, the frame allows the surface to be adjusted up or down in 6" increments and can accommodate interchangeable front or rear projection surfaces. To facilitate easy transport and organized storage during mobile events, the entire system includes a durable polyethylene carrying case. This TAA compliant screen provides a reliable, high-resolution display option for large-scale temporary installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 367 in (932.2 cm) |
| Screen Height | 180 in (457.2 cm) |
| Shipping Weight | 325 lbs (147.4 kg) |
| Size | 180" x 318" or 367" diagonal |
| Application | Portable |
| Federal Ops Country of Origin | US |
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
All other specifications 5
| Screen Surface Features | High Resolution |
| Screen Type | Portable |
| Special Features | Large Venue |
| Surface | HD Progressive ReView 0.9 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 180" x 318" Black Drapes - Truss
36645$5,565.60
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 180" x 318" Gray Drapes - Truss
36645GR$5,565.60
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 180" x 318" with Da-Mat - 99821
99821$4,805.60
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 180" x 318" with Da-Tex - 99825
99825$7,528.00
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 180" x 318" with HD Progressive ReView 0.9 - 99841
99841$7,528.00
Da-Lite Fast-Fold Skirt, 180" x 318" Gray Skirt
36792GR$2,381.60
Da-Lite Fast-Fold Skirt, 180" x 318" Black Skirt
36792$2,381.60
Questions about this part
Is this screen suitable for rear projection?
Yes, this 99865 model is configured with an HD Progressive ReView 0.9 surface specifically designed for rear projection.
How do I adjust the height of the screen once the truss is set?
The Fast-Fold Truss Frame allows for vertical adjustments in 6" increments to achieve the desired screen height.
What accessories can I add to the truss frame for a professional look?
You can enhance the aesthetic with a Drapery Presentation Kit (SKU 36645 or 36645GR) or a Fast-Fold Skirt (SKU 36792 or 36792GR).
Can I buy replacement surfaces for this specific truss frame?
Yes, replacement surfaces including Da-Mat (99821), Da-Tex (99825), or HD Progressive ReView 0.9 (99841) are available for the 180" x 318" frame.
Is this product TAA compliant for government contracts?
Yes, this Da-Lite screen is TAA compliant and was manufactured in the US.
