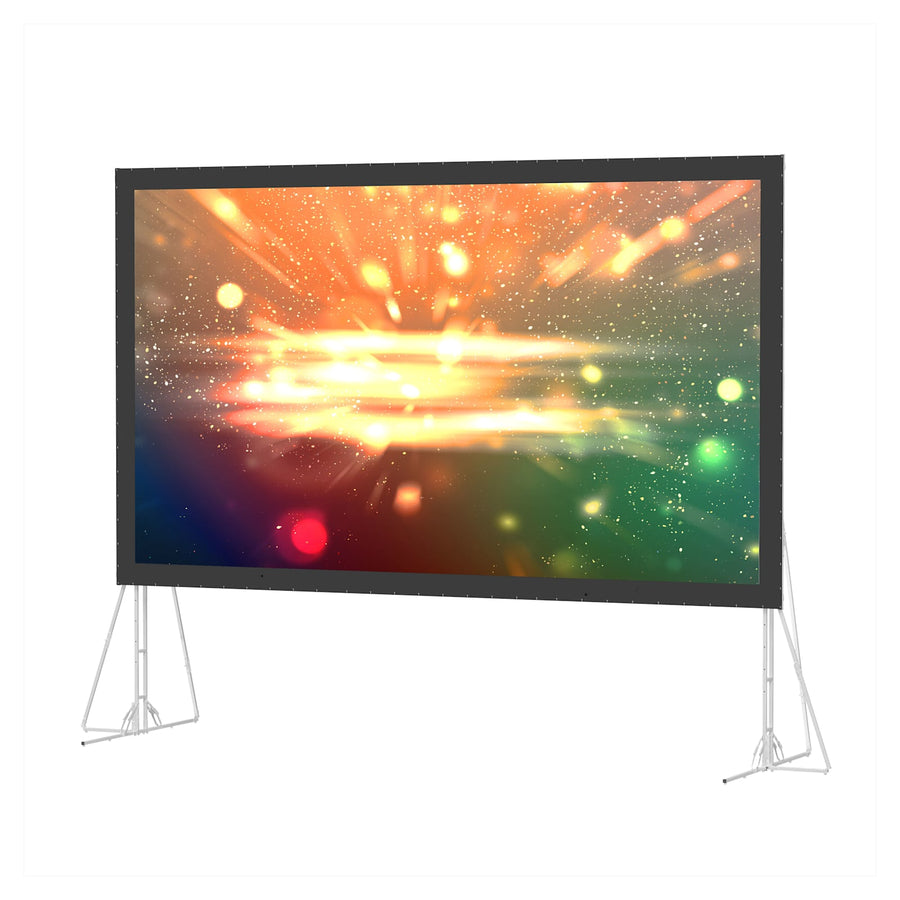

Da-Lite Fast-Fold Truss Frame Screens, 180" x 318" with DaTex - 99849N
Large venue portable 180" x 318" truss frame screen with Da-Tex surface and 16:9 HDTV format
The Da-Lite 99849N is a portable Fast-Fold® Truss Frame Screen designed for high-demand rental and staging environments. This large venue solution features a 180" x 318" (457.2 cm x 807.7 cm) screen with a 367" (932.2 cm) diagonal and utilizes a Da-Tex surface for standard resolution viewing. The frame is constructed from welded 1” aluminum tubing, forming a 6” x 1” truss structure designed to bolt together using Speedy Cranks for efficient, tool-free setup and teardown. This specific SKU is provided as a screen option with no case and no legs included. The series is highly versatile, allowing for interchangeable front and rear projection surfaces that can be adjusted in 6-inch increments. This TAA compliant product is manufactured in the US and is intended for indoor professional applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 367 in (932.2 cm) |
| Screen Height | 180 in (457.2 cm) |
| Shipping Weight | 325 lbs (147.4 kg) |
| Size | 180" x 318" or 367" diagonal |
| Application | Portable |
| Federal Ops Country of Origin | US |
| Screen Format | HDTV (16:9) |
| Screen Options | No Case and No Legs |
All other specifications 5
| Screen Surface Features | Standard Resolution |
| Screen Type | Portable |
| Special Features | Large Venue |
| Surface | Da-Tex |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 180" x 318" Black Drapes - Truss
36645$5,565.60
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 180" x 318" Gray Drapes - Truss
36645GR$5,565.60
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 180" x 318" with Da-Mat - 99821
99821$4,805.60
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 180" x 318" with Da-Tex - 99825
99825$7,528.00
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 180" x 318" with HD Progressive ReView 0.9 - 99841
99841$7,528.00
Da-Lite Fast-Fold Skirt, 180" x 318" Gray Skirt
36792GR$2,381.60
Da-Lite Fast-Fold Skirt, 180" x 318" Black Skirt
36792$2,381.60
Questions about this part
Is the Da-Lite 99849N TAA compliant?
Yes, this product is TAA compliant and manufactured in the US.
What is included with the 99849N screen?
This SKU is specified as having no case and no legs included in the package.
Can I use this screen for rear projection?
Yes, the Fast-Fold Truss Frame Series allows for interchangeable front and rear projection surfaces.
What accessories are compatible with the 180" x 318" Truss Frame?
You can add a Drapery Presentation Kit (SKU 36645 or 36645GR) or a skirt (SKU 36792 or 36792GR) to this screen.
How do I adjust the height of the screen surface?
The surfaces can be adjusted up or down in 6-inch increments to accommodate your specific setup requirements.
