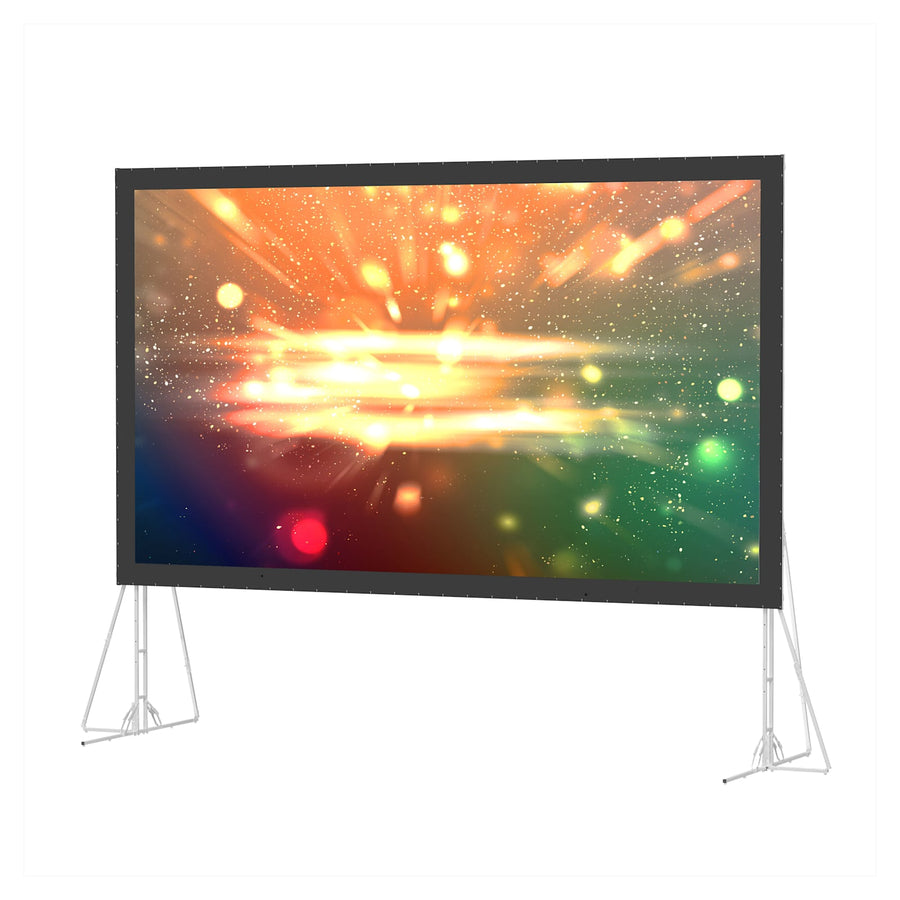

Da-Lite Fast-Fold Truss Frame Screens, 180" x 318" with DaMat - 99845
Portable 180" x 318" truss frame screen with Da-Mat surface, ideal for large venue staging and rental environments
The Da-Lite 99845 is a portable Fast-Fold Truss Frame Screen designed for demanding rental and staging environments where versatility is essential. This large venue screen features a 180" x 318" dimension, providing a 367" diagonal viewing area in a 16:9 HDTV format. The frame is constructed from welded 1" aluminum tubing that forms 6" x 1" truss segments, allowing the legs and frames to be folded for efficient transport. Assembly is streamlined using Speedy Cranks, which facilitate rapid setup and teardown without the need for tools. The included Da-Mat surface provides standard resolution capabilities, and the screen configuration allows for both front and rear projection. Installers can adjust the surface height in 6" increments to meet specific sightline requirements. For protected transport and storage, the system includes a durable polyethylene carrying case. This TAA compliant product is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Screen Diagonal | 367 in (932.2 cm) |
| Screen Height | 180 in (457.2 cm) |
| Shipping Weight | 325 lbs (147.4 kg) |
| Size | 180" x 318" or 367" diagonal |
| Application | Portable |
| Federal Ops Country of Origin | US |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Portable |
| Special Features | Large Venue |
| Surface | Da-Mat |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 180" x 318" Black Drapes - Truss
36645$5,565.60
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 180" x 318" Gray Drapes - Truss
36645GR$5,565.60
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 180" x 318" with Da-Mat - 99821
99821$4,805.60
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 180" x 318" with Da-Tex - 99825
99825$7,528.00
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 180" x 318" with HD Progressive ReView 0.9 - 99841
99841$7,528.00
Da-Lite Fast-Fold Skirt, 180" x 318" Gray Skirt
36792GR$2,381.60
Da-Lite Fast-Fold Skirt, 180" x 318" Black Skirt
36792$2,381.60
Questions about this part
Will this screen fit my projection needs?
The 99845 features a 16:9 HDTV format and is compatible with both front and rear projection. The included Da-Mat surface is designed for standard resolution applications.
How is the Fast-Fold Truss frame assembled?
The 99845 uses welded 1" aluminum tubing to create 6" x 1" truss frames and legs. These components bolt together using Speedy Cranks, allowing for setup without tools.
Can the surface height be adjusted after installation?
Yes, the Fast-Fold Truss Frame Screen allows you to adjust the surface up or down in 6" increments to accommodate your venue's specific requirements.
What accessories are available to customize the look of this screen?
You can enhance the professional aesthetic using the Drapery Presentation Kit (SKUs 36645 or 36645GR) or add a Fast-Fold Skirt (SKUs 36792 or 36792GR) in black or gray.
Is this screen suitable for outdoor use?
No, this product is not intended for outdoor use. Please refer to the Da-Lite 'Not for Outdoor Use' warning document for safety information.
