Da-Lite Fast-Fold Truss Frame Screens, 144" x 256" with DaMat - 99844
Large venue truss frame screen with 144" x 256" Da-Mat surface and 16:9 HDTV aspect ratio

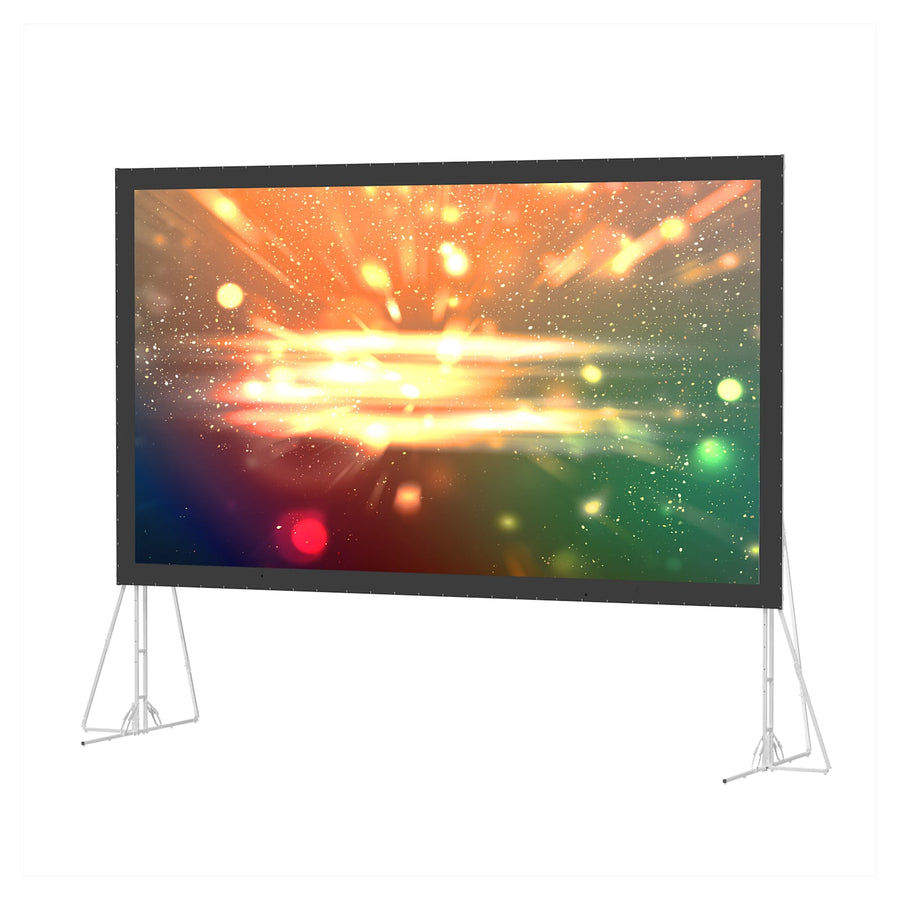

The Da-Lite 99844 is a portable truss frame screen designed for high-demand rental and staging environments. This 144" x 256" (294" diagonal) large venue screen features a 16:9 HDTV format and is equipped with a Da-Mat surface for standard resolution projection. The rugged construction utilizes 1” aluminum tubing, which is welded into 6” x 1” truss frames and legs. For efficient assembly, the frames use Speedy Cranks that allow for tool-free setup and teardown. This system offers significant versatility, as the front and rear projection surfaces are interchangeable and can be adjusted vertically in 6-inch increments. The assembly includes a durable polyethylene carrying case for secure transport and storage in mobile environments. This SKU is TAA compliant and is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Screen Diagonal | 294 in (746.8 cm) |
| Screen Height | 144 in (365.8 cm) |
| Shipping Weight | 240 lbs (108.9 kg) |
| Size | 144" x 256" or 294" diagonal |
| Application | Portable |
| Federal Ops Country of Origin | US |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Portable |
| Special Features | Large Venue |
| Surface | Da-Mat |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 144" x 256" Gray Drapes - Truss
36641GR$5,116.80
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 144" x 256" Black Drapes - Truss
36641$5,116.80
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 144" x 256" with Da-Tex - 99824
99824$4,933.60
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 144" x 256" with HD Progressive ReView 0.9 - 99840
99840$4,933.60
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 144" x 256" with Da-Mat - 99820
99820$3,165.60
Da-Lite Fast-Fold Skirt, 144" x 256" Gray Skirt
36788GR$2,180.80
Da-Lite Fast-Fold Skirt, 144" x 256" Black Skirt
36788$2,180.80
Questions about this part
What is the screen size and aspect ratio for the 99844?
The 99844 features a 144" x 256" surface, which is a 294" diagonal screen in a 16:9 HDTV format.
Can the projection surface be adjusted?
Yes, the screen can be adjusted up or down in 6-inch increments to accommodate different setup heights.
What tools are required to assemble the Fast-Fold Truss Frame?
The frames utilize Speedy Cranks, allowing for efficient setup and teardown without the need for tools.
Can I replace the Da-Mat surface with a different option?
Yes, you can purchase replacement surfaces such as Da-Tex (SKU 99824) or HD Progressive ReView 0.9 (SKU 99840) for this frame.
What accessories are available for a professional stage aesthetic?
You can add a Drapery Presentation Kit (available in Black SKU 36641 or Gray SKU 36641GR) or a Skirt (SKU 36788 or 36788GR) to this setup.
