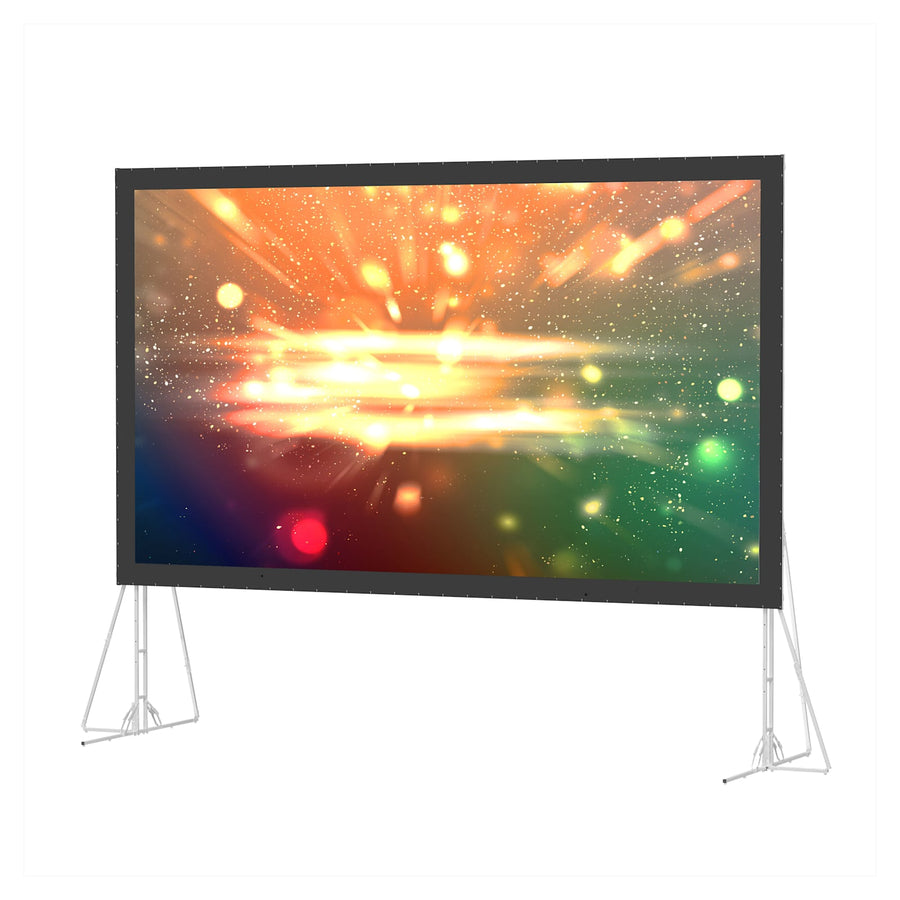

Da-Lite Fast-Fold Truss Frame Screens, 120" x 216" with HD Progressive ReView 09 - 87320N
120" x 216" rear projection truss screen, 245" diagonal, featuring HD Progressive ReView 0.9 high resolution surface
The Da-Lite 87320N is a portable Fast-Fold Truss Frame Screen designed for high-demand rental and staging environments. This large venue solution features a 120" x 216" surface with a 245" diagonal, optimized for rear projection using the HD Progressive ReView 0.9 high-resolution surface. The frame is constructed from welded 1” aluminum tubing, forming a 6” x 1” truss structure that is both rugged and lightweight for transport. For efficient setup and tear down in the field, these folding truss frames and legs bolt together using Speedy Cranks, requiring no tools for assembly. This specific configuration is the 87320N, which comes as a screen without a carrying case or legs included. For a professional stage-front aesthetic, the system is compatible with the Da-Lite Drapery Presentation Kit (SKU 36637 or 36637GR). This TAA compliant system is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 245 in (622.3 cm) |
| Screen Height | 120 in (304.8 cm) |
| Shipping Weight | 147 lbs (66.7 kg) |
| Size | 120" x 216" or 245" diagonal |
| Application | Portable |
| Federal Ops Country of Origin | US |
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
All other specifications 6
| Screen Options | No Case and No Legs |
| Screen Surface Features | High Resolution |
| Screen Type | Portable |
| Special Features | Large Venue |
| Surface | HD Progressive ReView 0.9 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 120" x 216" Gray Drapes - Truss
36637GR$4,216.00
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 120" x 216" Black Drapes - Truss
36637$4,216.00
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 120" x 216" with Da-Mat - 87292
87292$2,296.00
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 120" x 216" with HD Progressive ReView 0.9 - 87324
87324$3,528.00
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 120" x 216" with Da-Tex - 87300
87300$3,528.00
Da-Lite Fast-Fold Skirt, 120" x 216" Gray Skirt
36784GR$1,981.60
Da-Lite Fast-Fold Skirt, 120" x 216" Black Skirt
36784$1,981.60
Questions about this part
Does the 87320N include the carrying case and legs?
No, this specific SKU is listed with Screen Options as No Case and No Legs. A rugged carrying case is a separate requirement for transport.
What projection type is best for this screen surface?
The 87320N is configured for Rear Projection using the HD Progressive ReView 0.9 high-resolution surface.
Can I add drapery to this truss screen?
Yes, you can add a professional stage-front aesthetic using the Da-Lite Drapery Presentation Kit in Black (SKU 36637) or Gray (SKU 36637GR).
How do I adjust the height of the screen surface?
The surfaces for these truss frames can be adjusted up or down in 6-inch increments to meet your specific rigging needs.
What do I need for submittals or installation?
Installers can refer to the Fast-Fold Truss Instructions for assembly or the Fast-Fold Truss Specification Sheet for technical details.
