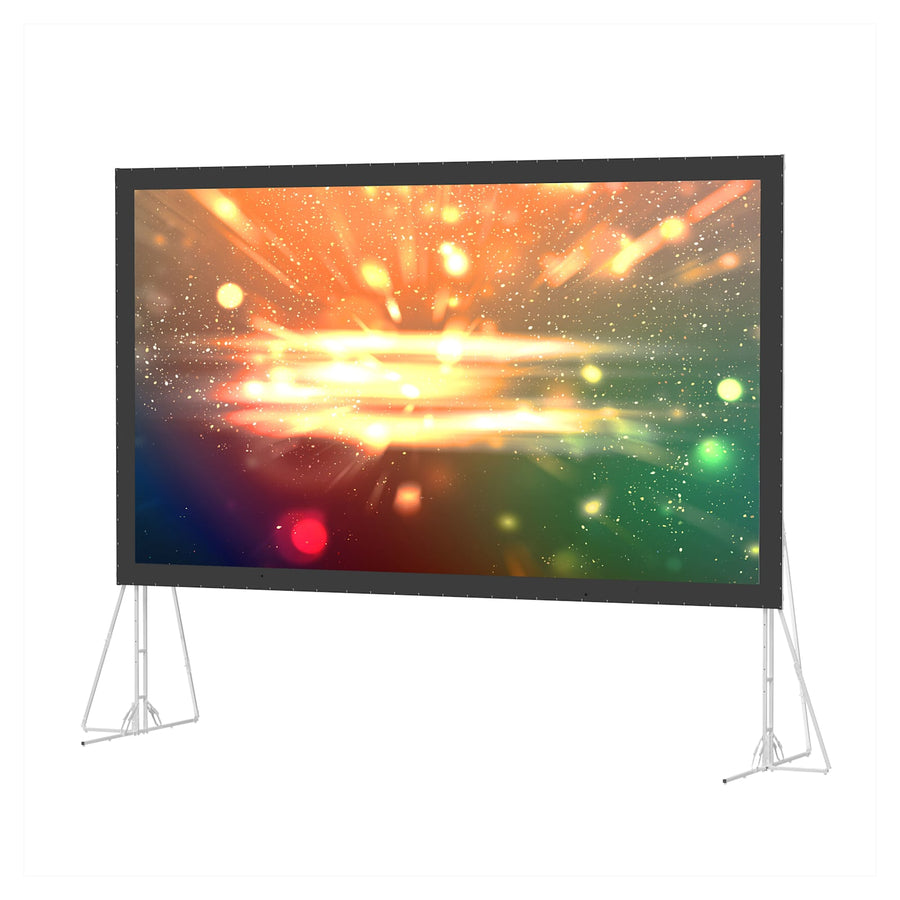

Da-Lite Fast-Fold Truss Frame Screens, 120" x 216" with DaTex - 87296N
Portable 120" x 216" truss frame screen with Da-Tex surface, designed for large venue rental and staging environments
The Da-Lite 87296N Fast-Fold Truss Frame Screen is engineered for the rigors of rental and staging environments, offering a durable solution for large venue applications. This portable system features a 120" x 216" screen with a 245 in (622.3 cm) diagonal, utilizing a Da-Tex surface for standard resolution projection. The frame is constructed from welded 1" aluminum tubing that forms 6" x 1" truss frames and legs. For efficient setup and teardown, the frames bolt together using Speedy Cranks, which eliminates the need for tools during assembly. This specific configuration is listed with No Case and No Legs. The 16:9 HDTV screen format is ideal for modern digital content. This product is TAA compliant and manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 245 in (622.3 cm) |
| Screen Height | 120 in (304.8 cm) |
| Shipping Weight | 147 lbs (66.7 kg) |
| Size | 120" x 216" or 245" diagonal |
| Application | Portable |
| Federal Ops Country of Origin | US |
| Screen Format | HDTV (16:9) |
| Screen Options | No Case and No Legs |
All other specifications 5
| Screen Surface Features | Standard Resolution |
| Screen Type | Portable |
| Special Features | Large Venue |
| Surface | Da-Tex |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 120" x 216" Gray Drapes - Truss
36637GR$4,216.00
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 120" x 216" Black Drapes - Truss
36637$4,216.00
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 120" x 216" with Da-Mat - 87292
87292$2,296.00
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 120" x 216" with HD Progressive ReView 0.9 - 87324
87324$3,528.00
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 120" x 216" with Da-Tex - 87300
87300$3,528.00
Da-Lite Fast-Fold Skirt, 120" x 216" Gray Skirt
36784GR$1,981.60
Da-Lite Fast-Fold Skirt, 120" x 216" Black Skirt
36784$1,981.60
Questions about this part
Is the Da-Lite 87296N compatible with other surfaces?
Yes, this truss frame is compatible with replacement surfaces such as Da-Mat (87292), HD Progressive ReView 0.9 (87324), or Da-Tex (87300).
What accessories are needed to complete this screen setup?
This SKU is listed as No Case and No Legs; you may need to purchase a Da-Lite carrying case or legs separately to complete your installation.
Can I add drapery to the 87296N screen?
Yes, you can enhance the aesthetic with a Drapery Presentation Kit, such as the black (36784) or gray (36784GR) skirt or full drapes (36784 / 36637GR).
How do I adjust the height of the screen surface?
The Fast-Fold Truss frames allow the projection surface to be adjusted up or down in 6 inch increments to meet your specific venue requirements.
What documentation is available for submittals?
Installers can access the Fast-Fold Truss Specification Sheet or the Fast-Fold Truss Instructions PDF for technical and installation details.
