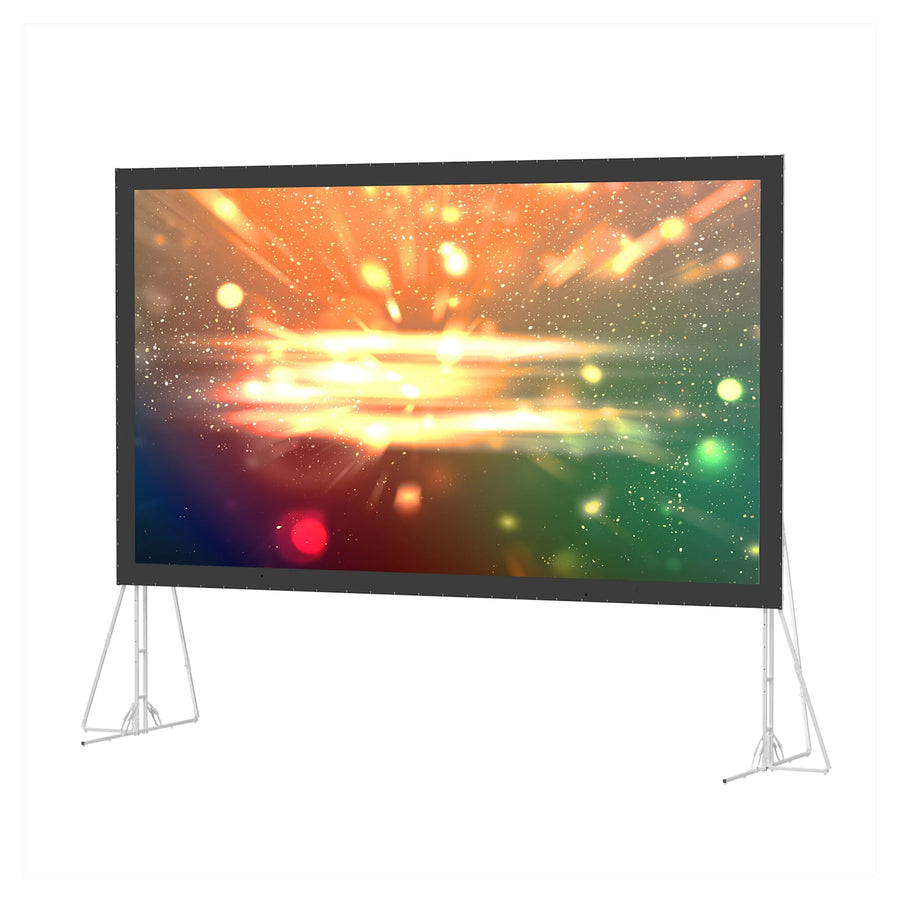

Da-Lite Fast-Fold Truss Frame Screens, 120" x 216" with DaTex - 87296
Large venue portable truss frame screen, 120" x 216" (245" diagonal) with Da-Tex surface, designed for rental and staging environments
The Da-Lite 87296 is a portable Fast-Fold® Truss Frame Screen designed specifically for the rigors of rental and staging environments. This 120" x 216" (245" diagonal) large venue screen features a Da-Tex surface optimized for standard resolution. The frame is constructed from welded 1” aluminum tubing that forms 6” x 1” truss frames and legs, allowing for a versatile setup in professional environments. Because it is a modular system, the frames bolt together using Speedy Cranks, which enables efficient assembly and tear-down without the need for tools. The 16:9 HDTV format is ideal for modern video content. This TAA compliant solution includes a rugged polyethylene carrying case for protected transport and storage. Users can interchange front and rear projection surfaces, with the ability to adjust them up or down in 6" increments to meet specific venue requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Screen Diagonal | 245 in (622.3 cm) |
| Screen Height | 120 in (304.8 cm) |
| Shipping Weight | 147 lbs (66.7 kg) |
| Size | 120" x 216" or 245" diagonal |
| Application | Portable |
| Federal Ops Country of Origin | US |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Portable |
| Special Features | Large Venue |
| Surface | Da-Tex |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 120" x 216" Gray Drapes - Truss
36637GR$4,216.00
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 120" x 216" Black Drapes - Truss
36637$4,216.00
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 120" x 216" with Da-Mat - 87292
87292$2,296.00
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 120" x 216" with HD Progressive ReView 0.9 - 87324
87324$3,528.00
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 120" x 216" with Da-Tex - 87300
87300$3,528.00
Da-Lite Fast-Fold Skirt, 120" x 216" Gray Skirt
36784GR$1,981.60
Da-Lite Fast-Fold Skirt, 120" x 216" Black Skirt
36784$1,981.60
Questions about this part
The 87296 provides a 120" x 216" area in a 16:9 HDTV format, making it suitable for large-scale modern video presentations.
The 87296 provides a 120" x 216" area in a 16:9 HDTV format, making it suitable for large-scale modern video presentations.
How do I change the screen surface for front or rear projection?
The Fast-Fold Truss Frame allows you to interchange front and rear projection surfaces, which can be adjusted in 6" increments.
What accessories are available to enhance the look of the screen?
You can add a Drapery Presentation Kit for a professional stage-front aesthetic or use a Fast-Fold Skirt to finish the setup.
Is there a replacement surface available for the 120" x 216" frame?
Yes, replacement surfaces such as Da-Mat or HD Progressive ReView 0.9 are available specifically for this frame size.
What documentation is available for submittals and installation?
Technical details can be found in the Fast-Fold Truss Specification Sheet and the Fast-Fold Truss Instructions PDF.
