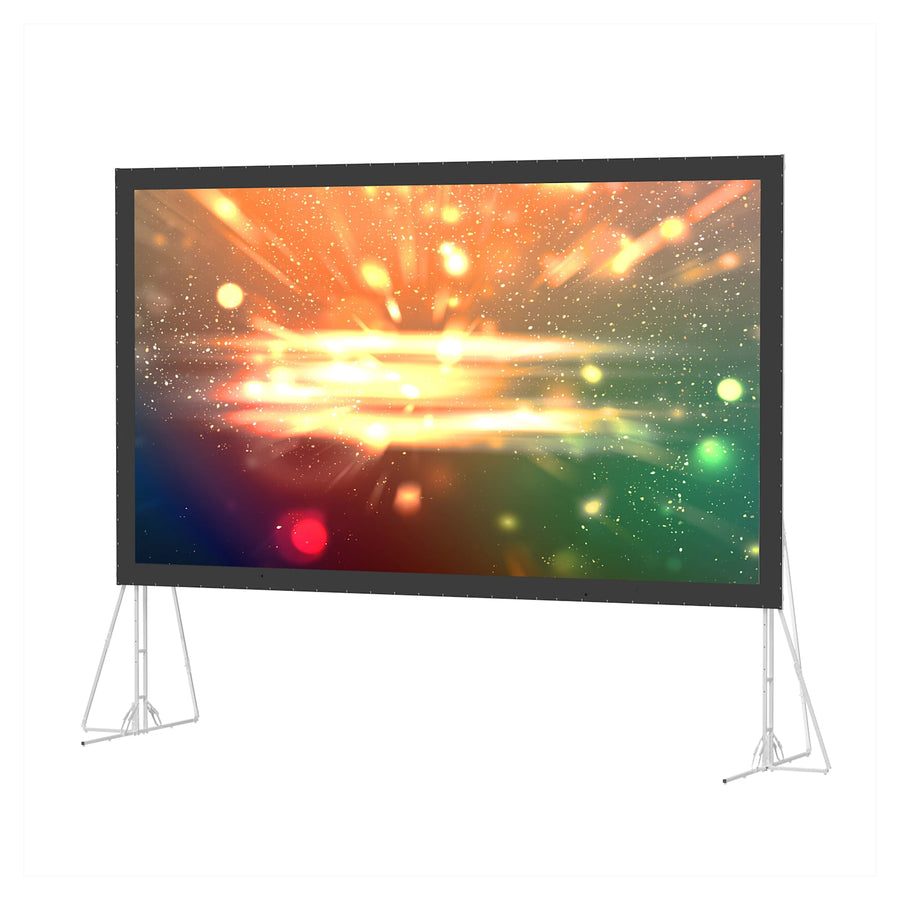

Da-Lite Fast-Fold Truss Frame Screens, 120" x 216" with DaMat - 87288
Large venue portable truss frame screen, 120" x 216" with Da-Mat surface and rugged carrying case
The Da-Lite 87288 is a portable truss frame screen designed for the rigors of rental and staging environments. This 120" x 216" (245" diagonal) system utilizes 1” welded aluminum tubing to create 6” x 1” truss frames and legs. The folding truss design allows for efficient setup and tear down using Speedy Cranks without the need for additional tools. This specific model features the Da-Mat surface in a 16:9 HDTV format, providing standard resolution for large venue presentations. The frame and legs are designed to be highly versatile, allowing for front or rear projection and adjustment in 6" increments. For transport and storage, the system includes a durable polyethylene carrying case. This TAA compliant solution is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Screen Diagonal | 245 in (622.3 cm) |
| Screen Height | 120 in (304.8 cm) |
| Shipping Weight | 147 lbs (66.7 kg) |
| Size | 120" x 216" or 245" diagonal |
| Application | Portable |
| Federal Ops Country of Origin | US |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Portable |
| Special Features | Large Venue |
| Surface | Da-Mat |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 120" x 216" Gray Drapes - Truss
36637GR$4,216.00
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 120" x 216" Black Drapes - Truss
36637$4,216.00
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 120" x 216" with Da-Mat - 87292
87292$2,296.00
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 120" x 216" with HD Progressive ReView 0.9 - 87324
87324$3,528.00
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 120" x 216" with Da-Tex - 87300
87300$3,528.00
Da-Lite Fast-Fold Skirt, 120" x 216" Gray Skirt
36784GR$1,981.60
Da-Lite Fast-Fold Skirt, 120" x 216" Black Skirt
36784$1,981.60
Questions about this part
Will the 87288 work for rear projection?
Yes, the Fast-Fold Truss Frame Screen supports both front and rear projection. The surfaces can be interchanged and adjusted in 6" increments to suit your specific venue needs.
What accessories are available for this screen size?
You can add professional aesthetics with the Drapery Presentation Kit in Black (36637) or Gray (36637GR). Skirts are also available in Black (36784) or Gray (36784GR).
Can I replace the Da-Mat surface with a different material?
Yes. Replacement surfaces for the 120" x 216" Truss Frame include HD Progressive ReView 0.9 (87324) and Da-Tex (87300).
Is this screen suitable for outdoor use?
No, this product is not intended for outdoor use. Please refer to the manufacturer's warning regarding outdoor applications.
What is the weight and transport setup for the 87288?
The system has a shipping weight of 147 lbs (66.7 kg) and includes a rugged polyethylene carrying case to facilitate easy transport between staging sites.
