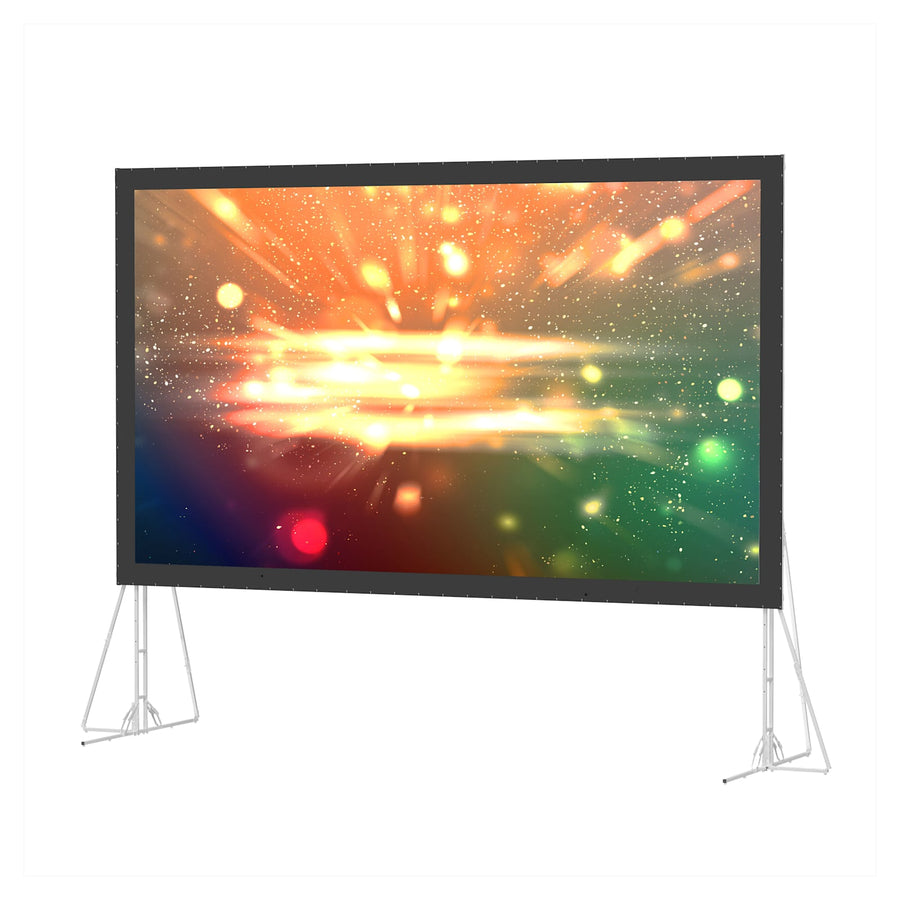

Da-Lite Fast-Fold Truss Frame Screens, 108" x 192" with HD Progressive ReView 09 - 87319
Portable 108" x 192" rear projection truss frame screen with HD Progressive ReView 0.9 surface and TAA compliance
The Da-Lite 87319 is a professional-grade portable truss frame screen designed for high-demand rental and staging environments. Measuring 108" x 192" (220" diagonal), this system is built for versatility in large venue applications. The frame is constructed from 1" x 1" welded aluminum tubing, forming 6" x 1" truss frames and legs that fold for efficient transport and setup. This specific model features the HD Progressive ReView 0.9 surface, optimized for high-resolution rear projection. The assembly uses Speedy Cranks to allow for tool-free setup and teardown, with the ability to adjust the surface height in 6" increments. For professional presentations, this screen is compatible with the Da-Lite Drapery Presentation Kit (SKU 36635 or 36635GR) and skirts (SKU 36782 or 36782GR). The entire system is TAA compliant and includes a durable polyethylene carrying case for safe transport to job sites.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 220 in (558.8 cm) |
| Screen Height | 108 in (274.3 cm) |
| Shipping Weight | 176 lbs (79.8 kg) |
| Size | 108" x 192" or 220" diagonal |
| Application | Portable |
| Federal Ops Country of Origin | US |
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
All other specifications 5
| Screen Surface Features | High Resolution |
| Screen Type | Portable |
| Special Features | Large Venue |
| Surface | HD Progressive ReView 0.9 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 108" x 192" Gray Drapes - Truss
36635GR$3,649.60
Da-Lite Heavy Duty Fast-Fold Deluxe and Truss Drapery Presentation Kit, 108" x 192" Black Drapes - Truss
36635$3,649.60
Da-Lite Fast-Fold Skirt, 108" x 192" Gray Skirt
36782GR$1,867.20
Da-Lite Fast-Fold Skirt, 108" x 192" Black Skirt
36782$1,867.20
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 108" x 192" with Da-Tex - 87299
87299$2,381.60
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 108" x 192" with HD Progressive ReView 0.9 - 87323
87323$2,381.60
Da-Lite Replacement Surfaces for HD Fast-Fold Deluxe and Fast-Fold Truss, 108" x 192" with Da-Mat - 87291
87291$1,848.00
Questions about this part
Will this screen work for rear projection?
Yes, this 87319 model is configured with an HD Progressive ReView 0.9 surface specifically designed for rear projection.
Can I add drapery to this Fast-Fold Truss Screen?
Yes, you can achieve a professional stage-front aesthetic by adding a Da-Lite Drapery Presentation Kit, such as SKU 36635 or 36635GR.
How is the frame assembled on-site?
The 1" aluminum truss frames use Speedy Cranks, which allow installers to bolt the frame together and adjust the surface height in 6" increments without tools.
What is the total size and aspect ratio of the 87319?
This screen has a 108" x 192" area with a 220" diagonal, presented in a 16:9 HDTV format.
Which replacement surfaces are compatible with this frame?
This frame is compatible with replacement surfaces including Da-Tex (SKU 87299), HD Progressive ReView 0.9 (SKU 87323), and Da-Mat (SKU 87291).
