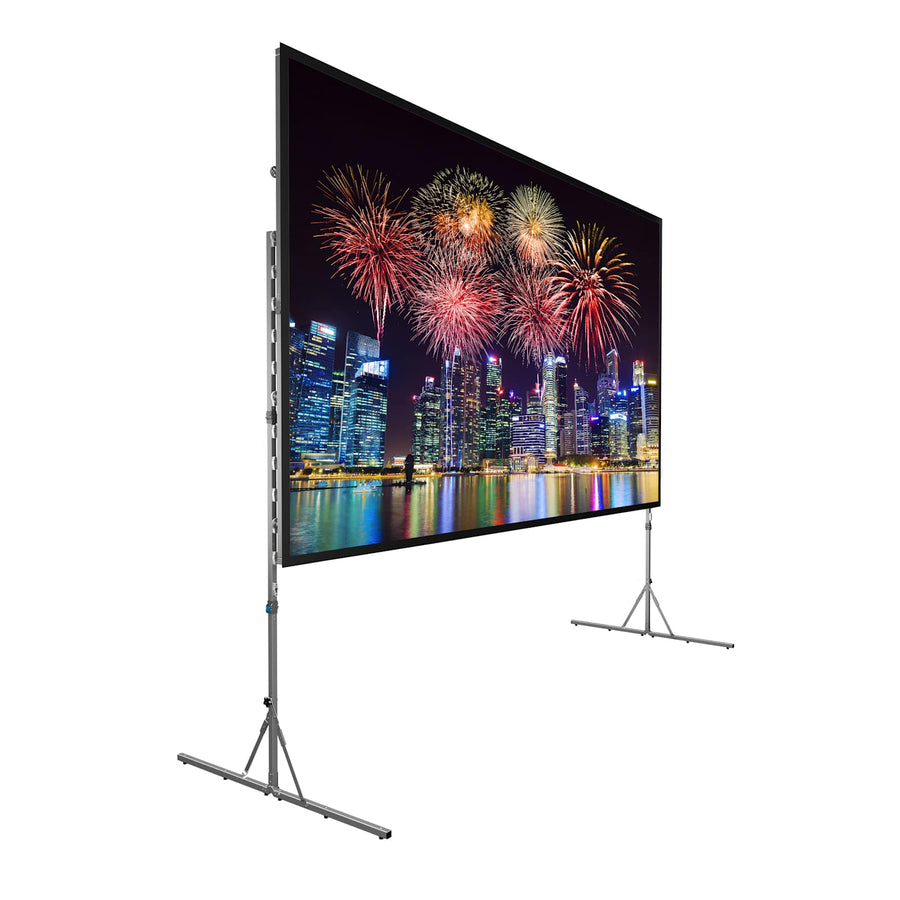

Da-Lite Fast-Fold Deluxe Screen System, 90.5 x 162.5 in HD Rental - 39310
Portable 185 inch (469.9 cm) diagonal front projection screen with HD Rental surface and 16:9 aspect ratio
The Da-Lite Fast-Fold Deluxe Screen System 39310 is engineered for demanding rental and staging applications where rapid setup and teardown are essential. This 185 in (469.9 cm) diagonal portable system utilizes an HD Rental surface, featuring an optically enhanced, foldable material designed for high-definition front projection. The surface is finished with RF welded binding and matte snap caps to ensure a clean aesthetic and increased durability. The frame and legs are constructed from 1 1/4” aluminum tubing, utilizing an intuitive leg-to-frame locking mechanism designed so that no parts are lost during assembly. To ensure long-term performance in the field, the system includes adjustable corner braces to correct frame bowing over time. This TAA compliant unit is designed for professional installers and integrators requiring a reliable, high-resolution display solution for temporary installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Screen Diagonal | 185 in (469.9 cm) |
| Screen Height | 90.5 in (229.9 cm) |
| Shipping Weight | 94 lbs (42.6 kg) |
| Size | 90.5" x 162.5" or 185" diagonal |
| Application | Portable |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Portable |
| Surface | HD Rental |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Fast-Fold Deluxe Replacement Surfaces, 90.5" x 162.5" with HD Progressive ReView 0.9 - 39319
39319$2,093.60
Da-Lite Fast-Fold Deluxe Drapery Presentation Kits, 90.5" x 162.5" - 39322KGRP
39322KGRP$3,587.20
Da-Lite Fast-Fold Deluxe Repair Kit - 36975
36975$620.80
Da-Lite Fast-Fold Deluxe Repair Kit - 89875
89875$620.80
Da-Lite Fill Strips
41298$152.00
Da-Lite Leg Saver Back Brace
89581
Da-Lite Hinged Screen Joining Clamp
89518$132.80
Da-Lite Skirt Adapter Brackets
90751
Da-Lite Fast-Fold Deluxe Drapery Presentation Kits, 90.5" x 162.5" - 39322KP
39322KP$3,587.20
Da-Lite Hook Clamps
89767$32.80
Da-Lite HD Legs
13141$752.00
Da-Lite Fill Strip Clamp
90748$28.80
Questions about this part
Is the Da-Lite 39310 suitable for high-definition video?
Yes, this system features an HD Rental surface specifically designed for high-definition front projection and high-resolution projectors.
What is included for transport and setup?
The system includes a carrying case equipped with wheels for easy mobility and an intuitive leg-to-frame locking mechanism that prevents lost parts.
Can I replace the surface on this screen?
Yes, replacement surfaces are available, including the Da-Lite Fast-Fold Deluxe Replacement Surface, 90.5" x 162.5" with HD Progressive ReView 0.9 (SKU 39319).
Does this screen include a skirt or drapery?
This SKU is the screen system; you can purchase separate skirts, such as the Da-Lite Fast-Fold Skirt in Black (SKU 39399) or Gray (SKU 39399GR).
What tools are required for installation?
The Fast-Fold Deluxe Instructions (PDF) can be used to review the proper installation and connection procedures for this system.
