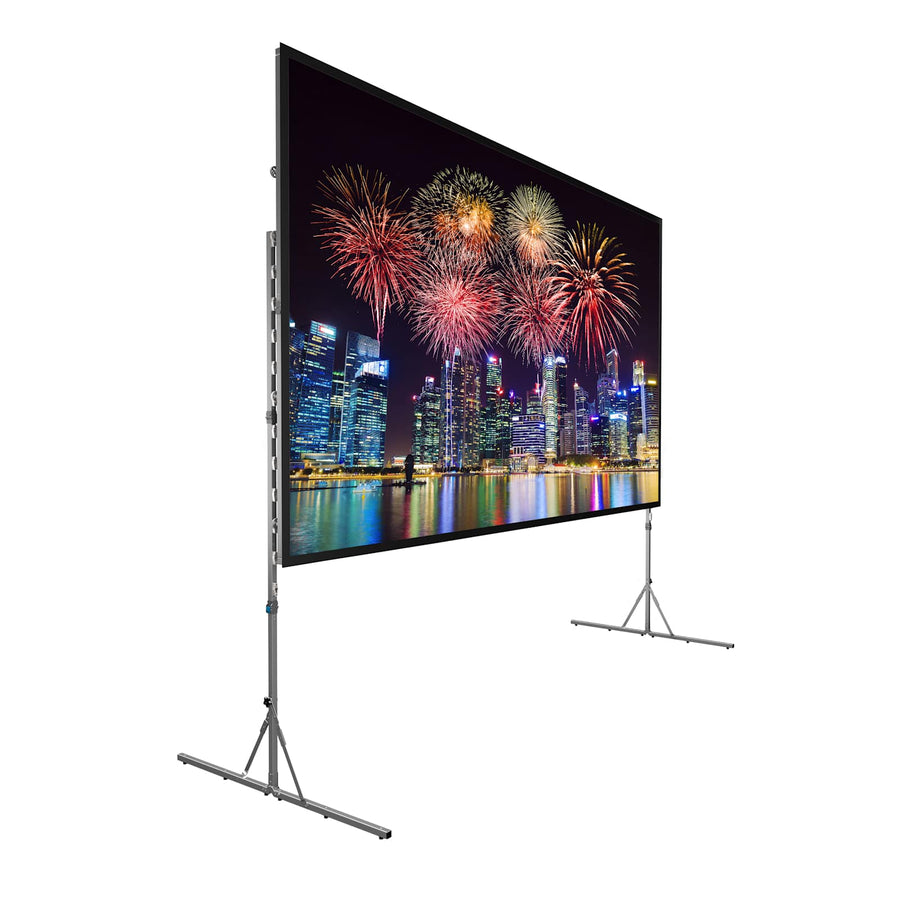

Da-Lite Fast-Fold Deluxe Screen System, 86.5 x 138.5 in Da-Tex - 38311
Portable rear projection screen with 163" diagonal Da-Tex surface and 16:10 wide aspect ratio
The Da-Lite 38311 is a portable Fast-Fold Deluxe Screen System designed for professional rental and staging applications. This 163" diagonal (163 in / 414 cm) unit is configured with a Wide 16:10 screen format, making it suitable for various modern digital projection needs. It features a Da-Tex rear projection surface which is optimized for standard resolution high-definition viewing. The frame and legs are constructed from 1 1/4” aluminum tubing, utilizing an intuitive leg-to-frame locking mechanism that eliminates the risk of losing small parts during rapid set-up or tear-down. For long-term durability in the field, the system includes adjustable corner braces to prevent frame bowing after repeated use. This TAA compliant system is built for high-frequency deployment and includes a wheeled carrying case for efficient transport between venues.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Screen Diagonal | 163 in (414 cm) |
| Screen Height | 86.5 in (219.7 cm) |
| Shipping Weight | 92 lbs (41.7 kg) |
| Size | 86.5" x 138.5" or 163" diagonal |
| Application | Portable |
| Federal Ops Country of Origin | US |
| Projection Type | Rear Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Portable |
| Surface | Da-Tex |
| Certifications | TAA |
Resources
Questions about this part
What is the screen size and aspect ratio for part 38311?
Yes, this model is specifically designed for rear projection using a Da-Tex surface. The screen size is 86.5" x 138.5", which provides a 163" diagonal with a Wide 16:10 aspect ratio.
Will this screen work for high-definition content?
The Da-Tex surface provided with this SKU is a standard resolution surface. For high-definition or 16K ready experiences, Da-Lite offers different foldable, optically enhanced surface options.
How is the frame assembled and maintained during transport?
The system uses an intuitive leg-to-frame locking mechanism designed so that no parts are lost during assembly. It includes adjustable corner braces to correct any frame bowing that occurs after heavy use.
Is this product TAA compliant?
Yes, the Da-Lite 38311 is TAA compliant and is manufactured in the US.
Which document should I use for installation instructions?
You can refer to the Fast-Fold Deluxe Instructions (PDF) for setup or the Fast-Fold Screen Surface Folding Instructions (PDF) to learn how to properly fold the fabric.
