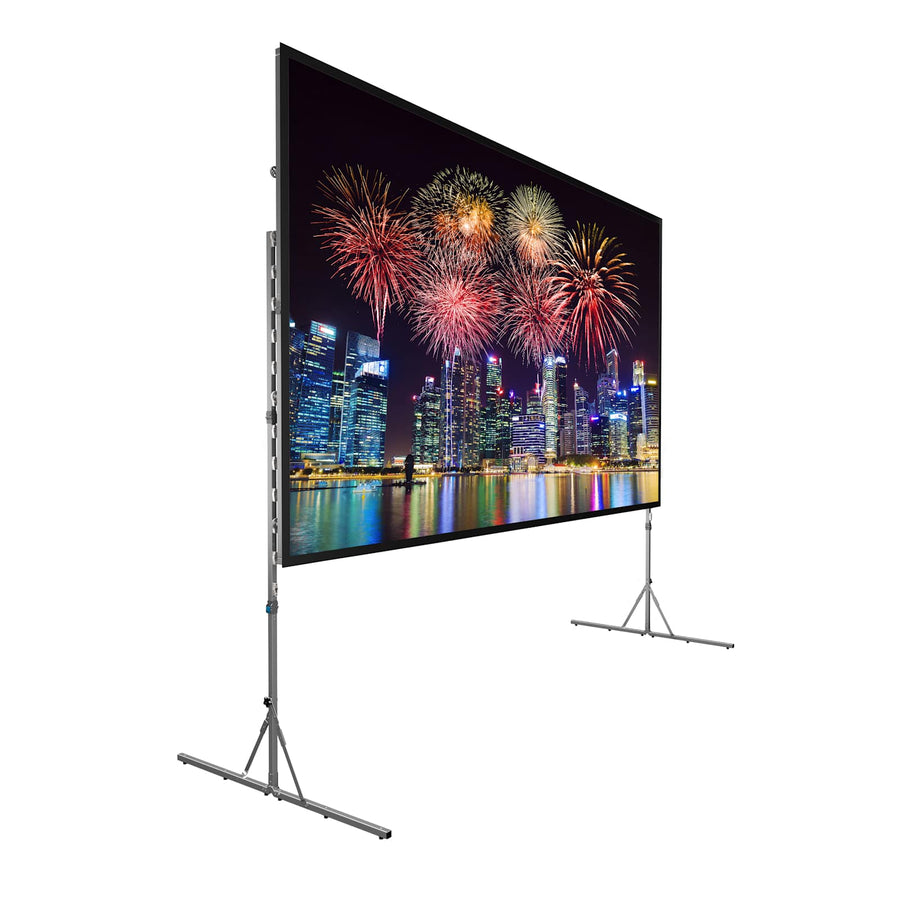

Da-Lite Fast-Fold Deluxe Screen System, 77.5" x 138.5" with HD Progressive ReView 0.9 - 88693KHD
Portable 158" diagonal rear projection screen system with HD Progressive ReView 0.9 surface and heavy-duty legs
The Da-Lite 88693KHD is a portable Fast-Fold Deluxe Screen System designed for high-performance rental and staging applications. This rear projection system features a 77.5" x 138.5" (158" diagonal) screen surface with HD Progressive ReView 0.9 technology, optimized for high-definition AV experiences. The frame and legs are constructed from 1 1/4” aluminum tubing and include a black anodized frame option upon request. This system utilizes an intuitive leg-to-frame locking mechanism that prevents the loss of individual parts during rapid setup and tear-down. For improved aesthetics and durability, the screen features RF welded binding and matte snap caps. To ensure long-term use in professional environments, an adjustable corner brace helps correct frame bowing over time. This TAA compliant system is ideal for installers needing a reliable, high-resolution solution for mobile environments and is shipped with a wheeled carrying case for efficient transport.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 158 in (401.3 cm) |
| Screen Height | 77.5 in (196.9 cm) |
| Shipping Dimensions | 50" x 18" x 13" (127 x 45.7 x 33 cm) |
| Shipping Weight | 101 lbs (45.8 kg) |
| Size | 77.5" x 138.5" or 158" diagonal |
| Application | Portable |
| Federal Ops Country of Origin | US |
| Projection Type | Rear Projection |
All other specifications 8
| Screen Format | HDTV (16:9) |
| Screen Options | Black Frame and Heavy-Duty Legs |
| Screen Surface Features | High Resolution |
| Screen Type | Portable |
| Surface | HD Progressive ReView 0.9 |
| TAA Compliant | Yes |
| UPC | 717068292659 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Fast-Fold Deluxe Repair Kit - 36975
36975$620.80
Da-Lite Fast-Fold Deluxe Repair Kit - 89875
89875$620.80
Da-Lite Fill Strips
41298$152.00
Da-Lite Leg Saver Back Brace
89581
Da-Lite Hinged Screen Joining Clamp
89518$132.80
Da-Lite Skirt Adapter Brackets
90751
Da-Lite Fast-Fold Deluxe Drapery Presentation Kits, 77.5" x 138.5" - 36524P
36524P$3,155.20
Da-Lite Fast-Fold Deluxe Drapery Presentation Kits, 77.5" x 138.5" - 36524GRP
36524GRP$3,155.20
Da-Lite Fill Strip Clamp
90748$28.80
Da-Lite Straight Screen Joining Clamp
90749$46.40
Da-Lite Fast-Fold Skirt, 77.5" x 138.5" Black Skirt
36734$883.20
Da-Lite Fast-Fold Skirt, 77.5" x 138.5" Gray Skirt
36734GR$883.20
Questions about this part
Will this Da-Lite 88693KHD fit my rear projection setup?
Yes, this is a rear projection system with a 77.5" x 138.5" (158" diagonal) screen format of 16:9 HDTV. It is specifically optimized for high-definition AV experiences using the HD Progressive ReView 0.9 surface.
What is required to transport the 88693KHD system?
The system includes a wheeled carrying case to facilitate easier transport for rental and staging applications. The total shipping weight for the unit is 101 lbs (45.8 kg).
What accessories are available for this screen system?
Compatible accessories include Da-Lite Fast-Fold Deluxe replacement surfaces (SKU 90831 or 90809), drapery presentation kits (SKU 36524P), and various repair kits like the 36975 or 89875.
How does the locking mechanism work on this Fast-Fold screen?
The system uses an intuitive leg-to-frame locking mechanism designed to prevent parts from being lost during assembly. Note that this is different from older Speedy Crank designs launched before July 2019.
Is the Da-Lite 88693KHD TAA compliant?
Yes, this product is TAA compliant, making it suitable for federal operations and government contracts.
