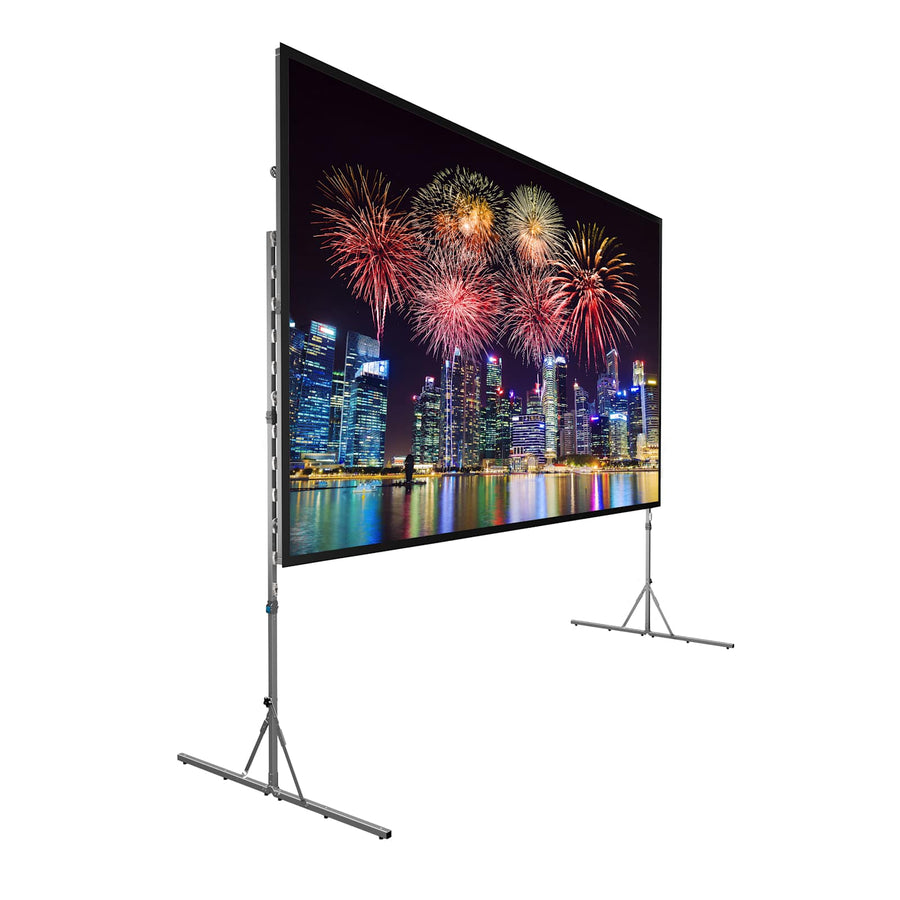

Da-Lite Fast-Fold Deluxe Screen System, 77.5" x 138.5" with HD Progressive ReView 0.9 - 88693HD
158" diagonal Fast-Fold Deluxe rear projection screen with 77.5" x 138.5" HD Progressive ReView 0.9 surface
The 88693HD is a 158" diagonal Fast-Fold Deluxe Screen System designed for portable rental and staging applications. This rear projection screen features an HD Progressive ReView 0.9 surface in a 16:9 HDTV format, providing high-resolution visual performance for high-definition AV experiences. The frame is constructed from 1 1/4” aluminum tubing, and the system utilizes an intuitive leg-to-frame locking mechanism to prevent part loss during rapid setup and teardown. This specific model is TAA compliant and features an adjustable corner brace to maintain frame integrity and prevent bowing after extended use. For clean aesthetics, the surface includes RF welded binding and matte snap caps. This portable system is built for efficiency across all skill levels, making it a reliable choice for professional staging. The unit ships with a wheeled carrying case to facilitate transport between job sites.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 158 in (401.3 cm) |
| Screen Height | 77.5 in (196.9 cm) |
| Shipping Dimensions | 50" x 18" x 13" (127 x 45.7 x 33 cm) |
| Shipping Weight | 101 lbs (45.8 kg) |
| Size | 77.5" x 138.5" or 158" diagonal |
| Application | Portable |
| Federal Ops Country of Origin | US |
| Projection Type | Rear Projection |
All other specifications 8
| Screen Format | HDTV (16:9) |
| Screen Options | Heavy-Duty Legs |
| Screen Surface Features | High Resolution |
| Screen Type | Portable |
| Surface | HD Progressive ReView 0.9 |
| TAA Compliant | Yes |
| UPC | 717068801127 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Fast-Fold Deluxe Replacement Surfaces, 77.5" x 138.5" with Da-Tex - 90809
90809$1,794.40
Da-Lite Fast-Fold Deluxe Drapery Presentation Kits, 77.5" x 138.5" - 36524KP
36524KP$3,299.20
Da-Lite Fast-Fold Deluxe Replacement Surfaces, 77.5" x 138.5" with HD Progressive ReView 0.9 - 90831
90831$1,794.40
Da-Lite Fast-Fold Deluxe Replacement Surfaces, 77.5" x 138.5" with HD Rental - 34228
34228$1,097.60
Da-Lite Fast-Fold Deluxe Repair Kit - 36975
36975$620.80
Da-Lite Fast-Fold Deluxe Repair Kit - 89875
89875$620.80
Da-Lite Fill Strips
41298$152.00
Da-Lite Leg Saver Back Brace
89581
Da-Lite Hinged Screen Joining Clamp
89518$132.80
Da-Lite Skirt Adapter Brackets
90751
Da-Lite Fast-Fold Deluxe Drapery Presentation Kits, 77.5" x 138.5" - 36524KGRP
36524KGRP$3,299.20
Da-Lite Fill Strip Clamp
90748$28.80
Questions about this part
Will this screen fit my projector setup?
The 88693HD is designed for rear projection applications using an HD Progressive ReView 0.9 surface.
Is this screen compatible with the older Speedy Cranks design?
No, this model uses a wheel and keyway leg-to-frame locking design launched July 15, 2019, which is not compatible with the former Speedy Cranks style frame and legs.
What do I need to buy to add a skirt to this screen?
You can add a Da-Lite Fast-Fold Skirt (available in Black SKU 36734 or Gray SKU 36734GR) using the appropriate Skirt Adapter Brackets (SKU 90751).
What if I need to replace the screen surface later?
Replacement surfaces are available, including the HD Progressive ReView 0.9 version (SKU 90831) or the HD Rental surface (SKU 34228).
How is the frame maintained over long-term use?
The system includes an adjustable corner brace designed to correct frame bowing and extend the longevity of the aluminum tubing.
