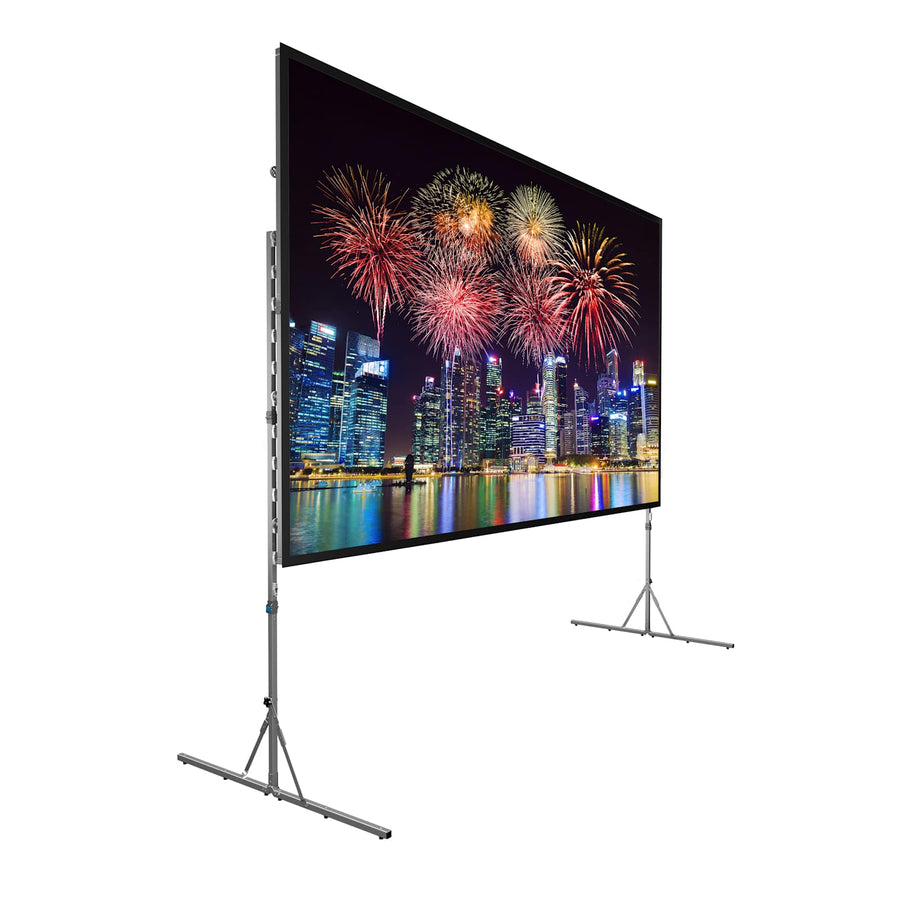

Da-Lite Fast-Fold Deluxe Screen System, 77.5" x 138.5" with Da-Tex - 88630KHD
Portable rear projection screen system with Da-Tex surface, 158" diagonal, and heavy-duty legs
The Da-Lite 88630KHD Fast-Fold Deluxe Screen System is a portable rear projection solution engineered for high-demand rental and staging environments. This 158" diagonal (401.3 cm) system features a 77.5" x 138.5" (196.9 x 148.6 cm) screen in a 16:9 HDTV format. It is equipped with a Da-Tex surface, providing standard resolution optimized for rear projection. The system utilizes a 1 1/4" aluminum tubing frame and legs, featuring a black anodized finish option upon request. Assembly is streamlined by an intuitive leg-to-frame locking mechanism designed to prevent lost parts during rapid set-up and tear-down. To ensure long-term structural integrity, the frame includes adjustable corner braces to correct any bowing over time. This TAA compliant unit is ideal for temporary installations where professional aesthetics and durability are required, utilizing RF welded binding and matte snap caps for a clean, professional appearance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 158 in (401.3 cm) |
| Screen Height | 77.5 in (196.9 cm) |
| Shipping Dimensions | 50" x 18" x 13" (127 x 45.7 x 33 cm) |
| Shipping Weight | 101 lbs (45.8 kg) |
| Size | 77.5" x 138.5" or 158" diagonal |
| Application | Portable |
| Federal Ops Country of Origin | US |
| Projection Type | Rear Projection |
All other specifications 8
| Screen Format | HDTV (16:9) |
| Screen Options | Black Frame and Heavy-Duty Legs |
| Screen Surface Features | Standard Resolution |
| Screen Type | Portable |
| Surface | Da-Tex |
| TAA Compliant | Yes |
| UPC | 717068063693 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Fast-Fold Deluxe Repair Kit - 36975
36975$620.80
Da-Lite Fast-Fold Deluxe Repair Kit - 89875
89875$620.80
Da-Lite Fill Strips
41298$152.00
Da-Lite Leg Saver Back Brace
89581
Da-Lite Hinged Screen Joining Clamp
89518$132.80
Da-Lite Skirt Adapter Brackets
90751
Da-Lite Fast-Fold Deluxe Drapery Presentation Kits, 77.5" x 138.5" - 36524P
36524P$3,155.20
Da-Lite Fast-Fold Deluxe Drapery Presentation Kits, 77.5" x 138.5" - 36524GRP
36524GRP$3,155.20
Da-Lite Fill Strip Clamp
90748$28.80
Da-Lite Straight Screen Joining Clamp
90749$46.40
Da-Lite Fast-Fold Skirt, 77.5" x 138.5" Black Skirt
36734$883.20
Da-Lite Fast-Fold Skirt, 77.5" x 138.5" Gray Skirt
36734GR$883.20
Questions about this part
What is the purpose of the Da-Tex surface in this model?
The Da-Tex surface is a specialized material designed specifically for rear projection applications, providing optimal light transmission and clarity for standard resolution setups.
Does this screen system come with a carrying case?
Yes, this Fast-Fold Deluxe system includes a wheeled carrying case to facilitate easier transport and protection during staging and rental applications.
Is this 88630KHD model compatible with older Fast-Fold legs?
No, this model uses a wheel and keyway leg-to-frame locking mechanism. It is not compatible with older Speedy Crank leg and frame designs.
What accessories are available for the 77.5" x 138.5" Fast-Fold Deluxe?
You can add various accessories such as Da-Lite Skirt Adapters (90751), Drapery Presentation Kits (36524P), or replacement surfaces like the HD Rental (34228).
Can I replace the Da-Tex surface if it gets damaged?
Yes, replacement surfaces for this specific 77.5" x 138.5" size are available, including the HD Progressive ReView 0.9 (90831) and the HD Rental (34228).
