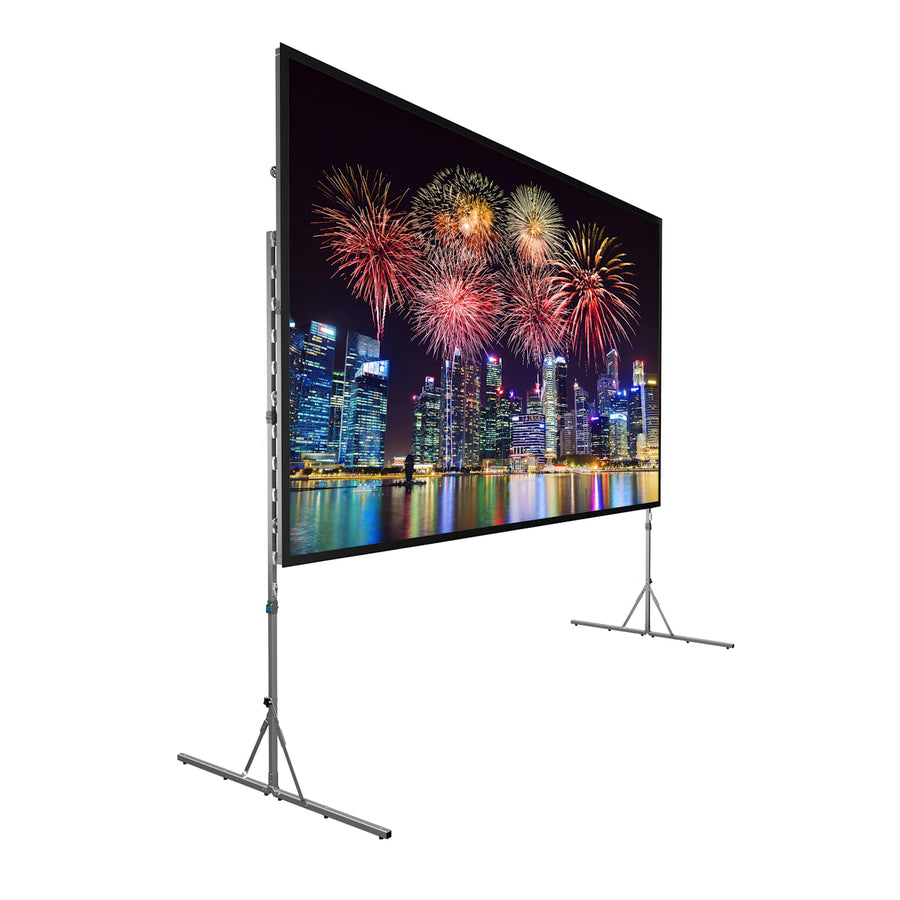

Da-Lite Fast-Fold Deluxe Screen System, 71.5 x 114.5 in Da-Tex - 38310KN
Portable 135 inch rear projection screen with Da-Tex surface and 16:10 Wide format for staging applications
The Da-Lite 38310KN is a portable Fast-Fold Deluxe Screen System designed specifically for rental and staging applications. This 135 inch (342.9 cm) diagonal system features a 71.5 in (181.6 cm) height and a 114.5 in width, providing a Wide 16:10 screen format. The surface is equipped with Da-Tex for standard resolution rear projection. The frame and legs are constructed from 1 1/4” aluminum tubing, utilizing an intuitive leg-to-frame locking mechanism that eliminates loose parts during setup. For improved longevity, the system includes adjustable corner braces to correct frame bowing over time. This TAA compliant system is designed for efficient setup and tear-down by installers at any skill level. Note that this model features a wheel and keyway leg-to-frame locking design, which is incompatible with older Speedy Crank frame and leg assemblies.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 135 in (342.9 cm) |
| Screen Height | 71.5 in (181.6 cm) |
| Shipping Weight | 38 lbs (17.2 kg) |
| Size | 71.5" x 114.5" or 135" diagonal |
| Application | Portable |
| Federal Ops Country of Origin | US |
| Projection Type | Rear Projection |
| Screen Format | Wide (16:10) |
All other specifications 5
| Screen Options | Black Frame and No Case and No Legs |
| Screen Surface Features | Standard Resolution |
| Screen Type | Portable |
| Surface | Da-Tex |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Fast-Fold Deluxe Repair Kit - 36975
36975$620.80
Da-Lite Fast-Fold Deluxe Repair Kit - 89875
89875$620.80
Da-Lite Fill Strips
41298$152.00
Da-Lite Leg Saver Back Brace
89581
Da-Lite Hinged Screen Joining Clamp
89518$132.80
Da-Lite Skirt Adapter Brackets
90751
Da-Lite Fast-Fold Deluxe Drapery Presentation Kits, 71.5" x 114.5" - 39907P
39907P$2,918.40
Da-Lite Fast-Fold Deluxe Drapery Presentation Kits, 71.5" x 114.5" - 39907GRP
39907GRP$2,918.40
Da-Lite Hook Clamps
89767$32.80
Da-Lite HD Legs
13141$752.00
Da-Lite Fill Strip Clamp
90748$28.80
Da-Lite Straight Screen Joining Clamp
90749$46.40
Questions about this part
Will this Da-Lite 38310KN screen fit my rear projection setup?
Yes, it is designed for rear projection using a Da-Tex surface in a 16:10 Wide format, measuring 71.5 in x 114.5 in.
What is required to complete the setup of this screen system?
This SKU is sold as a screen with no case and no legs included. You will need to purchase compatible legs and a carrying case separately.
How does the locking mechanism work on the Fast-Fold Deluxe?
It uses an intuitive leg-to-frame locking mechanism with a wheel and keyway design, specifically engineered to ensure no parts are lost during assembly.
Is the 38310KN compatible with older Speedy Crank legs?
No, the wheel and keyway leg-to-frame locking design used here is not compatible with older style frames and legs featuring Speedy Cranks.
Which document should I use for submittals?
You can refer to the Fast-Fold Deluxe Specification Sheet (PDF) for technical data or the CSI 3-Part Specifications for formal project submittals.
