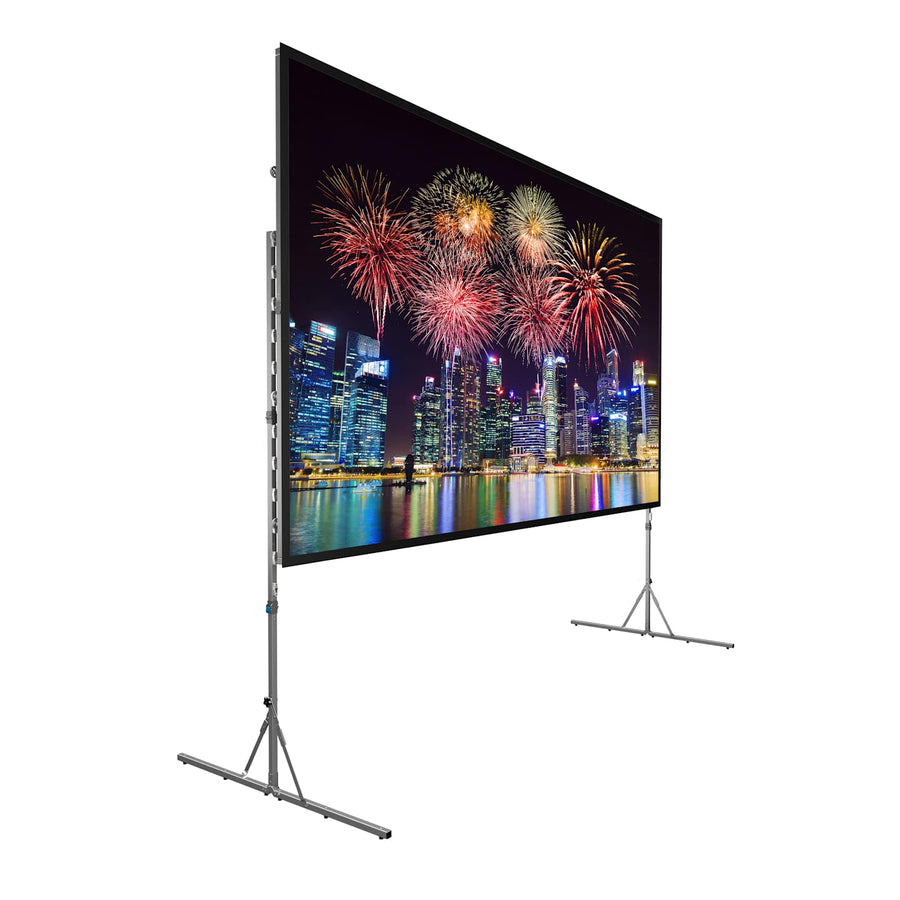

Da-Lite Fast-Fold Deluxe Screen System, 66.5 x 90.5 in HD Rental - 88612
Portable 4:3 video projection screen with an HD Rental foldable surface, measuring 66.5 x 90.5 inches.
The Da-Lite 88612 is a portable Fast-Fold Deluxe Screen System designed for high-resolution rental and staging applications. This 111 in (281.9 cm) diagonal screen features a 66.5 x 90.5 in (168.9 x 229.9 cm) format optimized for 4:3 video projection. The system utilizes an HD Rental surface, which is a foldable, optically enhanced material designed for high-definition AV experiences. Construction includes 1 1/4” aluminum tubing for the frame and legs, utilizing an intuitive leg-to-frame locking mechanism that prevents loss of small parts during rapid set-up and tear-down. The surface features RF (radio frequency) welded binding and matte snap caps for a professional aesthetic and increased durability. For long-term use, the adjustable corner braces help prevent frame bowing. This TAA compliant system is built for mobile environments and includes a wheeled carrying case for efficient transport.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Screen Diagonal | 111 in (281.9 cm) |
| Screen Height | 66.5 in (168.9 cm) |
| Shipping Weight | 71 lbs (32.2 kg) |
| Size | 66.5" x 90.5" or 111" diagonal |
| Application | Portable |
| Federal Ops Country of Origin | US |
| Projection Type | Front Projection |
| Screen Format | Video (4:3) |
| Screen Surface Features | High Resolution |
| Screen Type | Portable |
| Surface | HD Rental |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Fast-Fold Skirt, 66.5" x 90.5" Black Skirt
36725$632.80
Da-Lite Fast-Fold Deluxe Repair Kit - 36975
36975$620.80
Da-Lite Fast-Fold Deluxe Repair Kit - 89875
89875$620.80
Da-Lite Fill Strips
41298$152.00
Da-Lite Leg Saver Back Brace
89581
Da-Lite Hinged Screen Joining Clamp
89518$132.80
Da-Lite Skirt Adapter Brackets
90751
Da-Lite Fast-Fold Deluxe Drapery Presentation Kits, 66.5" x 90.5" - 36515KP
36515KP$2,757.60
Da-Lite Fast-Fold Deluxe Drapery Presentation Kits, 66.5" x 90.5" - 36515KGRP
36515KGRP$2,757.60
Da-Lite Hook Clamps
89767$32.80
Da-Lite HD Legs
13141$752.00
Da-Lite Fill Strip Clamp
90748$28.80
Questions about this part
Will this screen fit my 4:3 projection setup?
Yes, the 88612 is specifically configured with a 66.5 x 90.5 in (168.9 x 229.9 cm) area in a 4:3 video format.
What is the difference between this and older Fast-Fold models?
This model uses a wheel and keyway leg-to-frame locking design, which is incompatible with older Speedy Crank frames and legs.
What accessories are compatible with the 88612?
You can add a black or gray Fast-Fold Skirt (SKU 36725 or 36725GR), drapery presentation kits (SKU 36515KP), or replacement surfaces like Da-Tex (SKU 90812).
How is the screen surface maintained and serviced?
The system features RF welded binding and an adjustable corner brace to correct bowing; replacement surfaces are available under SKU 34219.
Is this Da-Lite screen TAA compliant?
Yes, this product is TAA compliant and manufactured in the US.
